M30
(12V LED, 120V LED/Metal Halide)

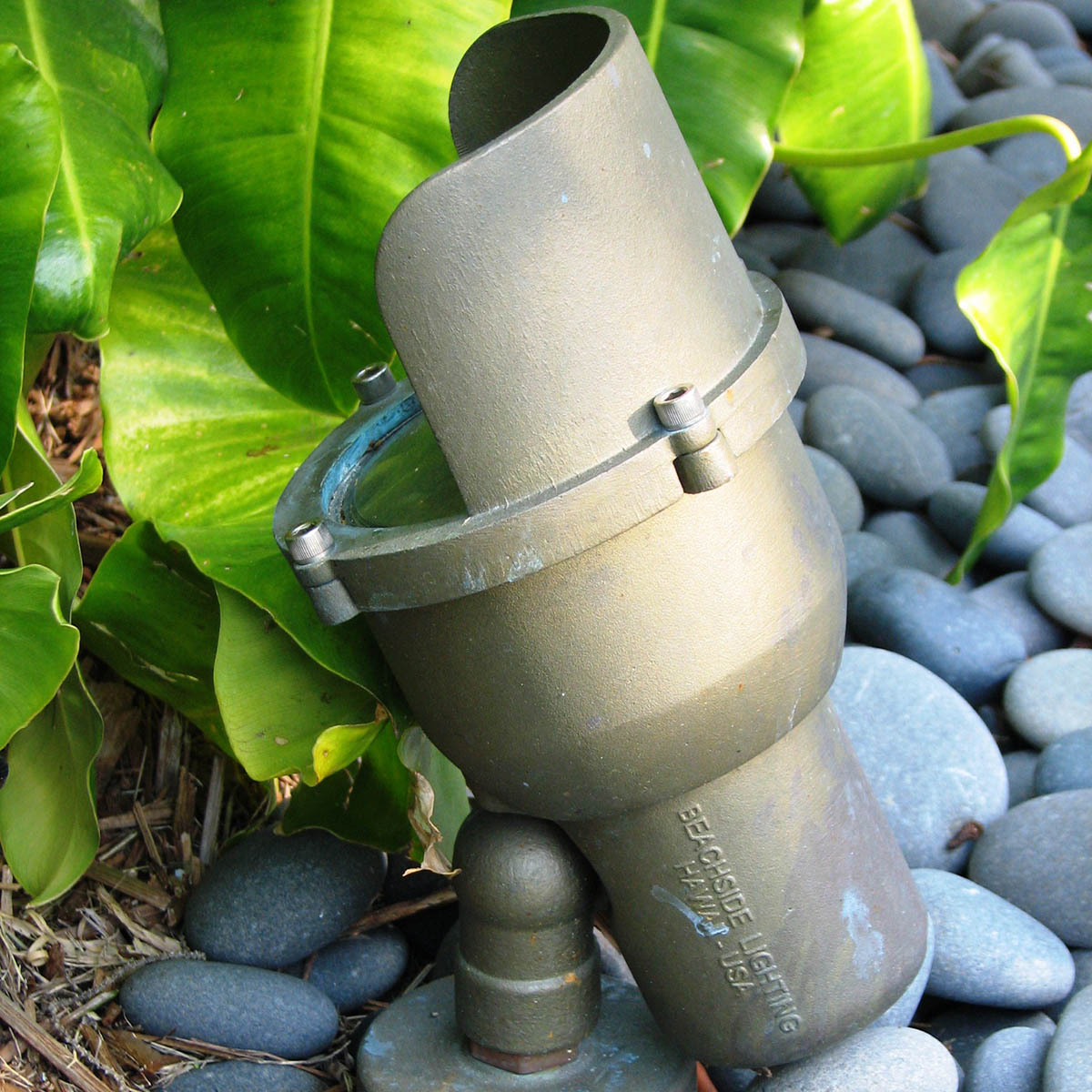

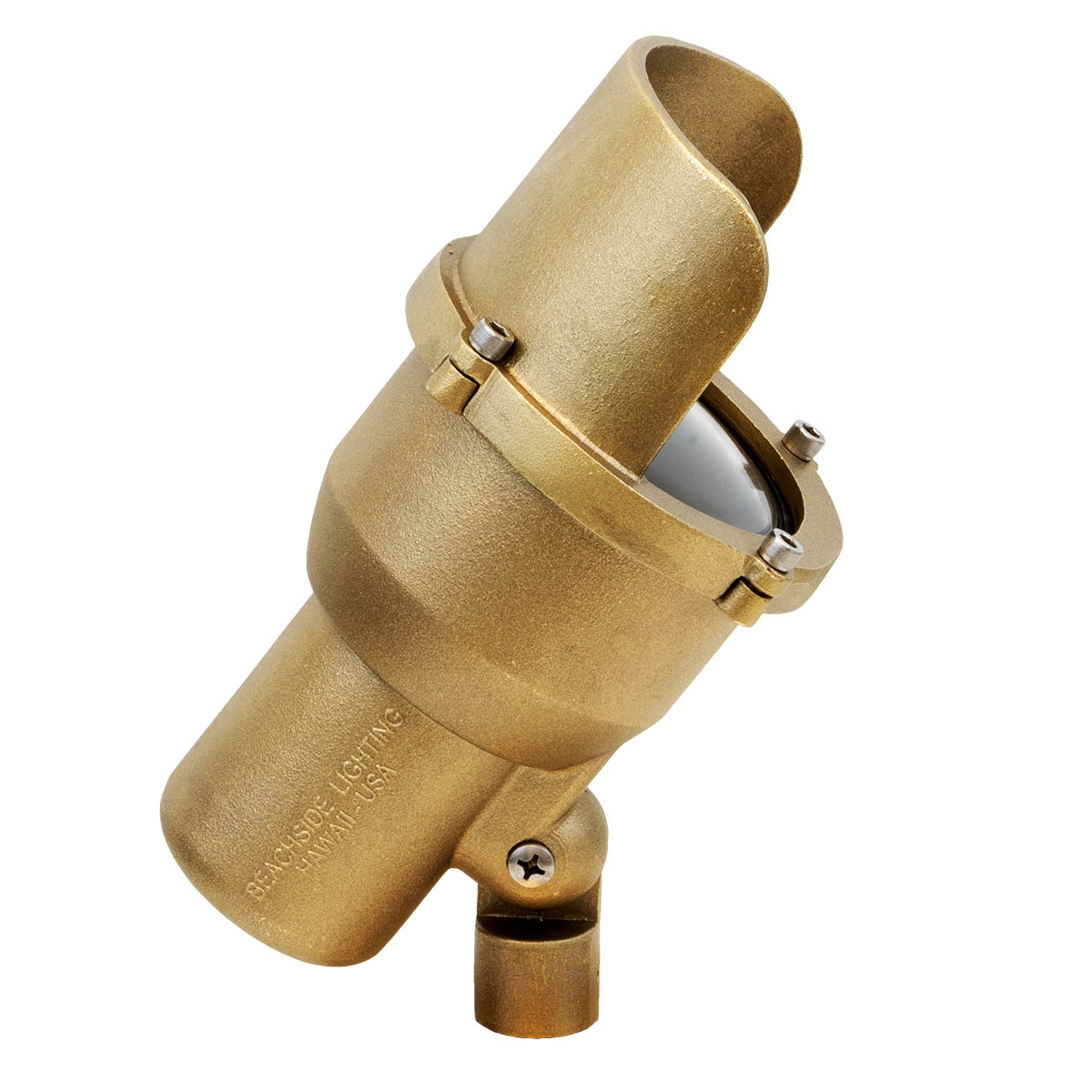

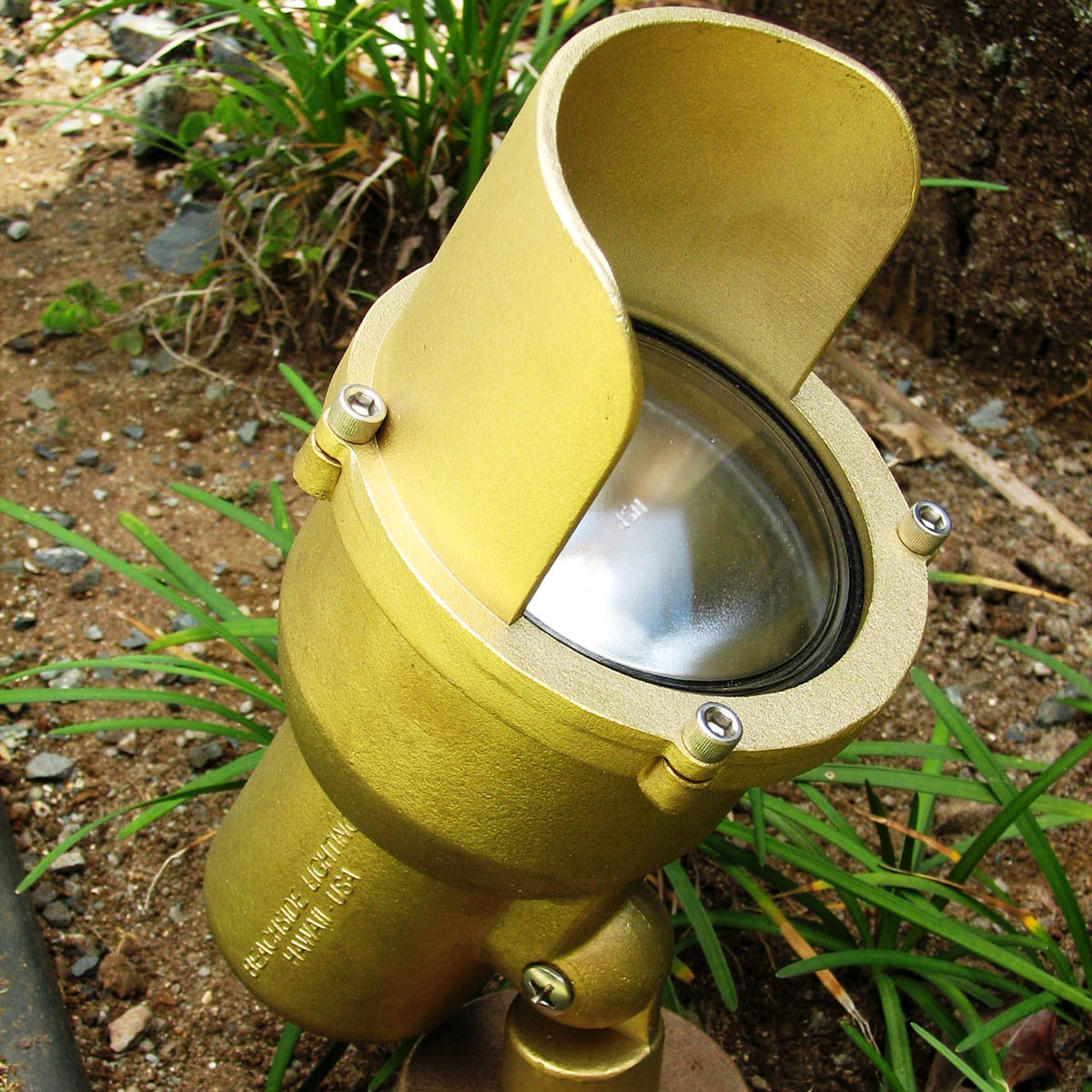

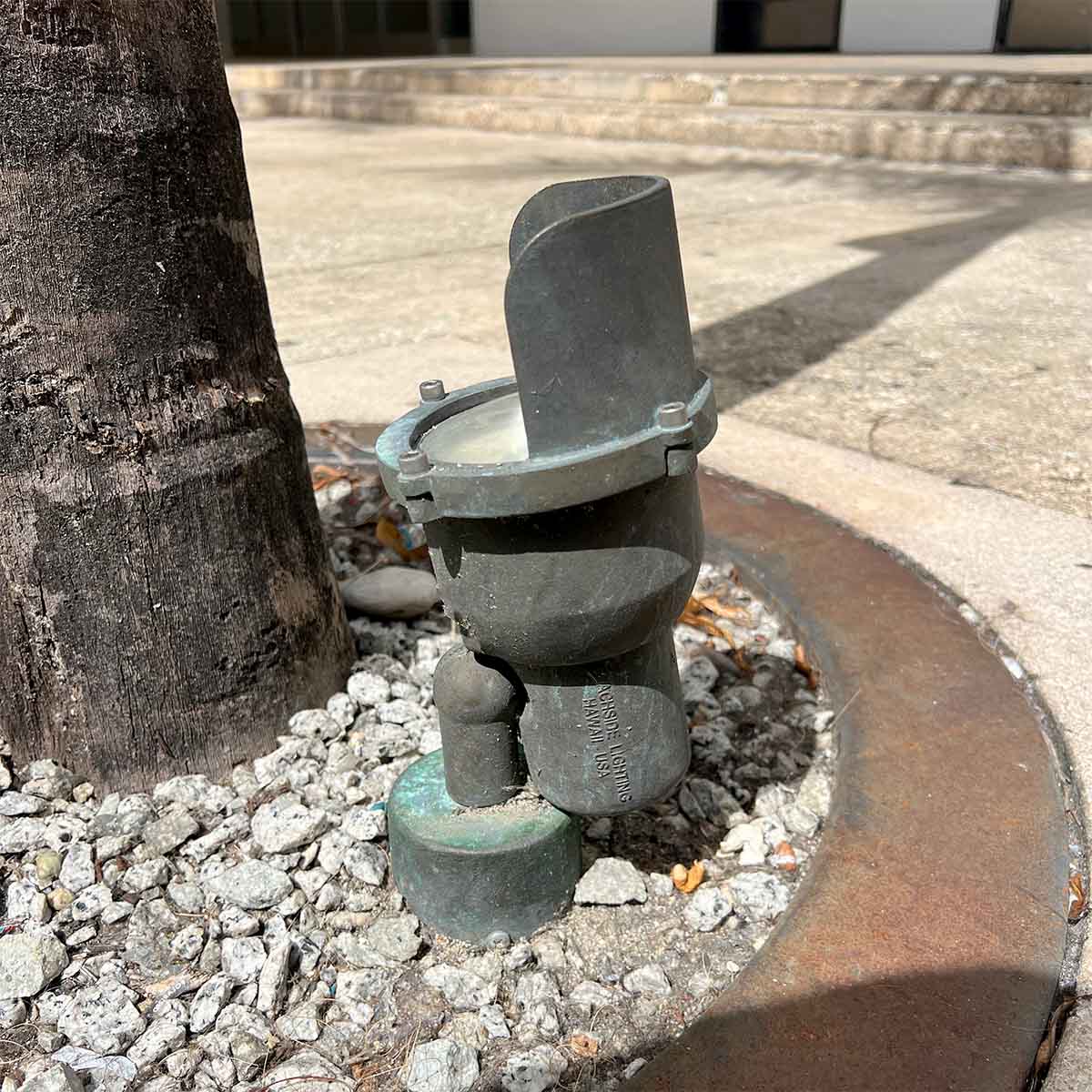

The M30 is a rugged, cast brass directional luminaire.
- Remote transformer required for 12V.
- Durable construction: all cast brass components
- CSA Listed to US and Canadian safety standards, file # 190030
| Voltage | 12V, 120V |
| Lamps | MR16 LED, PAR30L LED & Metal Halide |
| CCT | 3000K |
| Dimensions | 9.1″ x 4.8″ dia. (23 x 12.3 cm) |
Specifications
12V Instructions
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt GU5.3 MR16 LED
5- & 7-Watt 12V GU5.3 MR16 (Dauer) Information with Dimmer / Transformer Compatibility
8-Watt 12V GU5.3 MR16 (Soraa) Information with Dimmer / Transformer Compatibility
GU5.3 MR16 LED • Warm White (3000K)
| 5W-SP | 5 Watt | 15° spot |
| 5W-NFL | 5 Watt | 25° narrow flood |
| 5W-FL | 5 Watt | 40° flood |
| 5W-FL/60 | 5 Watt | 60° flood |
| 5W-WFL | 5 Watt | 100° flood |
| 7W-NFL | 7 Watt | 25° narrow flood |
| 7W-FL | 7 Watt | 40° flood |
| 7W-WFL | 7 Watt | 60° wide flood |
| 8W-SP | 8 Watt | 10° spot |
| 8W-NFL | 8 Watt | 25° narrow flood |
| 8W-FL | 8 Watt | 36° flood |
PAR30L LED • E26 medium screw base • Warm White (3000K)
| 14PAR30SP | 14 Watt | 9° spot |
| 14PAR30NFL | 14 Watt | 25° narrow flood |
| 14PAR30FL | 14 Watt | 36° flood |
| 14PAR30WFL | 14 Watt | 60° wide flood |
PAR30L Metal Halide • E26 medium screw base
| MH70PAR30SP | 70 Watt | 10° spot |
| MH70PAR30NFL | 70 Watt | 30° narrow flood |
| GS2 | Heavy duty ground spike |
| GS2BC | Heavy duty ground spike with cast brass cap |
| JB | Cast brass junction box |
| TMJB | Brass, tree-mounted junction box, single fixture mount; stainless steel strap |
| TMJBX | Brass, tree-mounted junction box, single fixture mount; stainless steel screws |
| RB | In-grade, remote Metal Halide ballast (for Metal Halide applications only) |
| SB | Above-grade, remote Metal Halide ballast (for Metal Halide applications only) |
