MB-Series Bollards
(12/120/230V LED Multi-Louver)

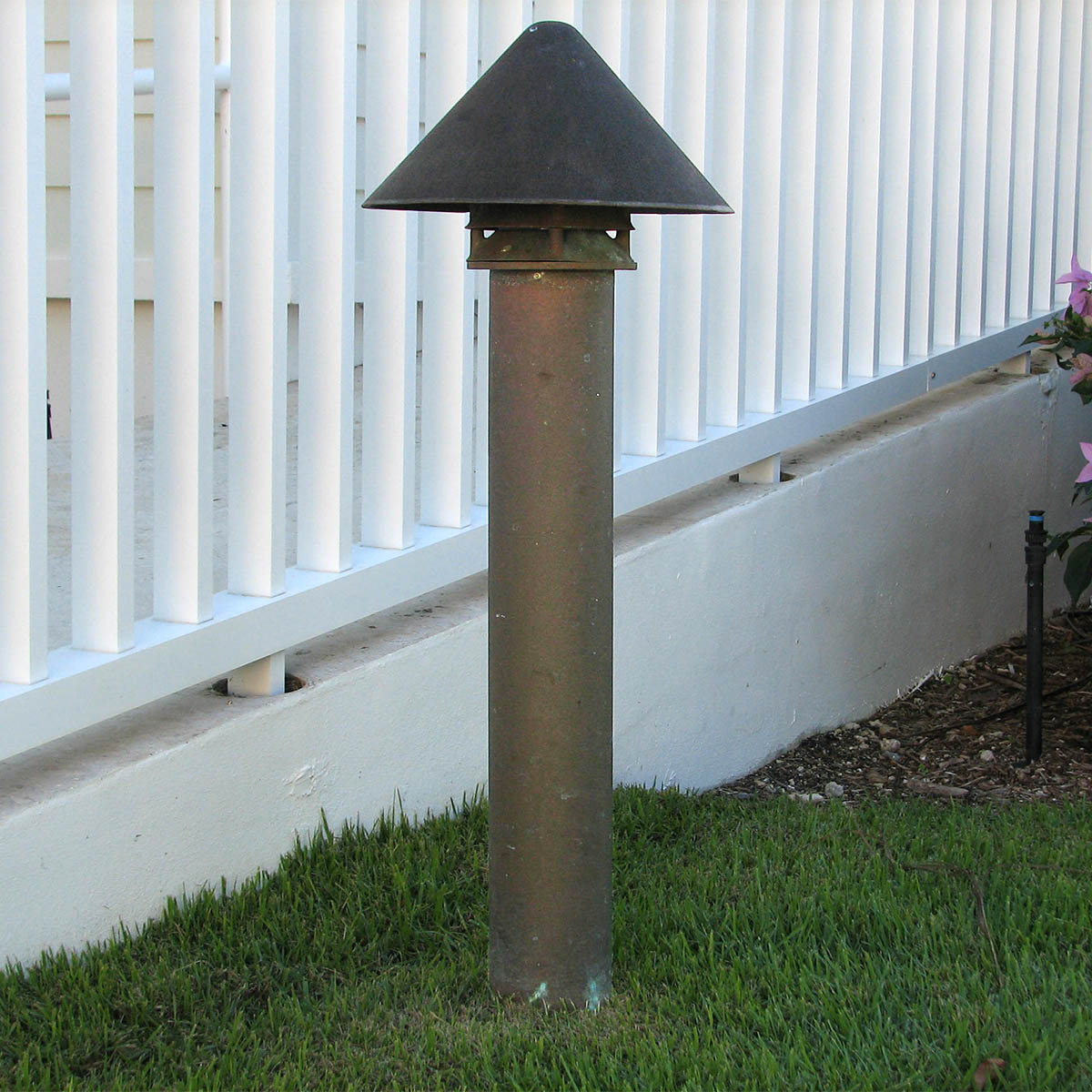

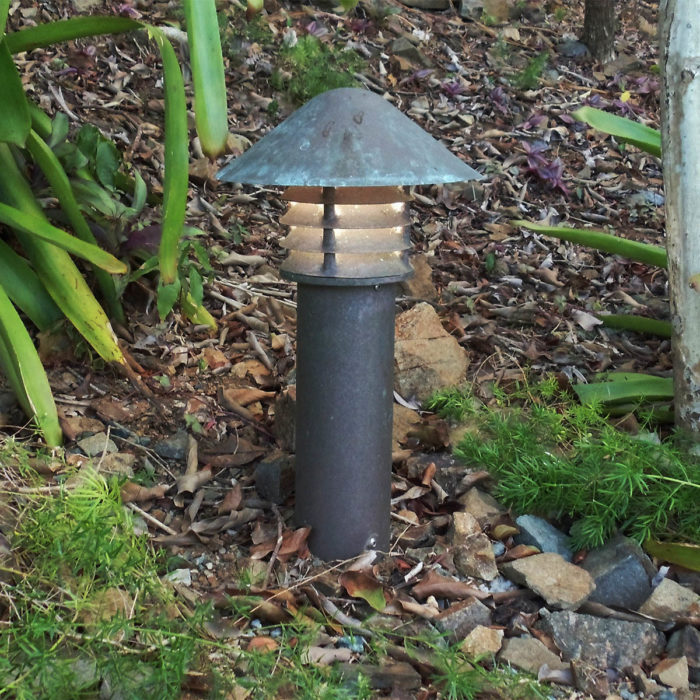

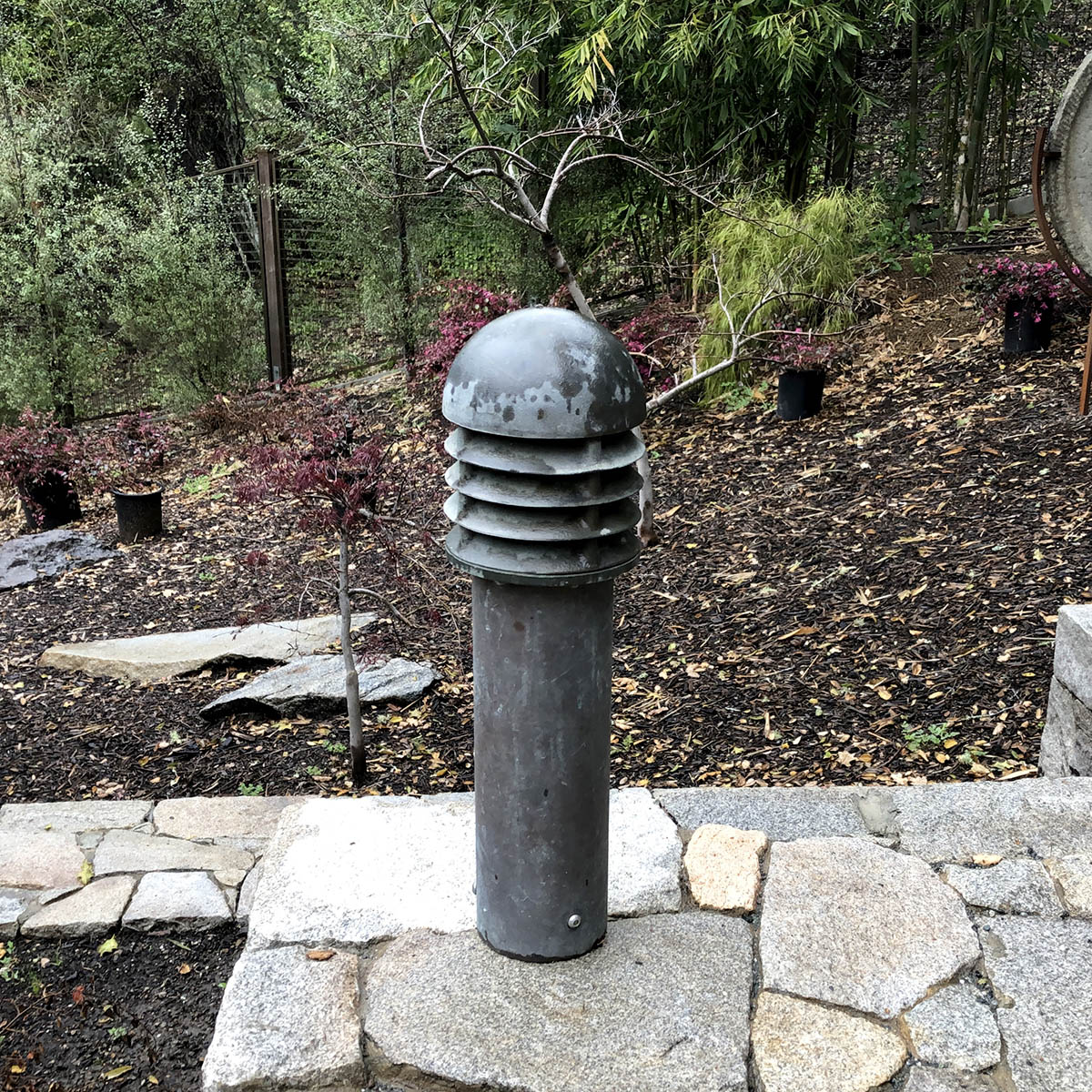

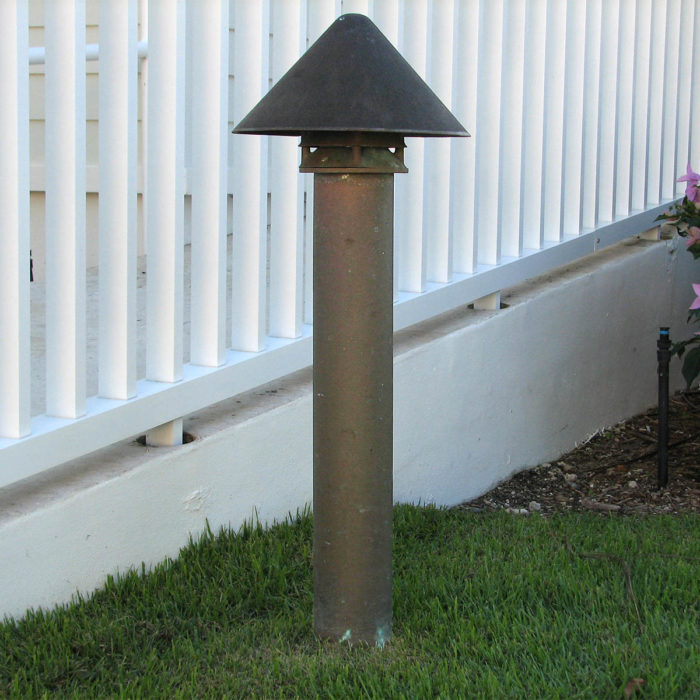

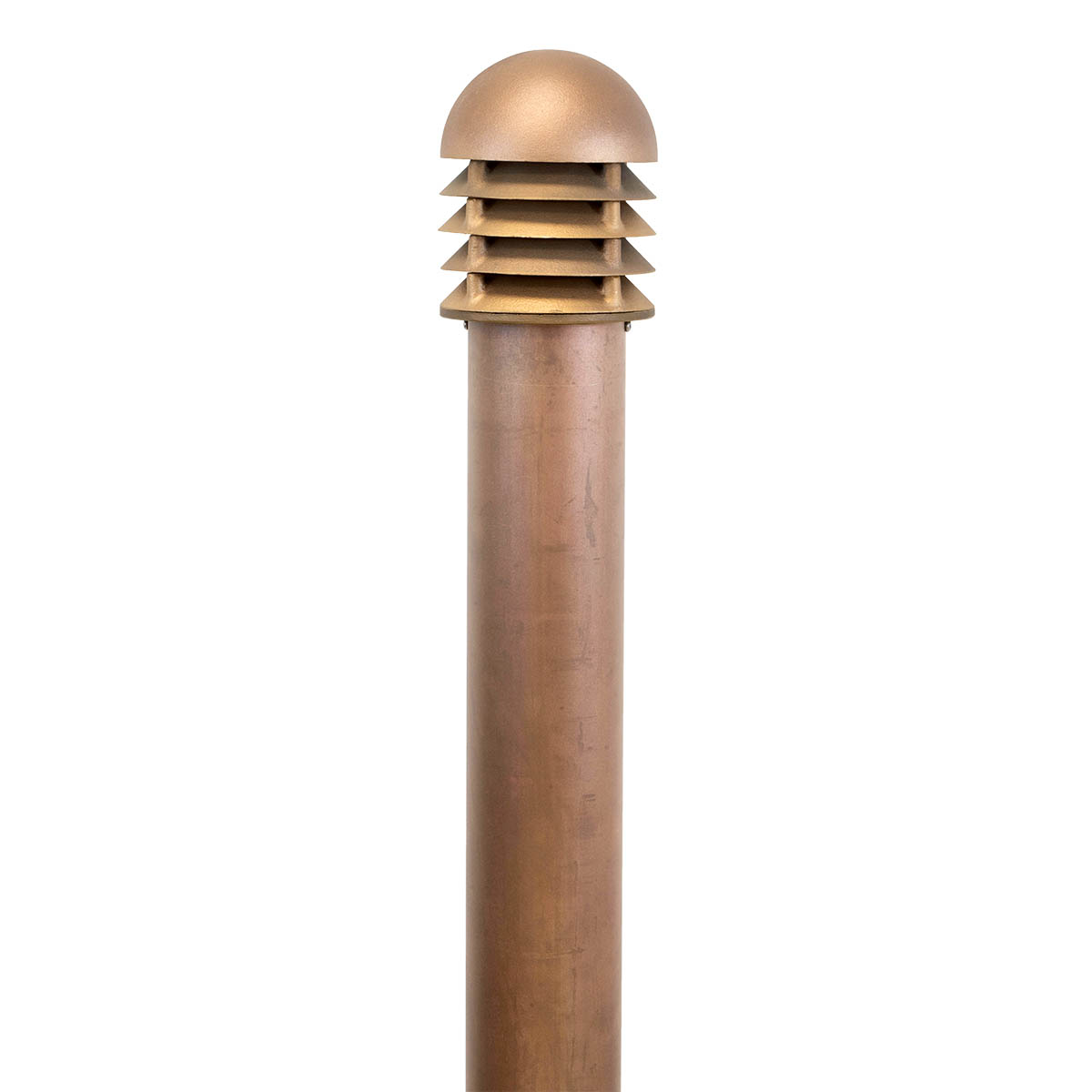

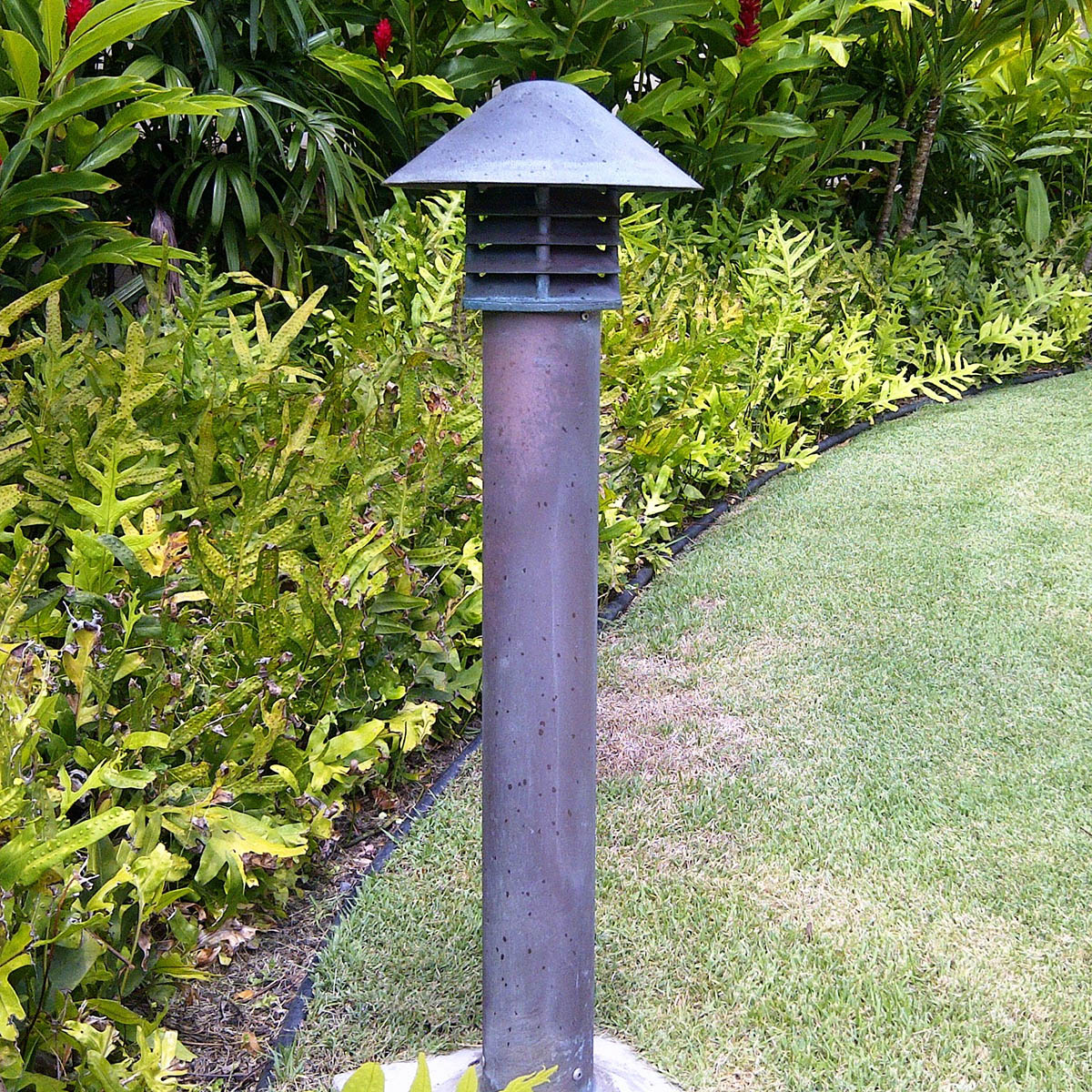

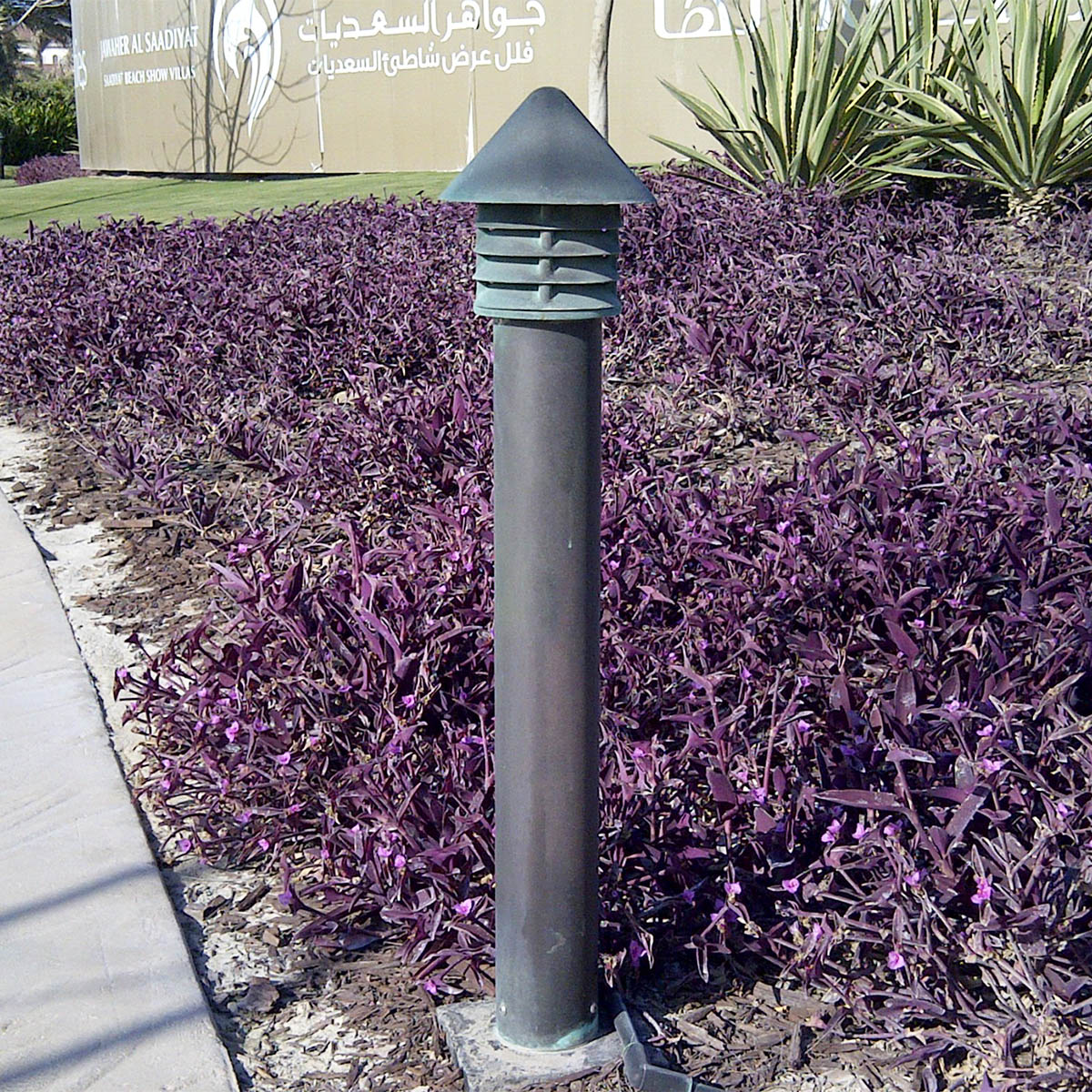

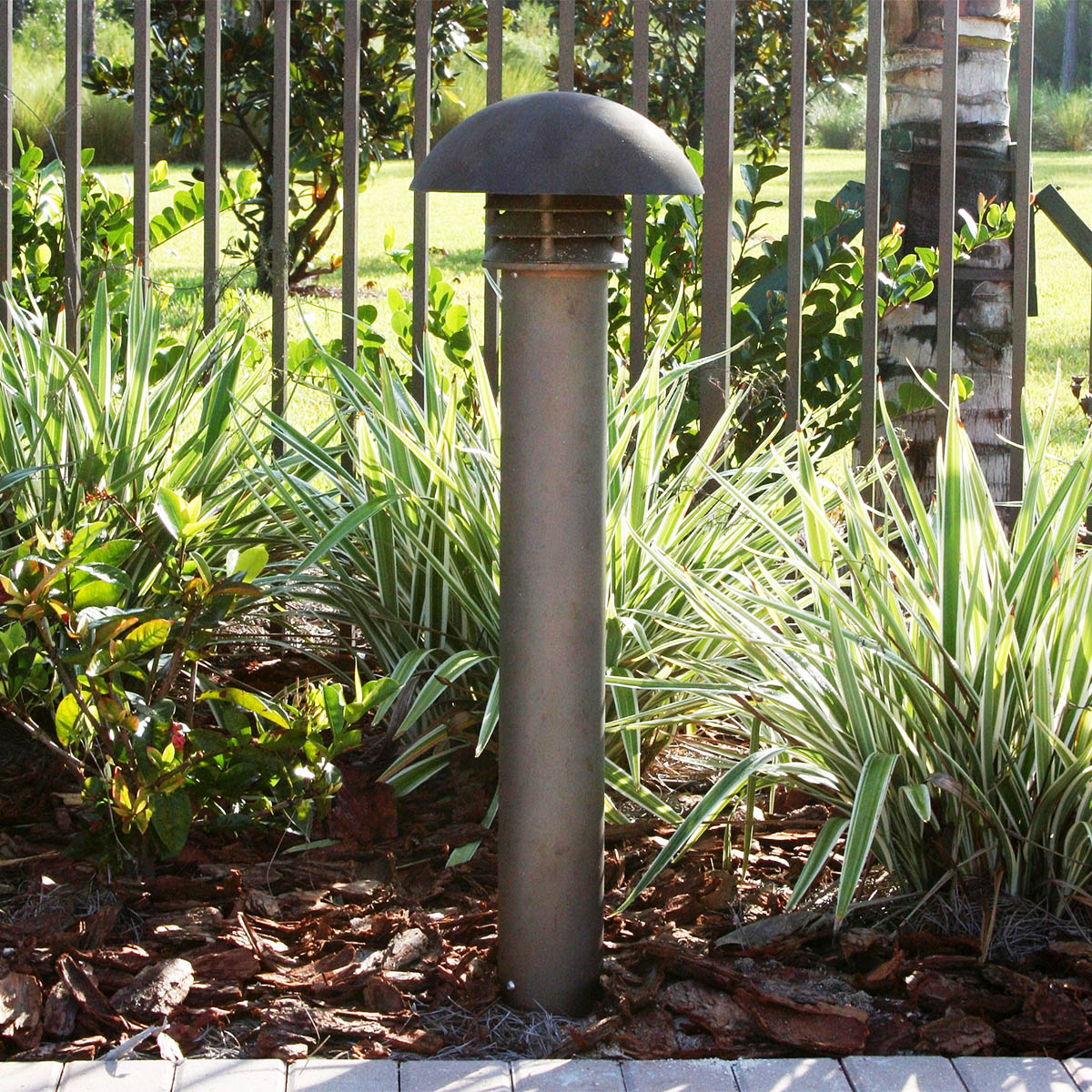

The MB-Series bollards are the ultimate in heavy-duty landscape lighting. Made of cast brass, these fixtures are larger in scale than other Beachside fixtures and use omnidirectional LED lamps. Access to the vapor-proof glass lens for re-lamping is via stainless steel screws at the underside of the bottom louver. Standard shaft heights are 4, 12, and 28 inches; custom shaft heights are available.

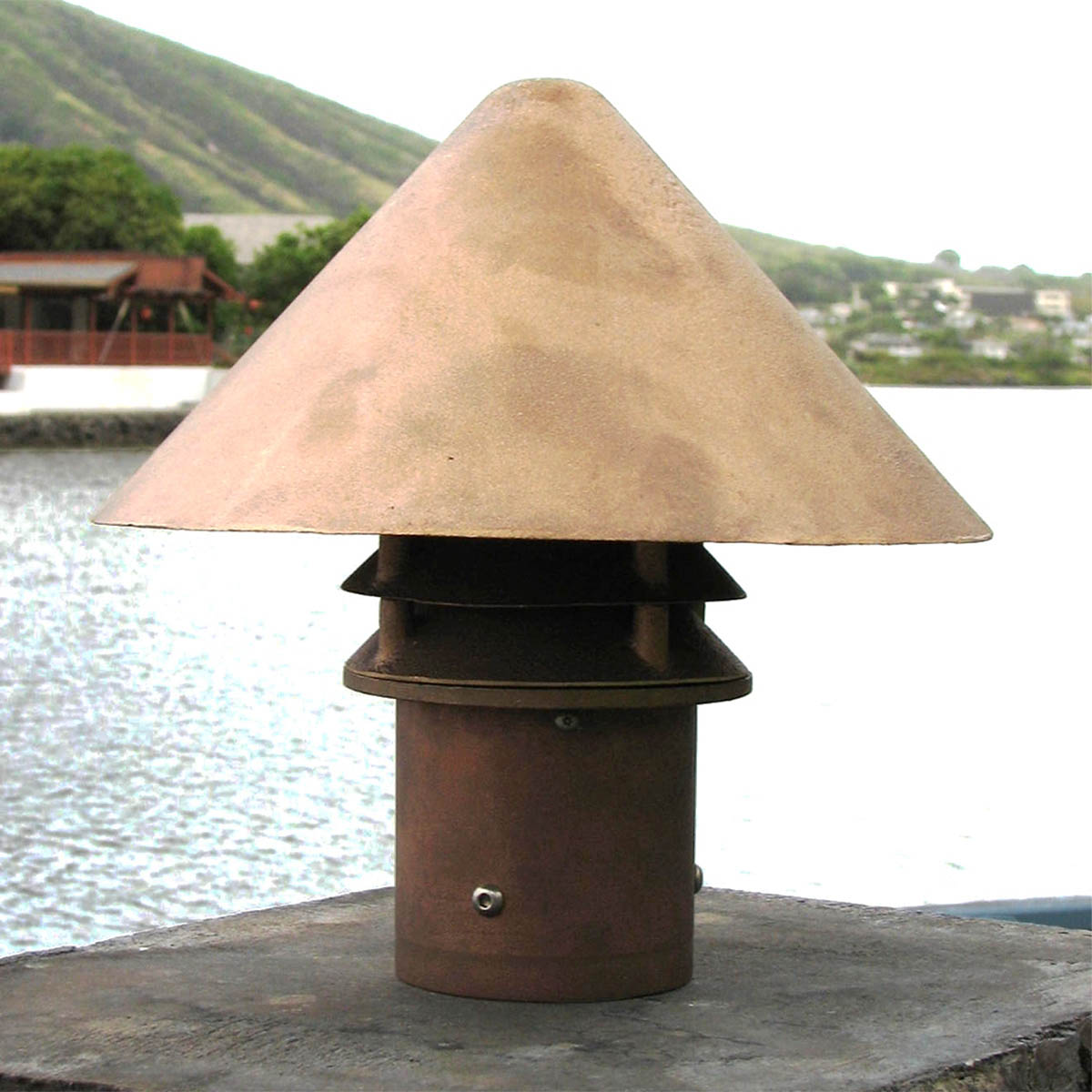

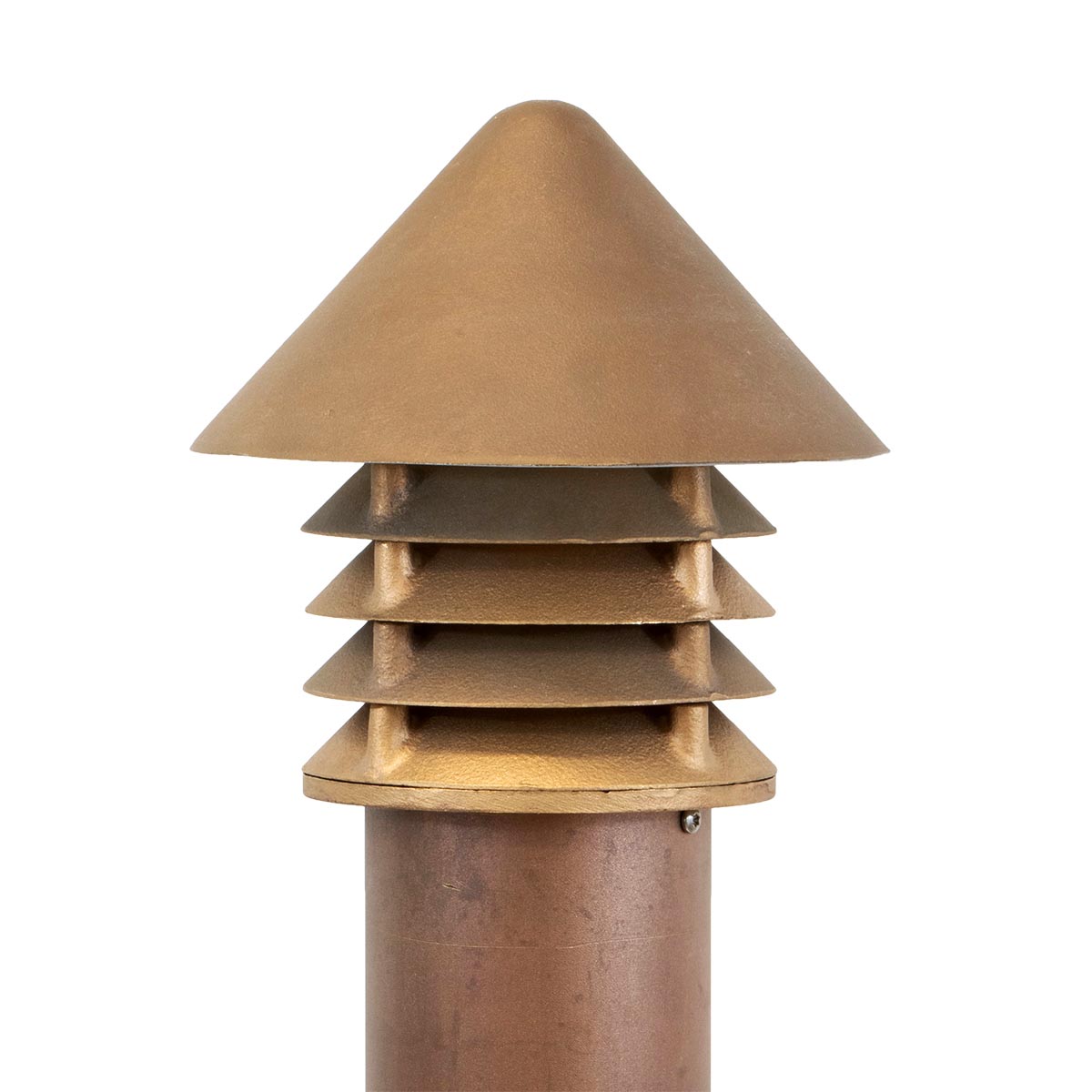

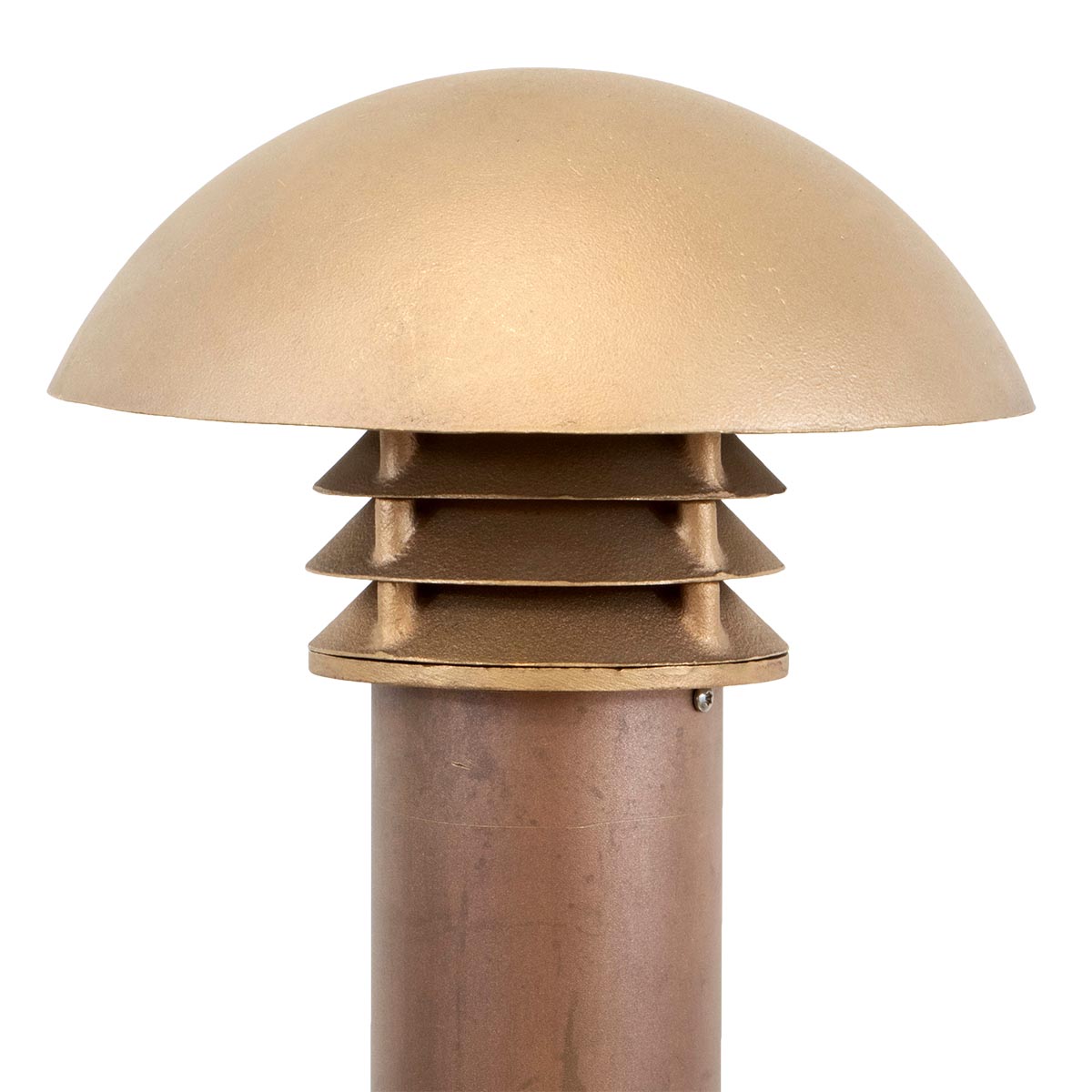

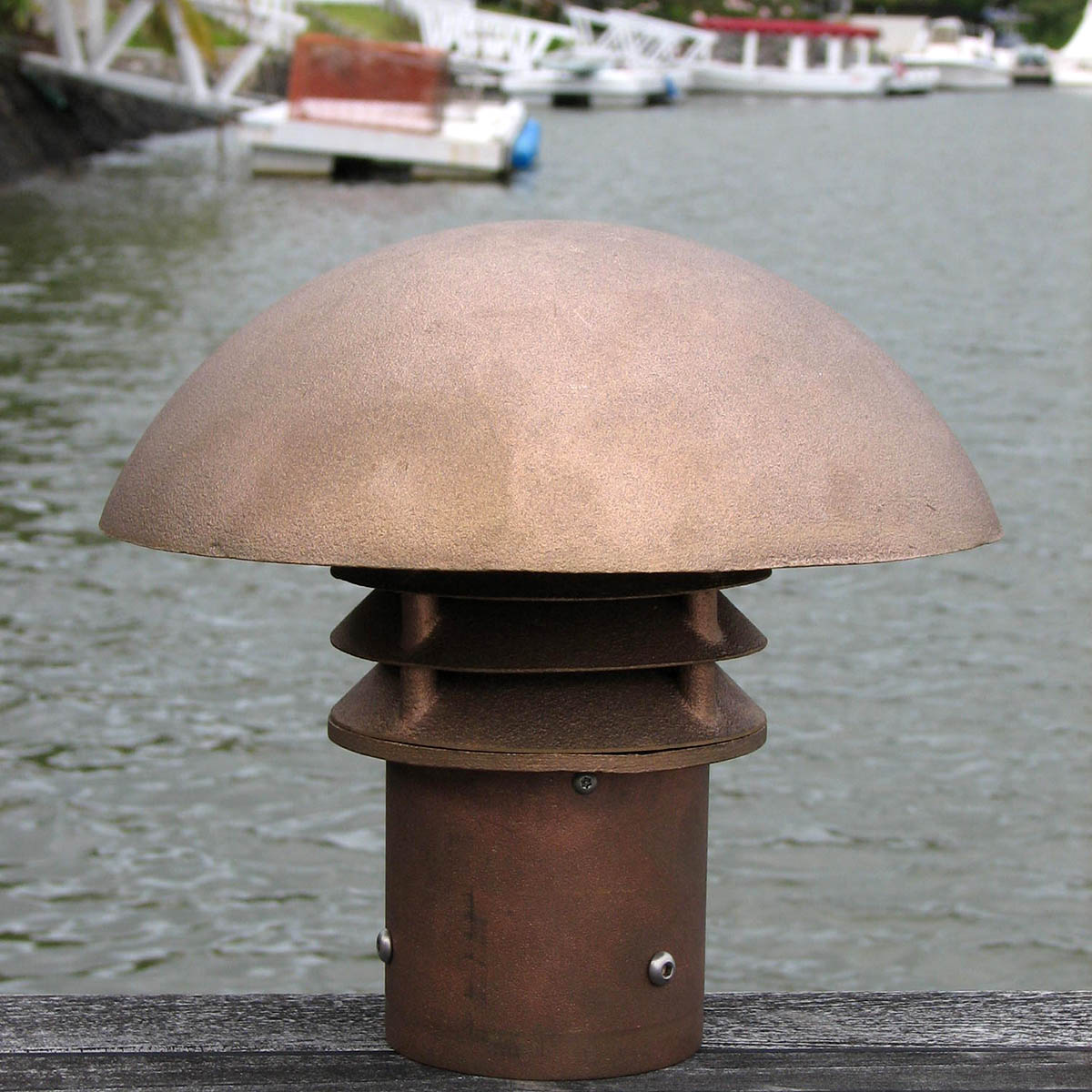

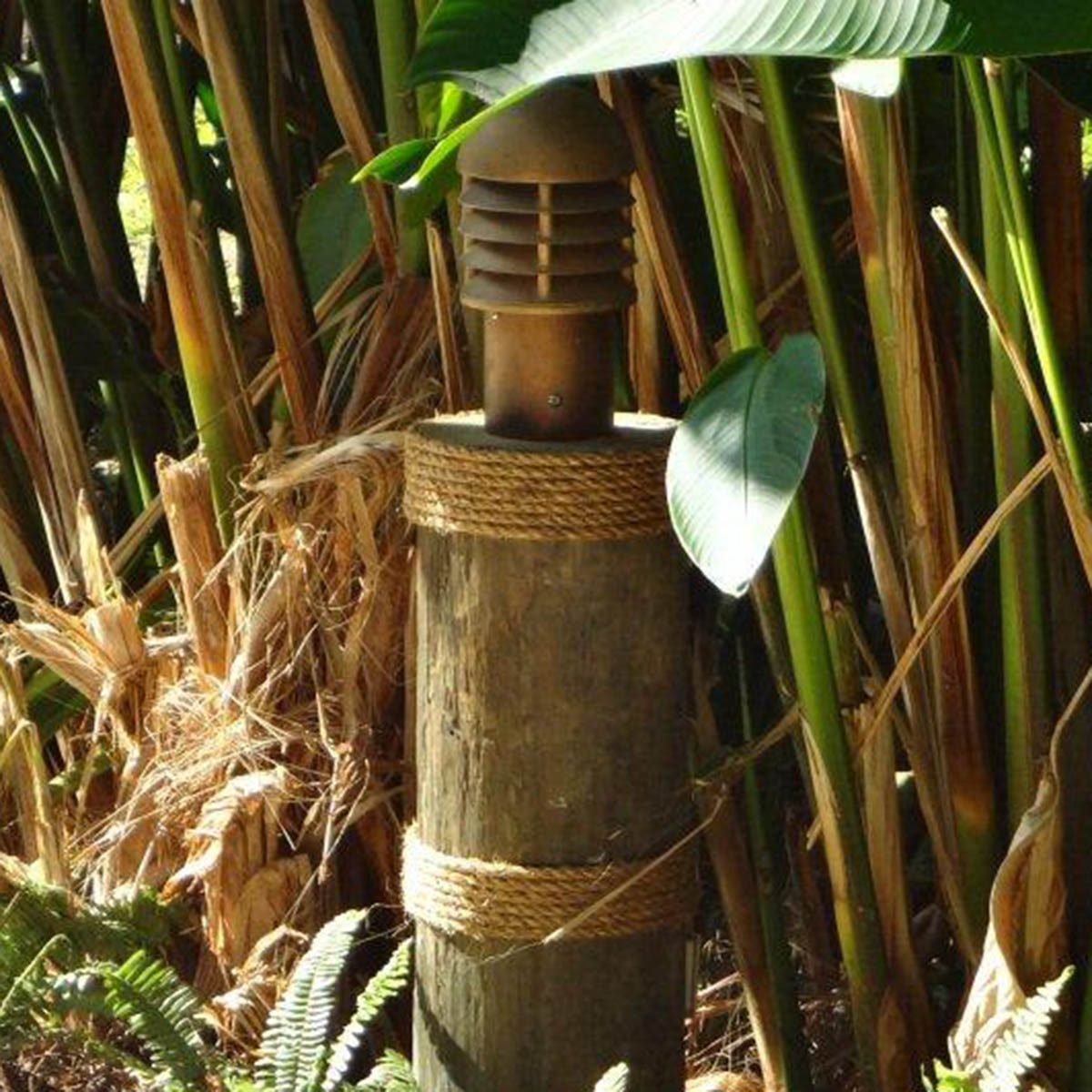

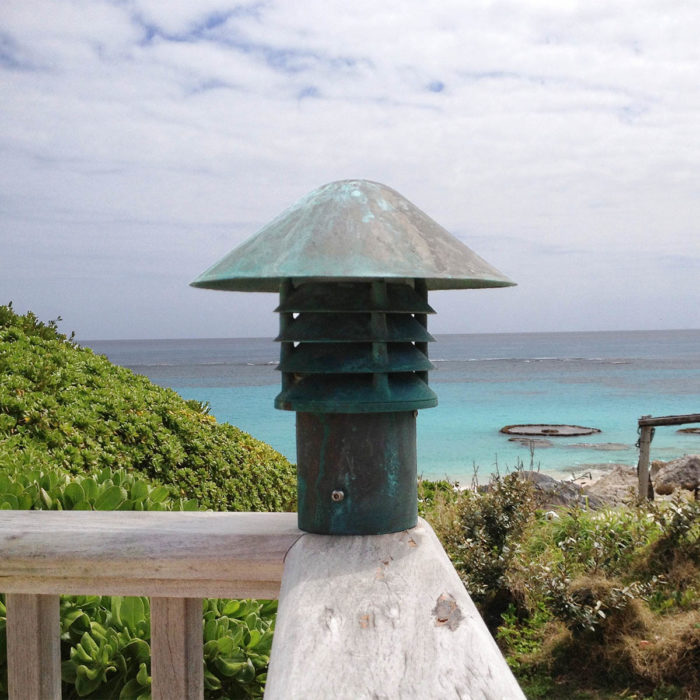

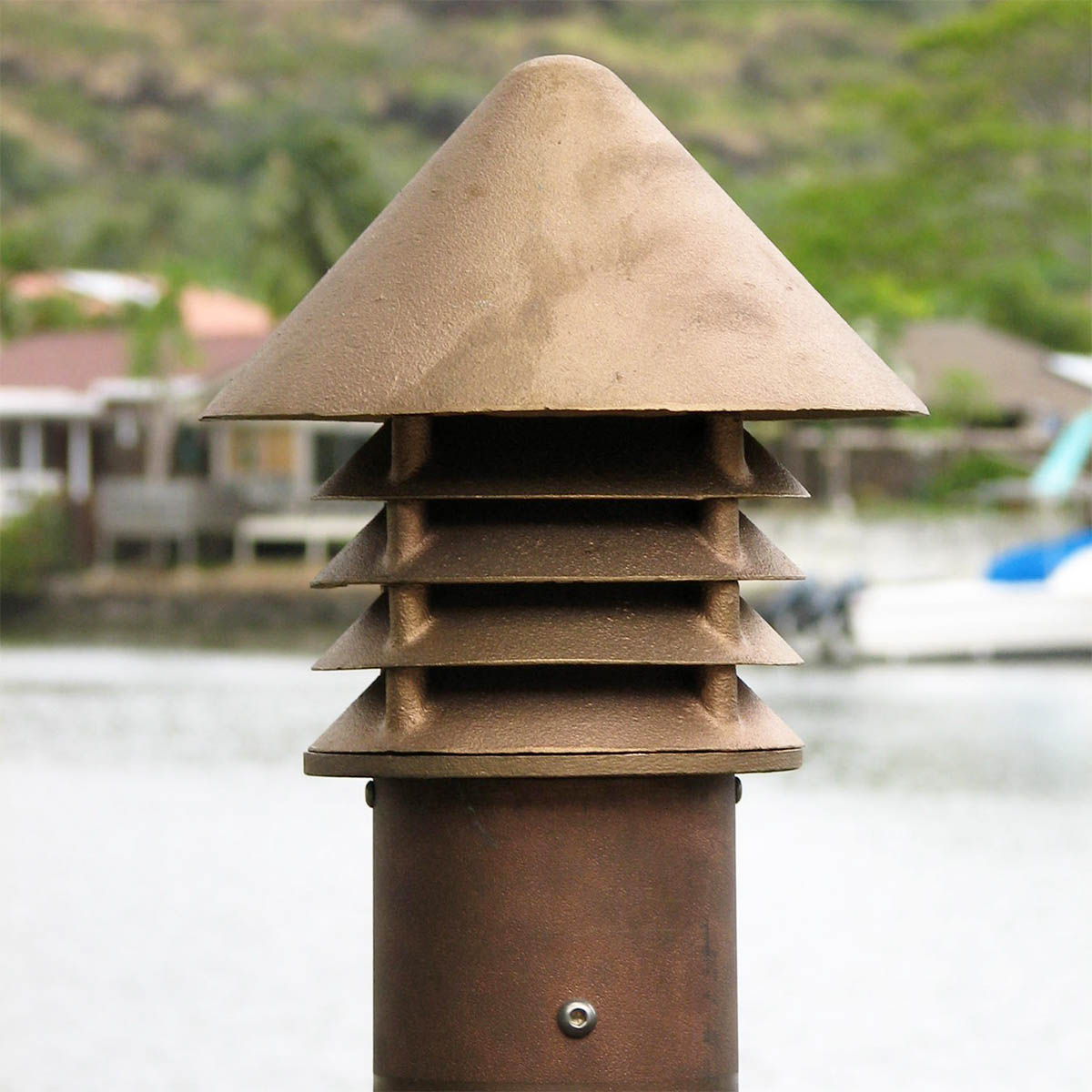

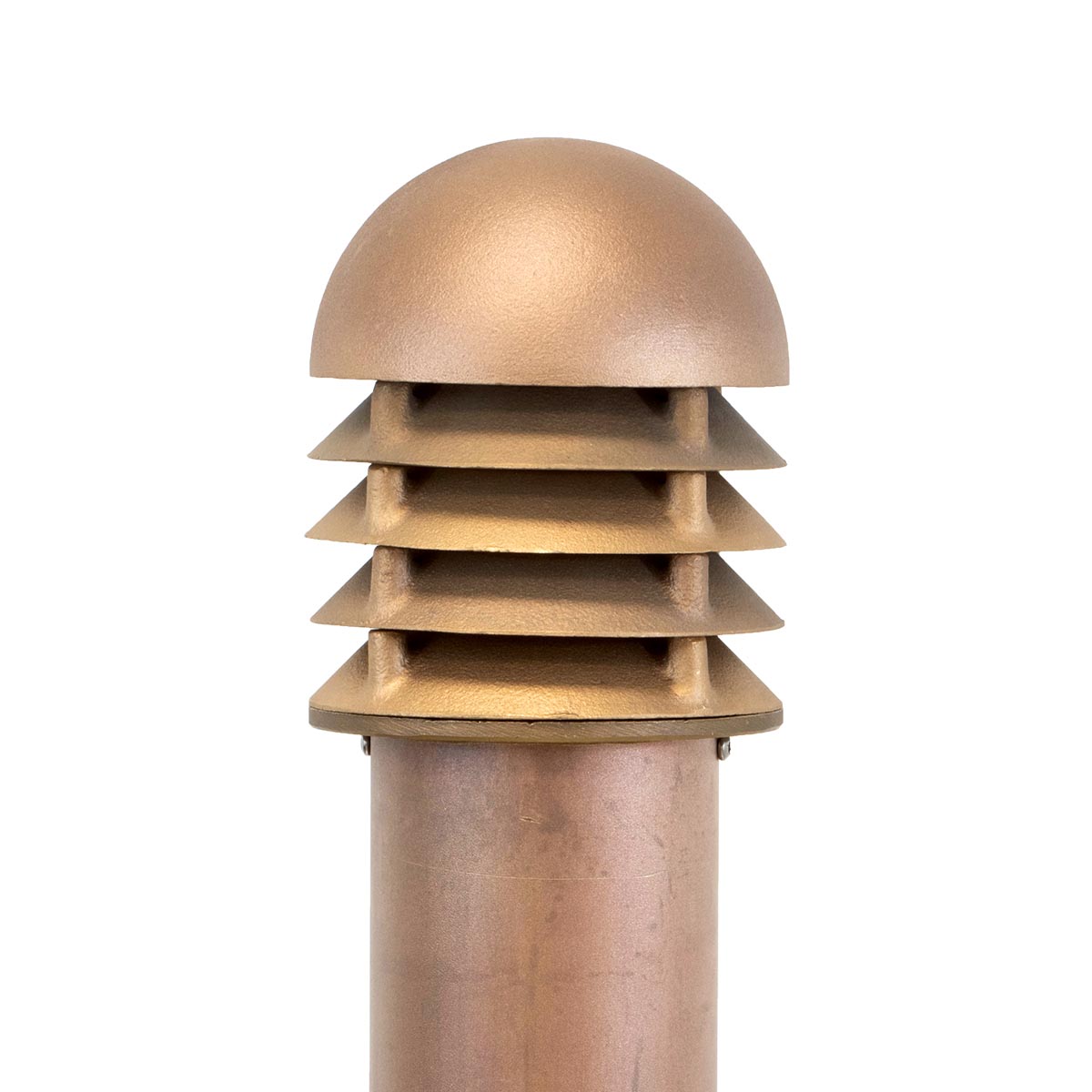

The MB-Series bollards have another application ideal for their rugged construction: docks. A standard 4″ high x 4″ diameter shaft surrounds an internal brass collar, which is securely attached to the top of a pylon by 3/8″ stainless steel lag screws. Cast brass louvers angled at 45 degrees surround the lens to virtually eliminate glare.
MB-series bollards with amber and red-orange LED lamps are certified as “Wildlife Friendly” by the Florida Fish & Wildlife Conservation Commission. To view these fixtures click HERE.
- Remote transformer required for 12V
- Durable construction: all brass components and shades
- CSA Listed to US and Canadian safety standards, file #190030
Voltage | 12V, 120V, 230V |
Lamps | LED |
CCT | 1500K |
2700K | |
3000K |
MB3 Specifications
MB5 Specifications
MB6 Specifications
MB7 Specifications
MB8 Specifications
12V MB-Series Instructions
120V MB-Series Instructions
MB Template for Anchor Bolts & Conduit Positioning
G4 / G6.35 / GY6.35 omnidirectional LED
3W-G4-27 | 3 Watt Warm White (2700K) |
3W-G4-30 | 3 Watt Warm White (3000K) |
4W-G4-27 | 4 Watt Warm White (2700K) |
4W-G4-30 | 4 Watt Warm White (3000K) |
E26 medium base omnidirectional LED
6W-A-E26 | 6 Watt AMBER (1500K) |
13W-A19-2700K | 13 Watt Warm White (2700K), A19 type |
13W-A19-3000K | 13 Watt Warm White (3000K), A19 type |
HSM | Half shield for 180° illumination |
