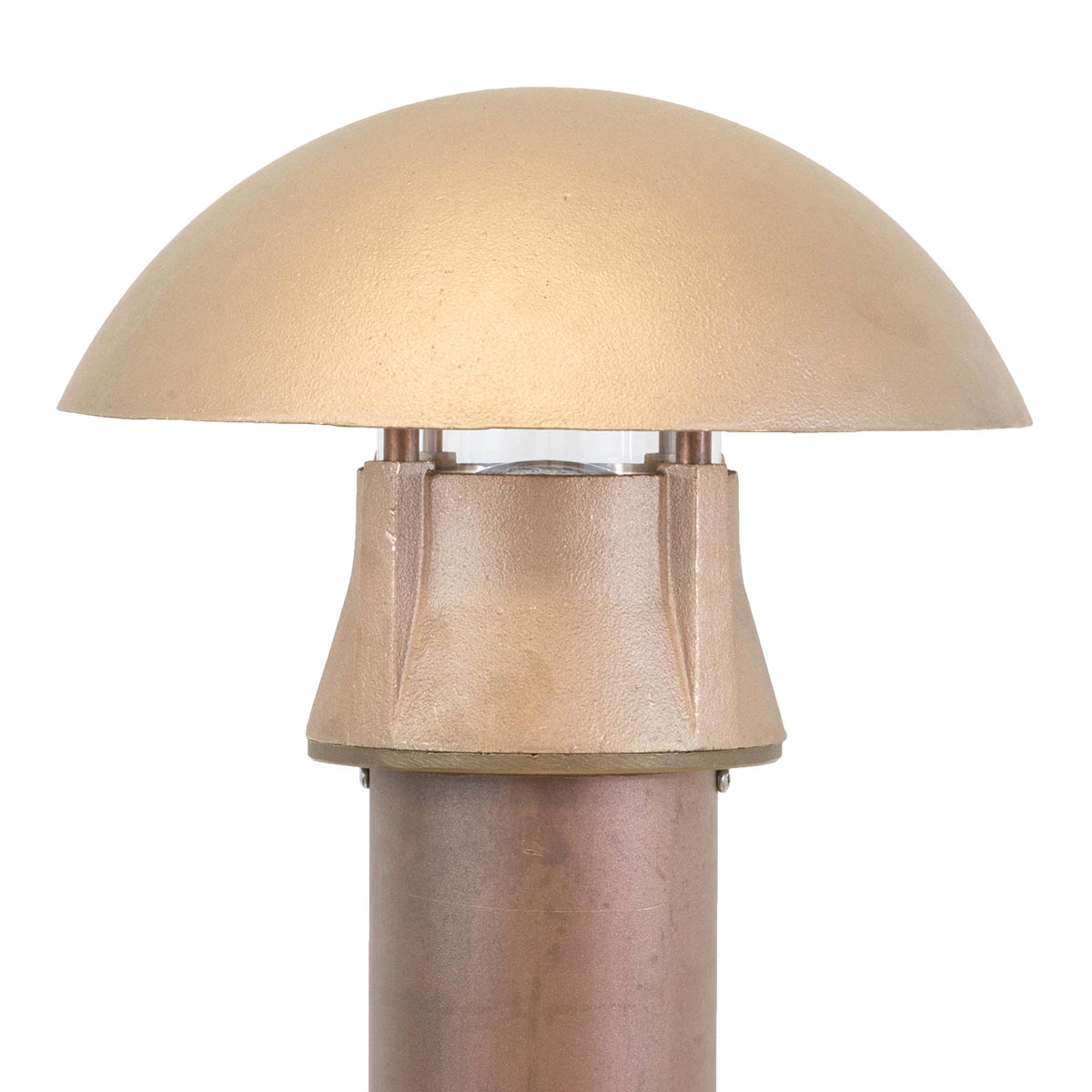

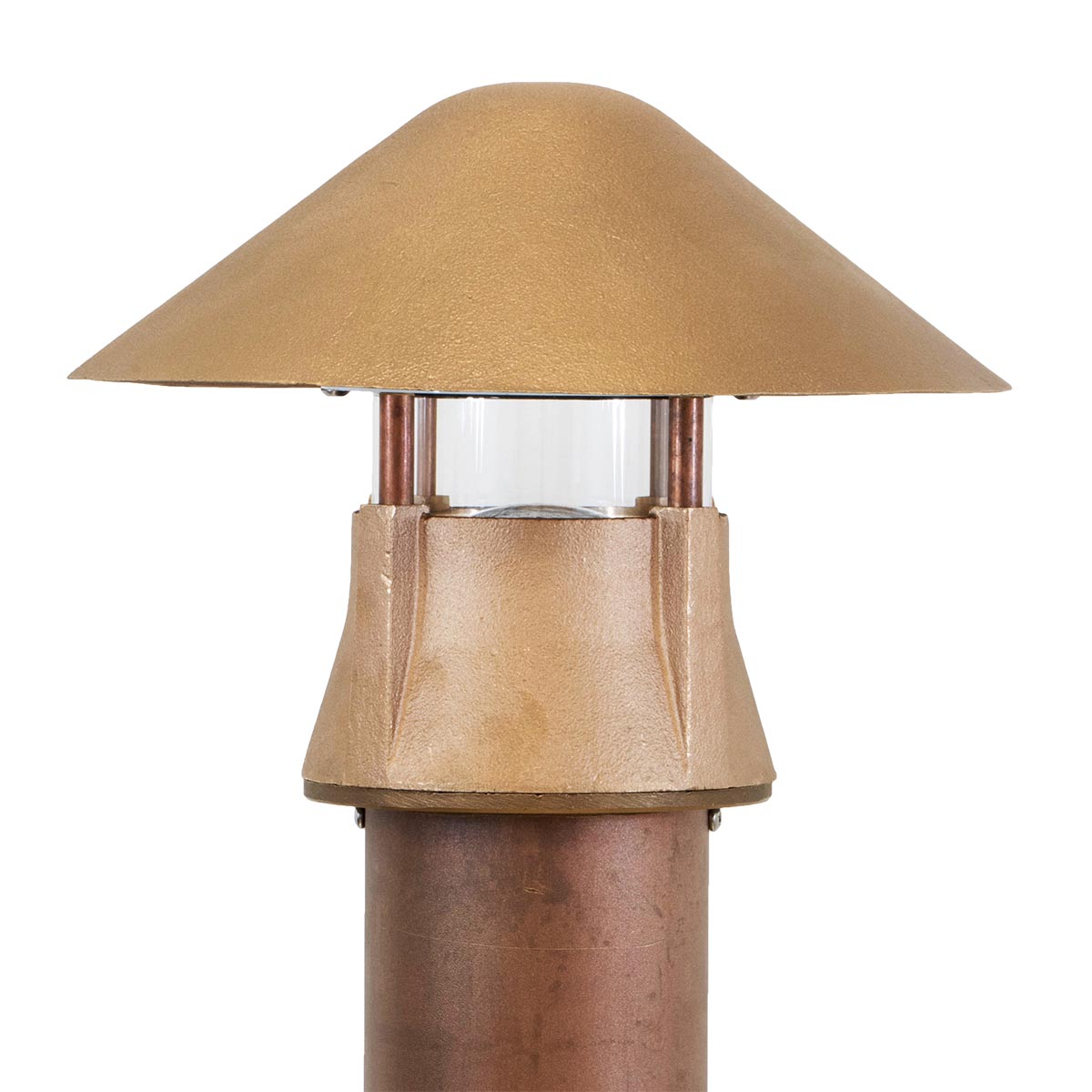

The MB-Series bollards are the ultimate in heavy-duty landscape lighting. Made of cast brass, these fixtures are larger in scale than other Beachside fixtures and use LED lamping exclusively. Access to the vapor-proof glass lens for re-lamping is via stainless steel socket screws at the underside of the bottom louver. Standard shaft heights are 4, 12, and 28 inches; custom shaft heights are available.

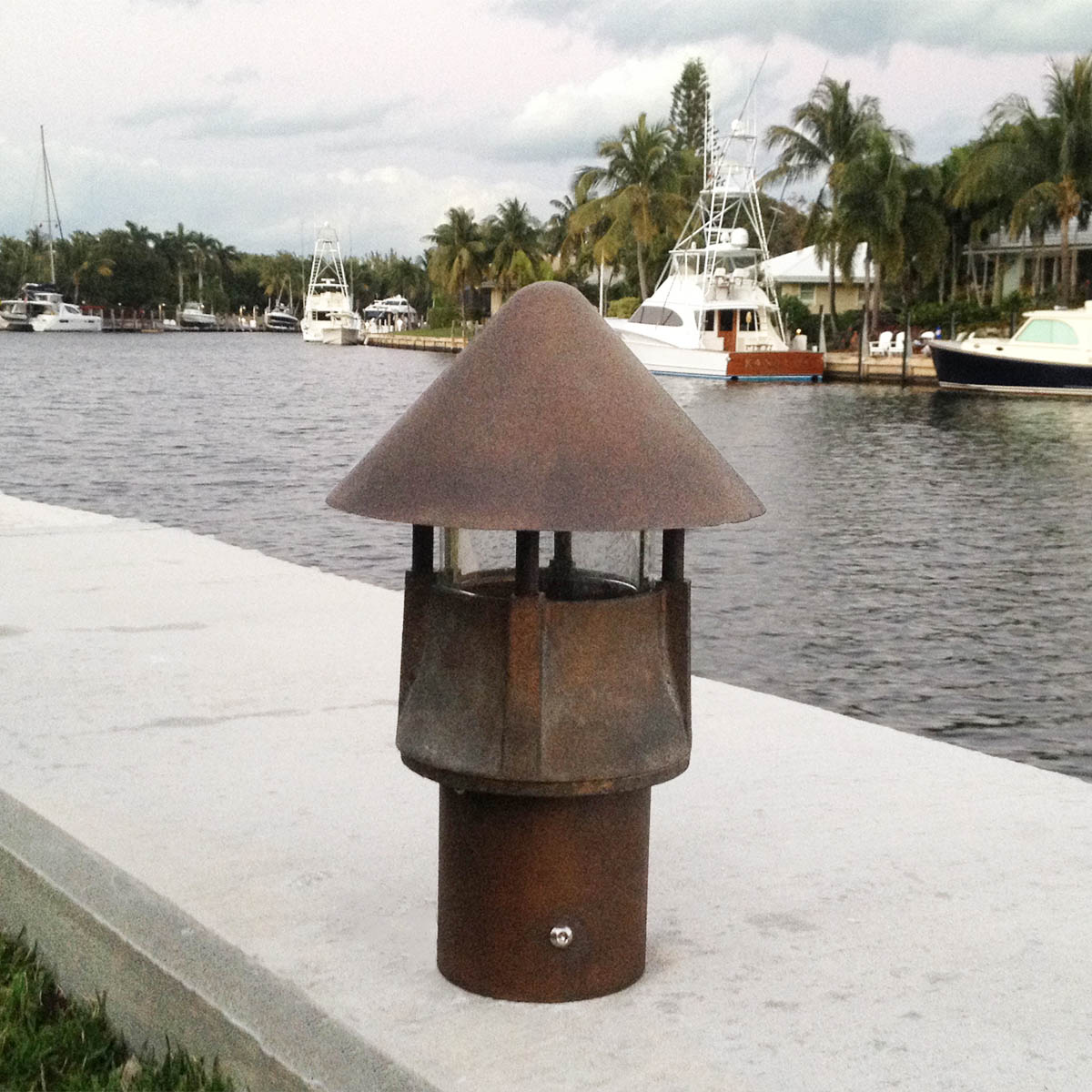

The MB-Series bollards have another application ideal for their rugged construction: docks. A standard 4″ high x 4″ diameter shaft surrounds an internal brass collar, which is securely attached to the top of a pylon by 3/8″ stainless steel lag screws.
MB-series bollards with amber and red-orange LED lamps are certified as “Wildlife Friendly” by the Florida Fish & Wildlife Conservation Commission. To view these fixtures click HERE.
- Remote transformer required for 12V
- Durable construction: all brass components and shades
- CSA Listed to US and Canadian safety standards, file #190030
Voltage | 12V, 120V, 230V |
Lamps | Integrated LED, MR16 LED |
CCT | 1000K |
1500K | |
2700K | |
3000K |

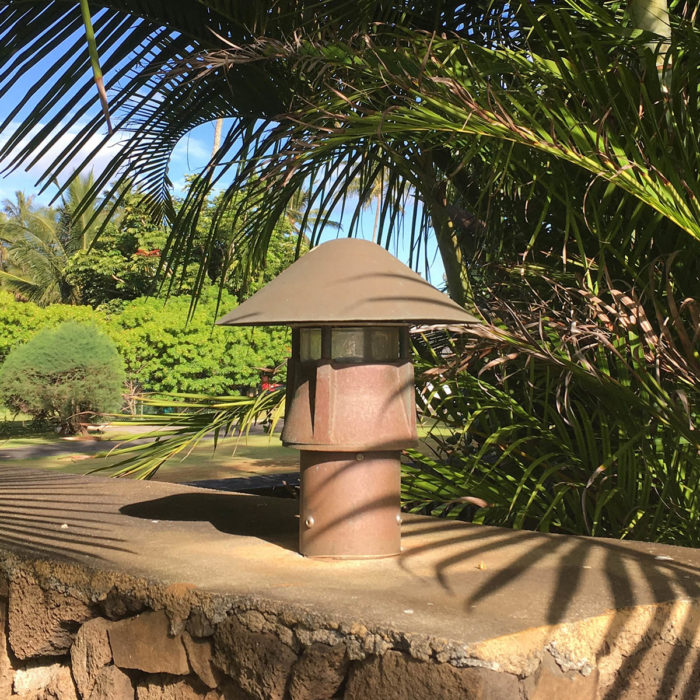

MB3-LED Specifications

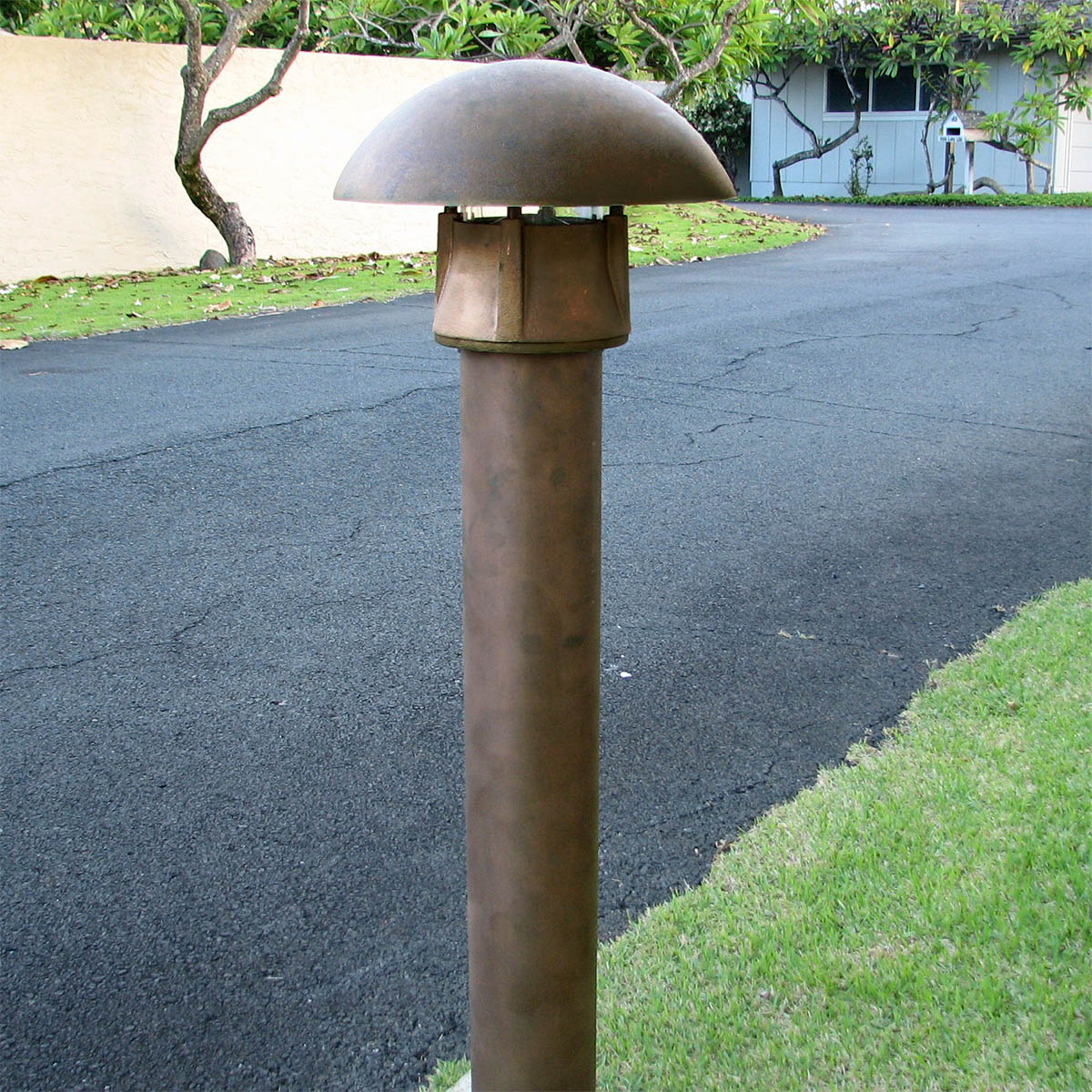

MB5-LED Specifications
MB6-LED Specifications

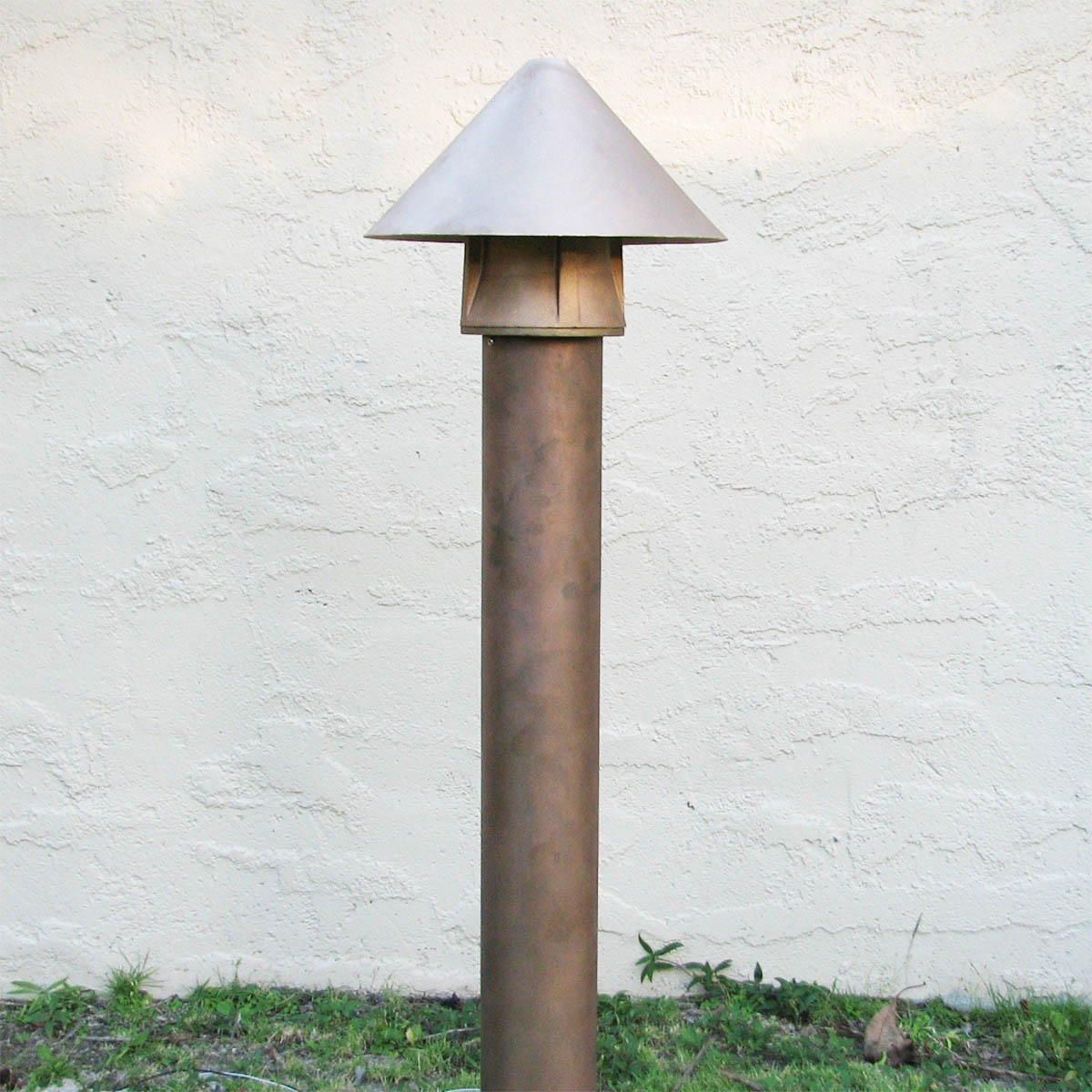

MB7-LED Specifications
MB8-LED Specifications
12V MB-Series LED Instructions
120V MB-Series LED Instructions
MB Template for Anchor Bolts & Conduit Positioning
GU5.3 MR16 LED • Remote transformer required
5W-A-NFL | 5 Watt AMBER (1500K)* TURTLE FRIENDLY |
5W-NFL-27 | 5 Watt Warm White (2700K) |
5W-NFL-30 | 5 Watt Warm White (3000K) |
8W-NFL-27 | 8 Watt Warm White (2700K) |
8W-NFL-30 | 8 Watt Warm White (3000K) |
Cree LED light engine • Remote transformer required
7W-A | 7 Watt AMBER (1500K)* TURTLE FRIENDLY |
8W-RO | 8 Watt RED-ORANGE (1000K)* TURTLE FRIENDLY |
11W-827 | 11 Watt Warm White (2700K) |
11W-830 | 11 Watt Warm White (3000K) |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
GU10 MR16 LED
5W-A-NFL-120V | 5 Watt AMBER (1500K)* TURTLE FRIENDLY |
5W-NFL-27-120V | 5 Watt Warm White (2700K) |
5W-NFL-30-120V | 5 Watt Warm White (3000K) |
8W-NFL-27-120V | 8 Watt Warm White (2700K) |
8W-NFL-30-120V | 8 Watt Warm White (3000K) |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission

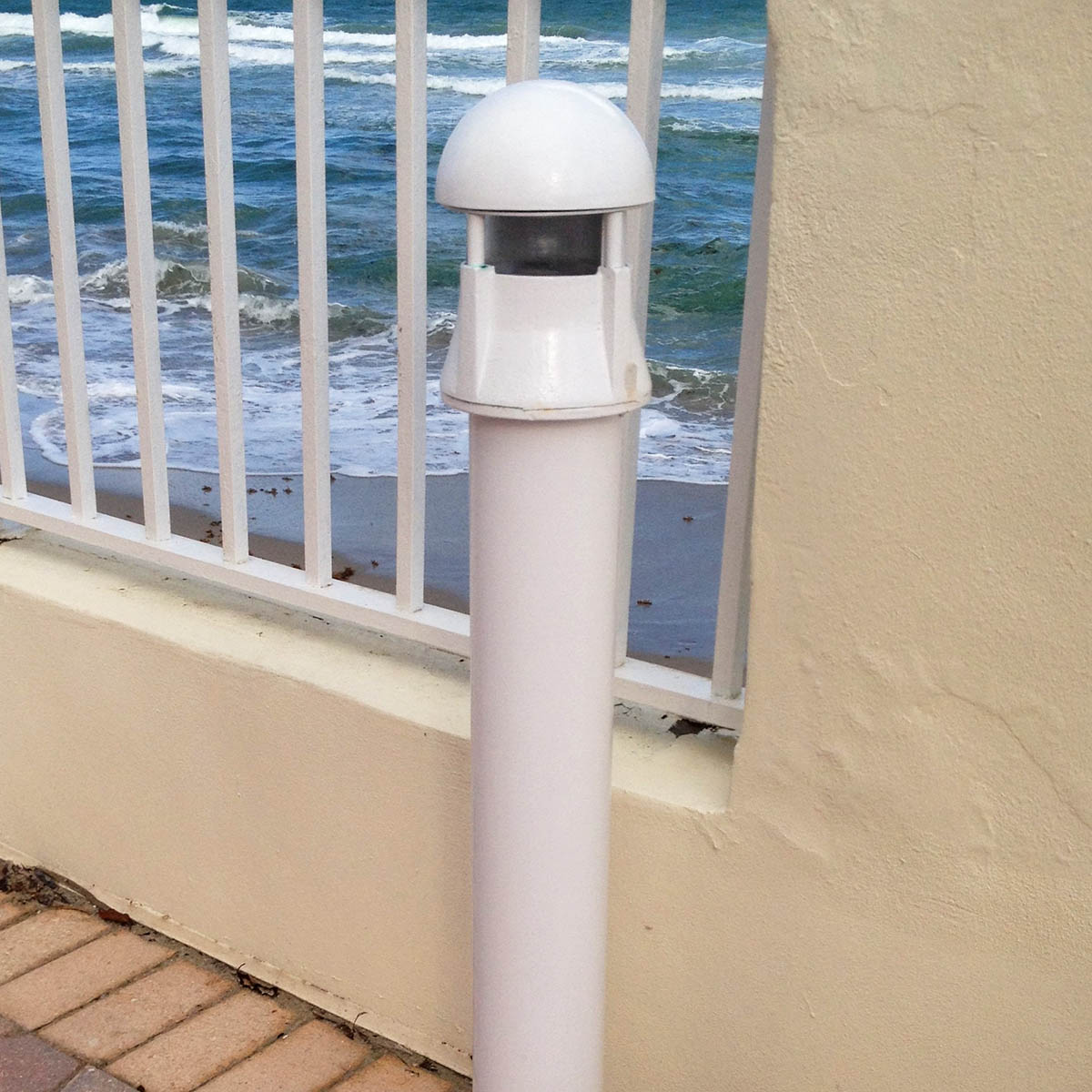

HSM-LED | Half shield for 180° illumination |
