MB1
(12/120/230/277V Halogen/LED)

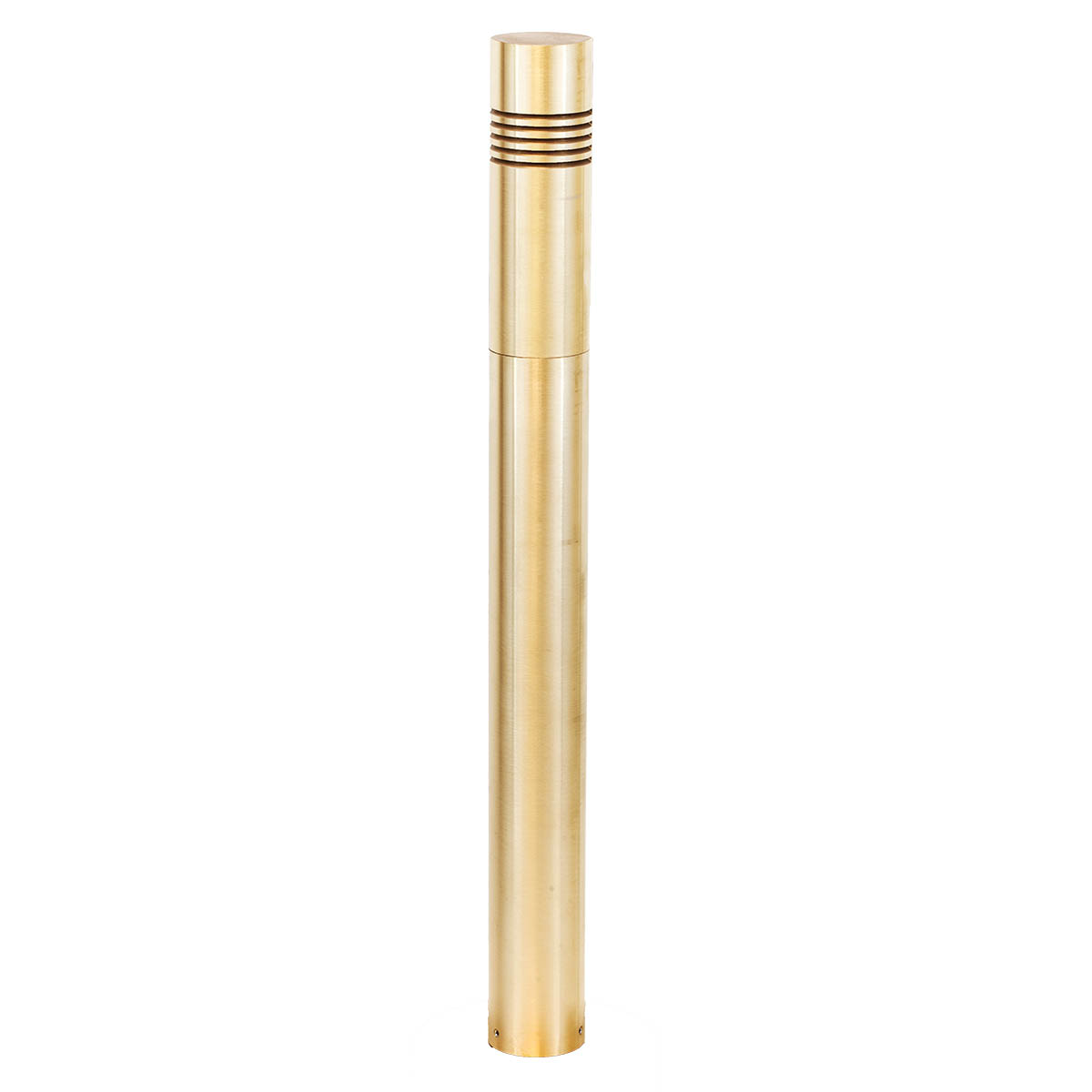

Classic-Style Bollard for Concrete Installation

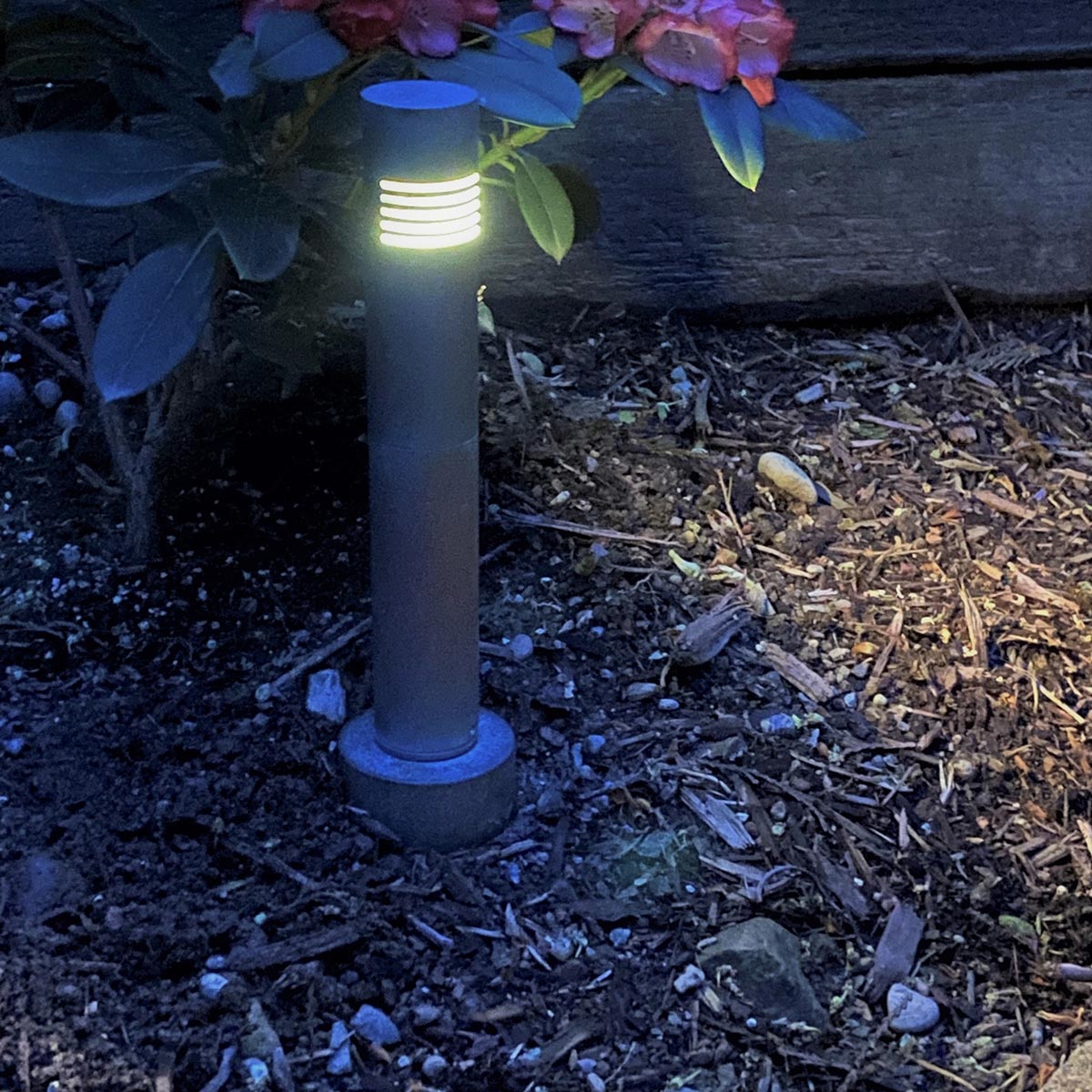

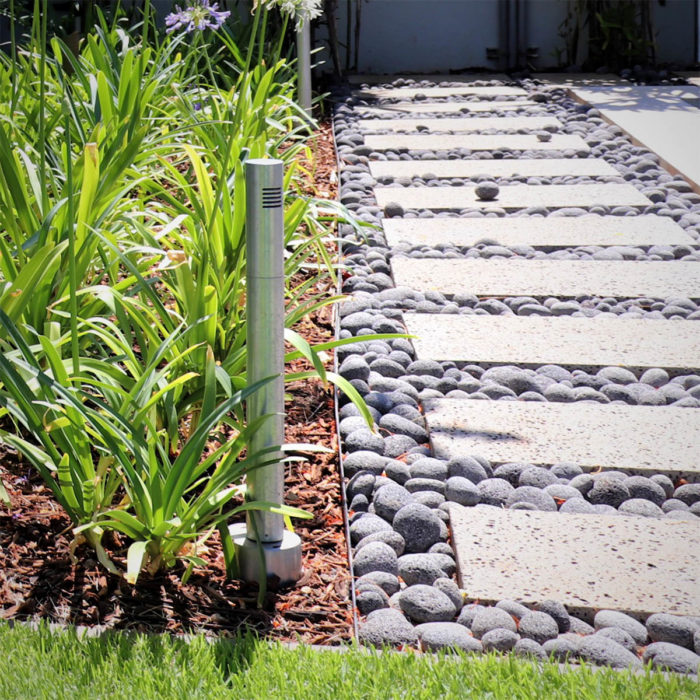

The MB1 is an unobtrusive, contemporary pathlight/bollard hybrid with 180° illumination via the field-rotatable top assembly.

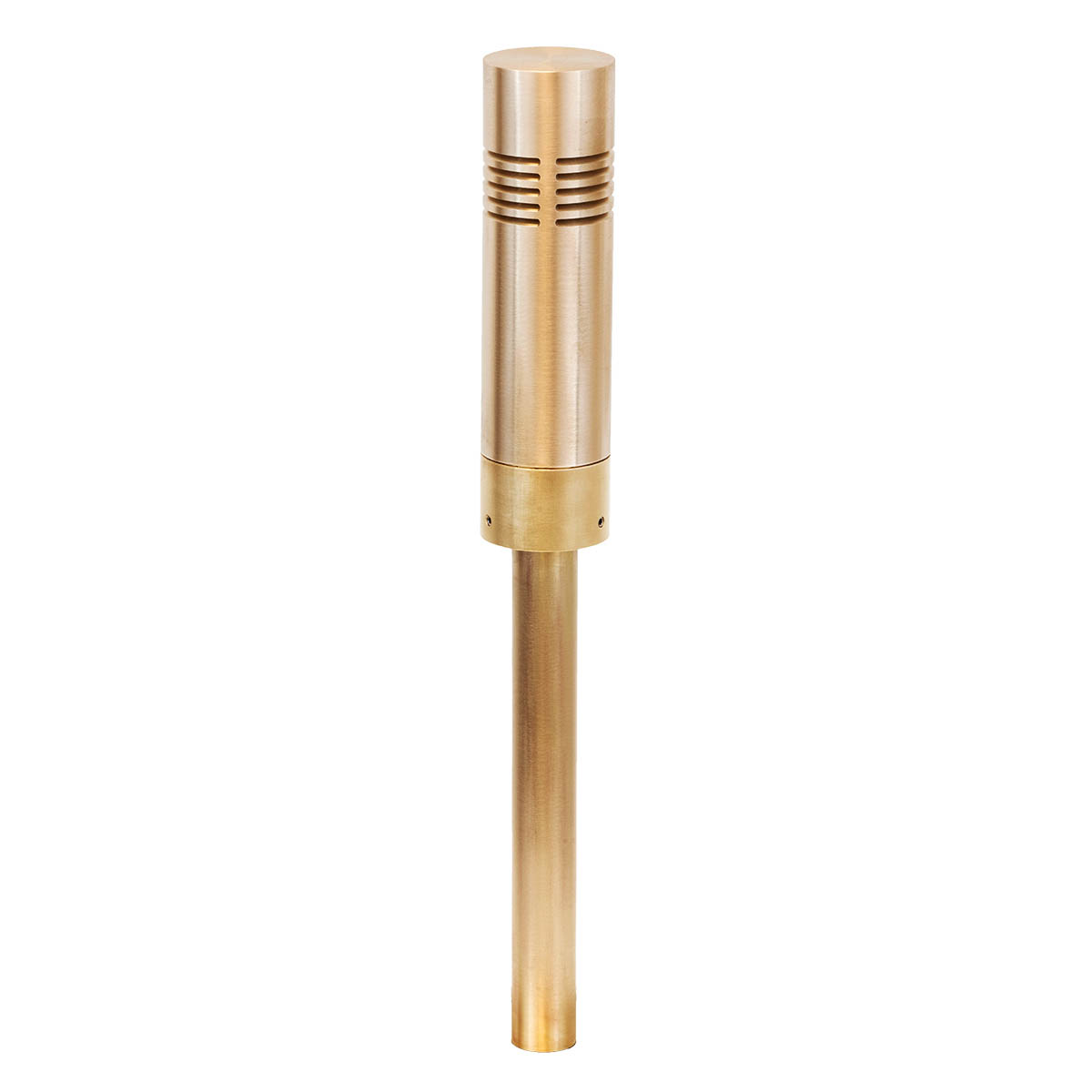

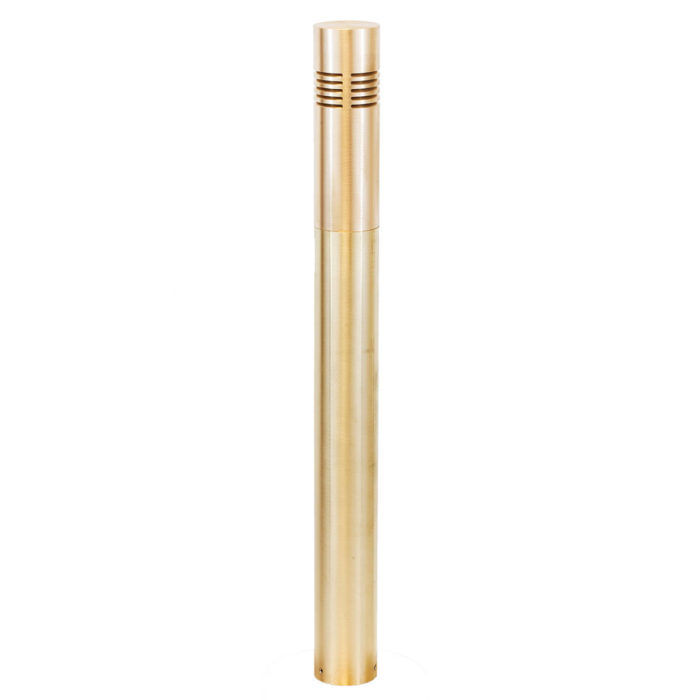

- 360° illumination option (MB1-360)
- Durable construction – all brass components
- Can be mounted on optional stems
- Custom fixture heights available
| Voltage | 12V, 120V, 230V, 277V |
| Lamps | LED, Halogen |
| CCT | 1000 |
| 1500 | |
| 2700 | |
| 3000 | |
| Dimensions | 1.6″ diameter x 16.9″ height (4.1 x 42.8 cm) |
MB1 Specifications
MB1-360 Specifications
12V Instructions
120V Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates

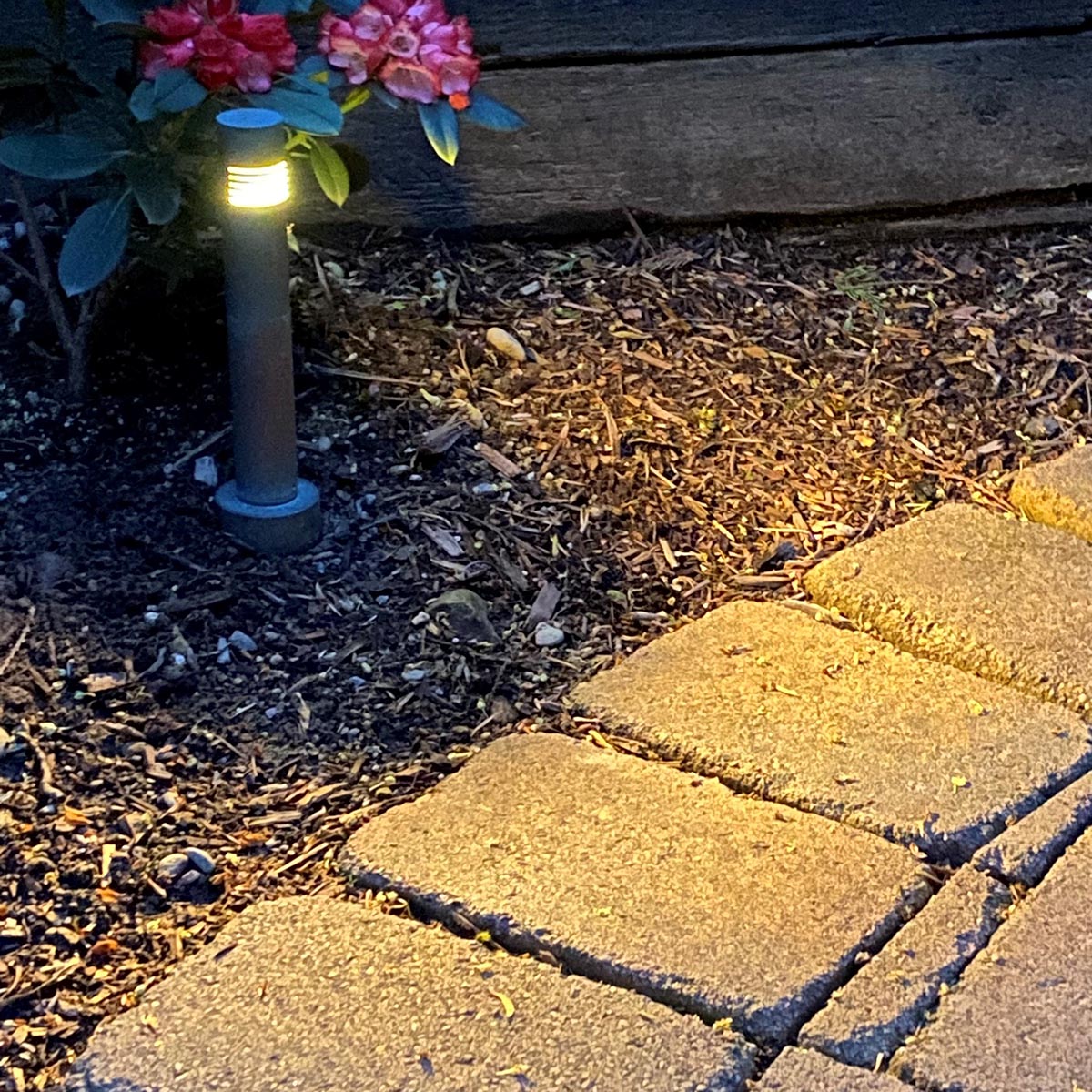

Although delivered lumens is much lower than that of a typical pathlight, the MB1 features reflected light emerging from louvers milled at a 30° angle, resulting in zero glare. It is ideal for applications with low ambient light levels.
Integrated LED light engine
| 2W-A-SP | 2 Watt AMBER (1500K)* TURTLE FRIENDLY |
| 2W-RO-SP | 2 Watt RED-ORANGE (1000K)* TURTLE FRIENDLY |
| 3W-SP | 3 Watt Warm White (3000K)** |
MR11 LED
| 2W-MR11-SP-27 | 2 Watt Warm White (2700K) |
| 2W-MR11-SP-30 | 2 Watt Warm White (3000K) |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
** Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-SP-2700K“

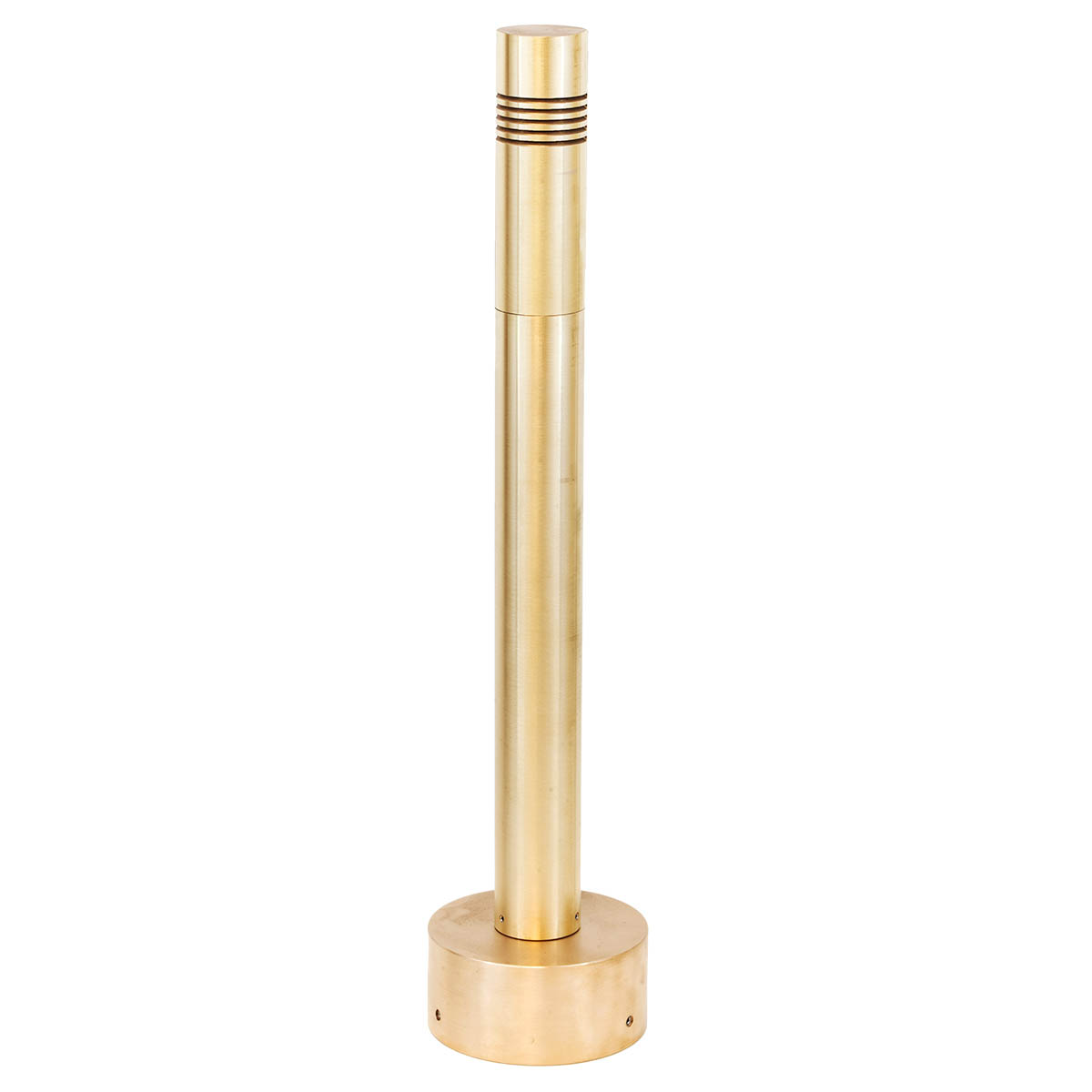

| BSB | Brass Surface Box for concrete or wood surface-mount applications |
| GS2BC | Heavy-duty ground spike with cast brass cap |
| GS3R | Heavy-duty ground spike with brass cap for telescoping fixture stem |
| JB | Cast brass junction box (to be set in concrete) |
| STEMS: | 1/2″ brass pipe stem (required for GS3R) |
| STEM-8 | 8″ [20cm] |
| STEM-12 | 12″ [30cm] |
| STEM-16 | 16″ [40cm] |
| STEM-20 | 20″ [51cm] |
| STEM-24 | 24″ [61cm] |
