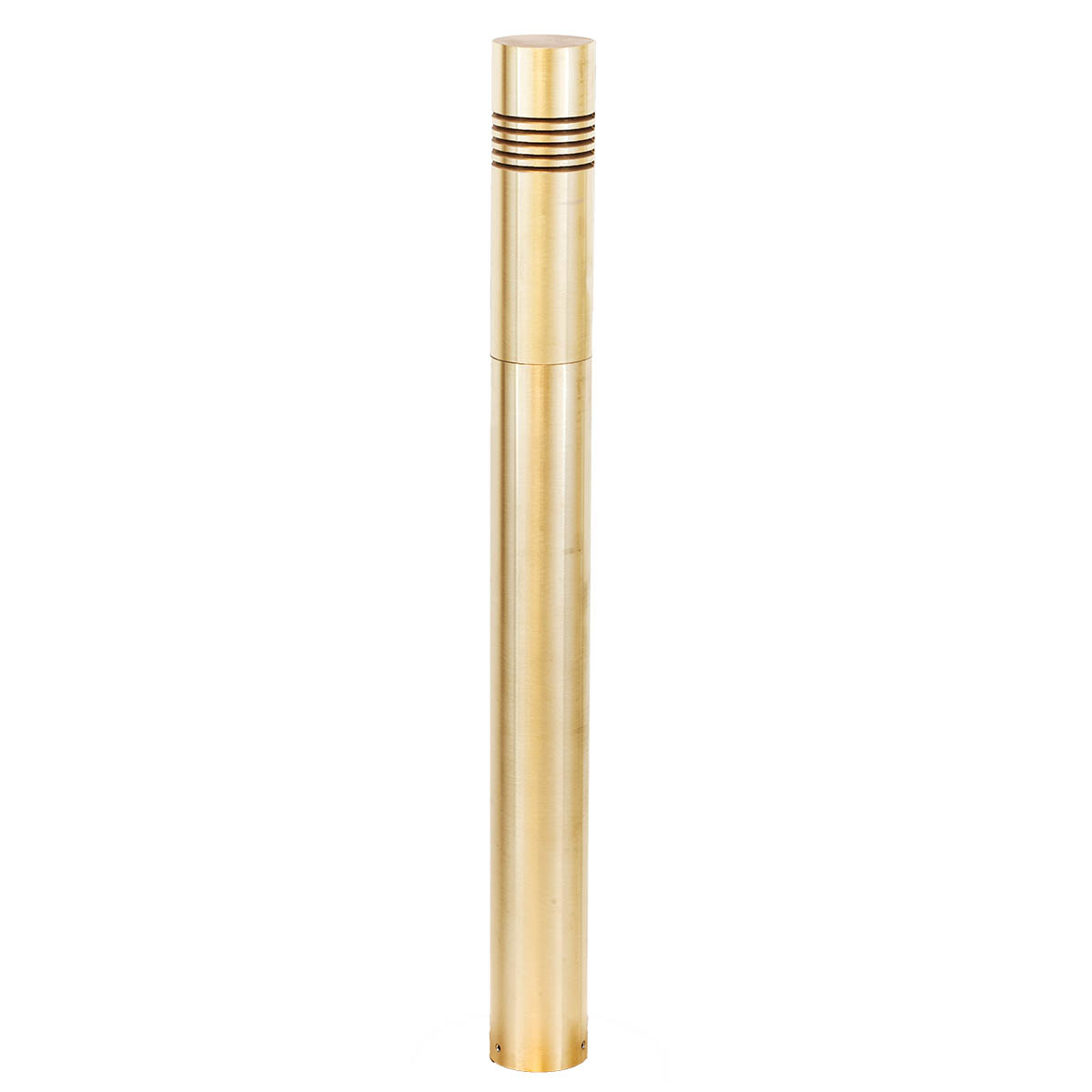

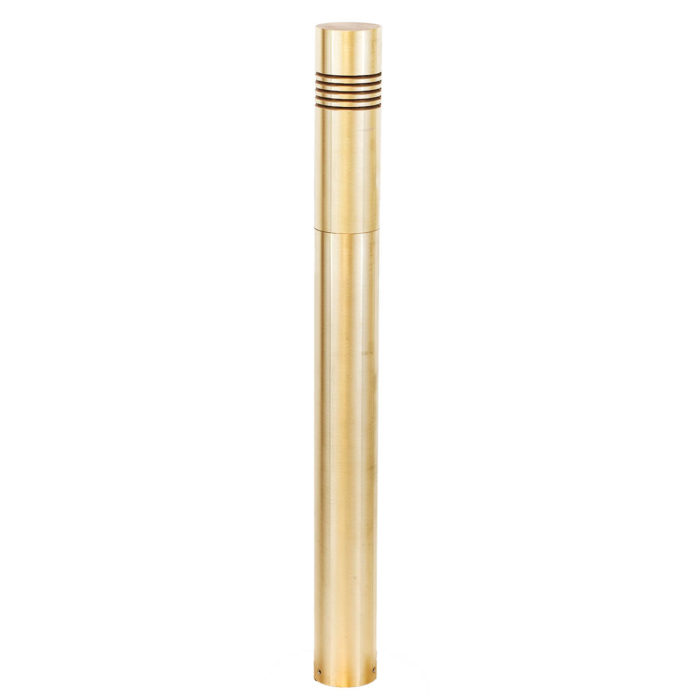

Classic-Style Bollard for Concrete Installation
FFWCC Wildlife Certification # 2018-029
The MB1 is an unobtrusive, contemporary pathlight/bollard hybrid with 180° illumination via the field-rotatable top assembly.

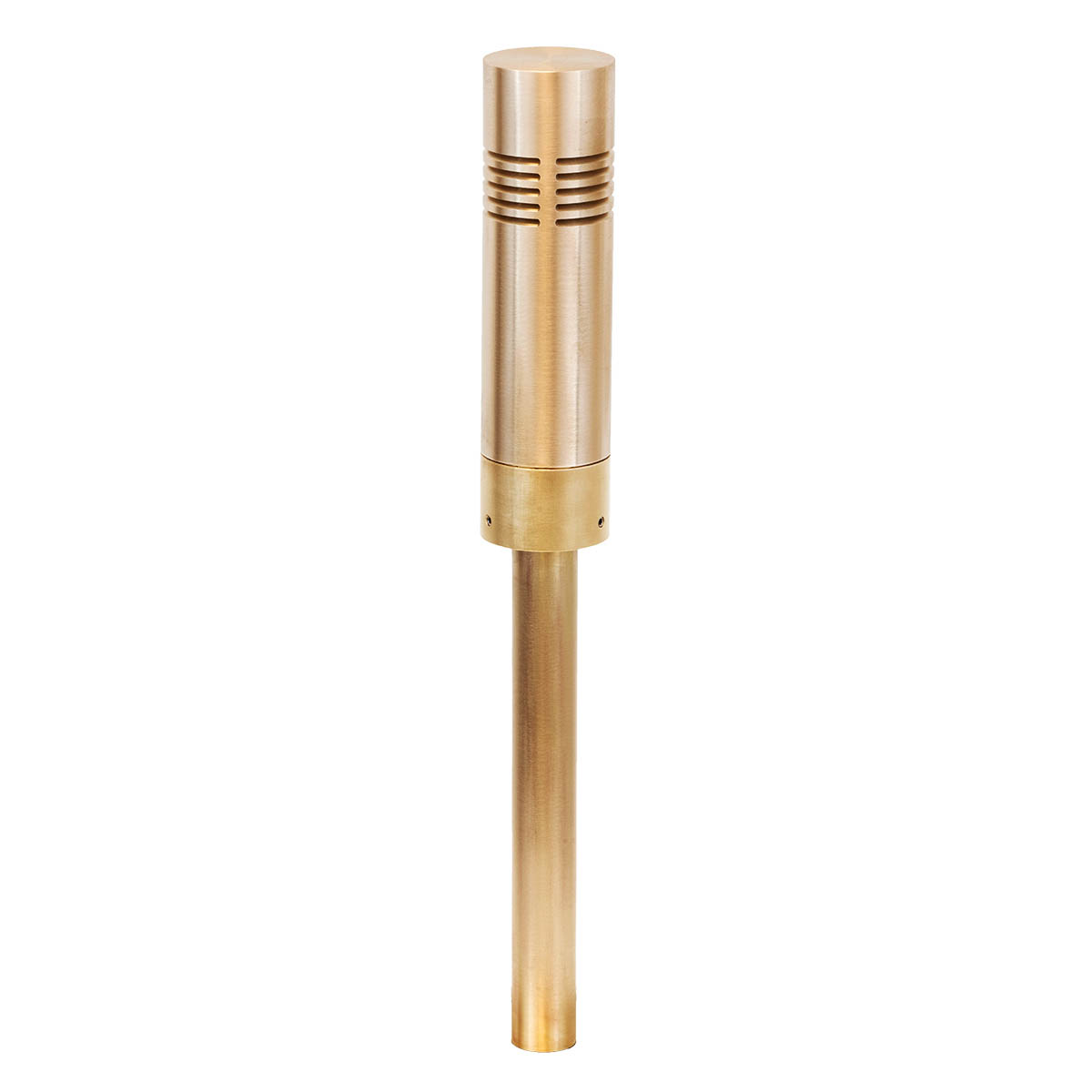

- 360° illumination option (MB1-360)
- Durable construction – all brass components
- Can be mounted on optional stems
- Custom fixture heights available
Voltage | 12V, 120V, 230V, 277V |
Lamps | Integrated LED |
Lumens | max 4.6 |
CCT | 1000 |
1500 | |
Dimensions | 1.6″ diameter x 16.9″ height (4.1 x 42.8 cm) |
MB1 Specifications
MB1-360 Specifications
12V Instructions
120V Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
FFWCC Certification Letter
LM79 | IES | SPECTRAL POWER DISTRIBUTION / BLUE LIGHT CONTENT |
MB1-17-2W-A-SP | MB1-17-2W-A-SP | MB1-2W-A |
* While delivered lumens is much lower than a typical pathlight, the MB1 features reflected light emerging from louvers milled at a 30° angle, resulting in zero glare. It is ideal for applications with low ambient light levels.
Integrated LED light engine
Cree XPE2
2W-A-SP | 2 Watt AMBER (1500K) |
2W-RO-SP | 2 Watt RED-ORANGE (1000K) |
BSB | Brass Surface Box for concrete or wood surface-mount applications |
GS2BC | Heavy-duty ground spike with cast brass cap |
GS3R | Heavy-duty ground spike with brass cap for telescoping fixture stem |
JB | Cast brass junction box (to be set in concrete) |
1/2″ brass pipe stem (required when using GS3R)
STEM-8 | 8″ [20cm] |
STEM-12 | 12″ [30cm] |
STEM-16 | 16″ [40cm] |
STEM-20 | 20″ [51cm] |
STEM-24 | 24″ [61cm] |
