R-Series Pathlights
(12V LED)

R-Series Pathlights
(12V LED)

Darksky

Beachside Lighting’s R-Series Pathlights have set the standard for durability in low-voltage walkway and area lighting.  The completely sealed fixture allows easy access to the brass lamp compartment for tool-free relamping.  Features include an 18-gauge copper shade, a 5 mm-thick frosted glass lens, and a riser made from schedule 40 brass pipe.  The lamping is G4 bi-pin LED.  The omnidirectional lamping allows for a lower profile, with most shade heights positioned so their lower edge is at the bottom of the glass, resulting in low-to-no glare.

All fixtures are CSA Listed to US and Canadian safety standards, file #190030.

  • 12 Volts AC
  • Remote transformer required
  • Durable construction: all brass components and copper shades
Voltage 12V AC
Lamps Omnidirectional LED
CCT 1500K
2700K
3000K
2″
8″
12″ Standard
16″
20″

G4 bi-pin LED

2W-A-G4 2 Watt AMBER (1500K) TURTLE FRIENDLY
3W-G4-27 3 Watt warm white (2700K)
3W-G4-30 3 Watt warm white (3000K)
HSR Half shield for 180° illumination
HSR-2.5 Half shield for 180° illumination for R-005A and R-008 models
BSB Brass Surface Box for concrete or wood surface-mount applications
GS2 Heavy-duty ground spike
GS2BC Heavy-duty ground spike with cast brass cap
GS3R Heavy-duty ground spike with brass cap for telescoping riser
GS4 Standard ground spike with cast brass cap
JB Cast brass junction box

R-Series Shade Styles

R-series Shade 3 Pathlights

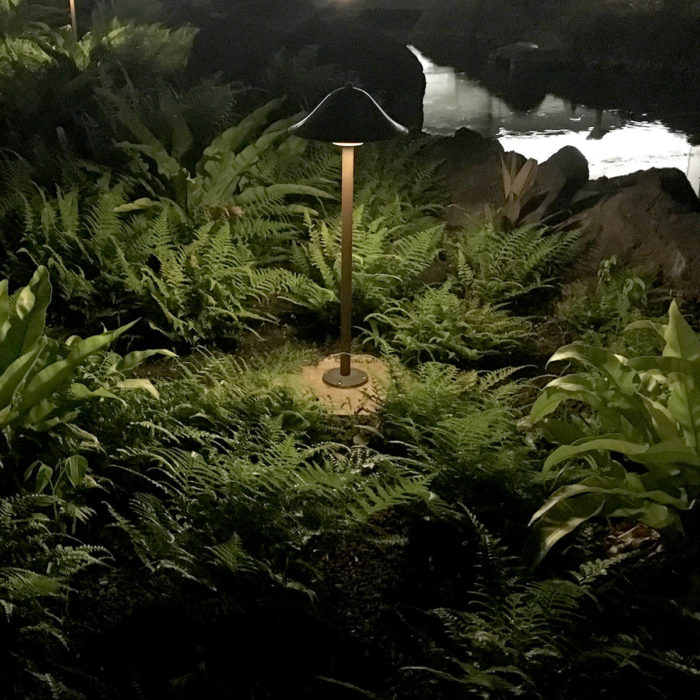

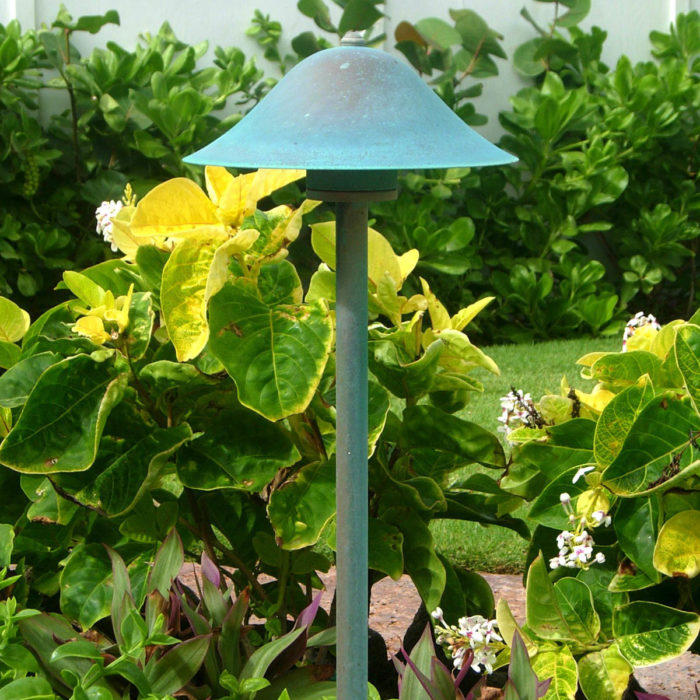

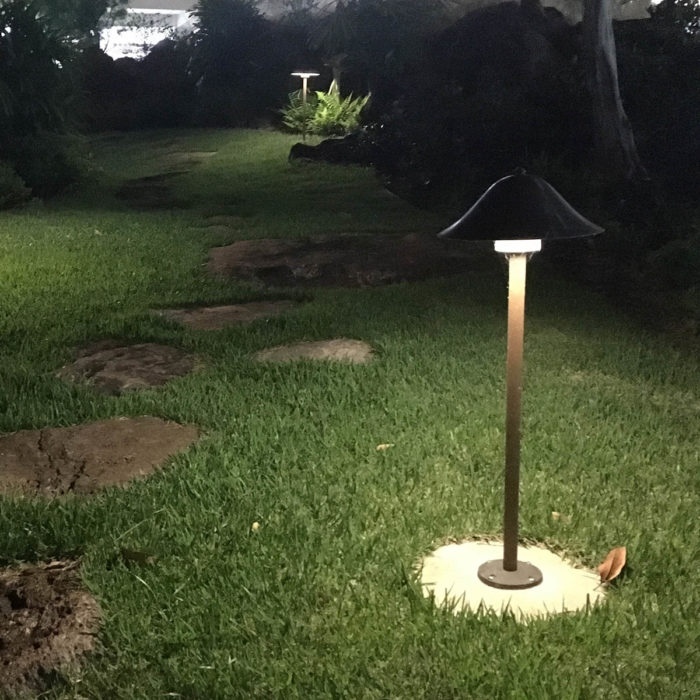

R-003
R-series Shade 3a Pathlights

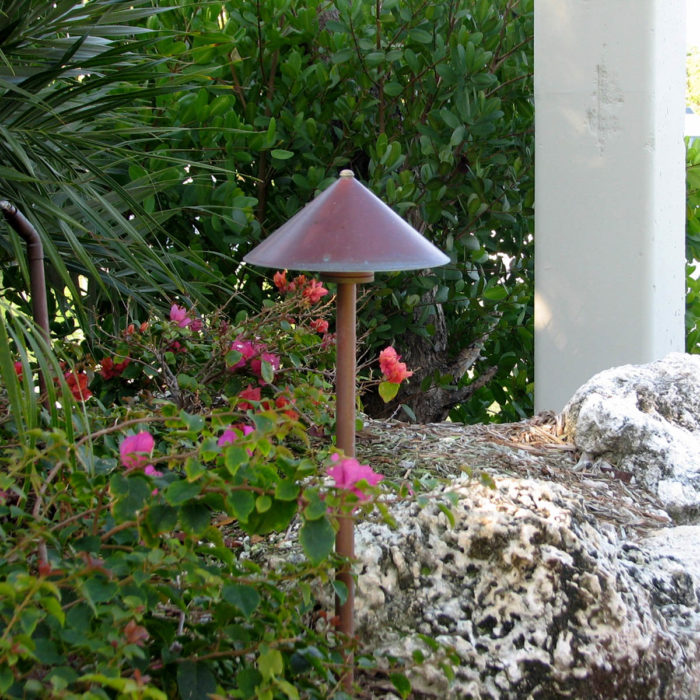

R-003A
R-series Shade 5 Pathlights
R-005
R-series Shade 5a Pathlights

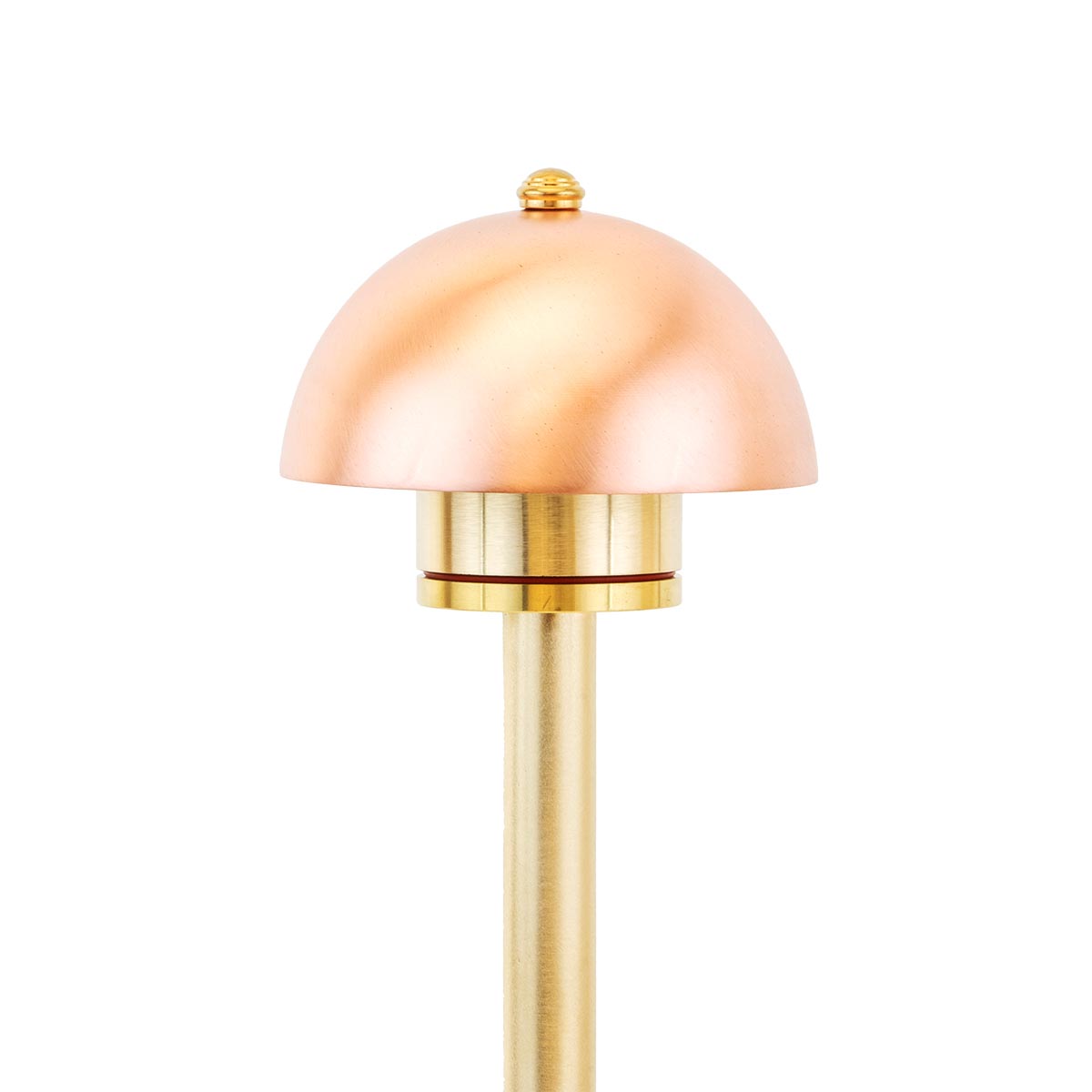

R-005A
R-series Shade 7 Pathlights

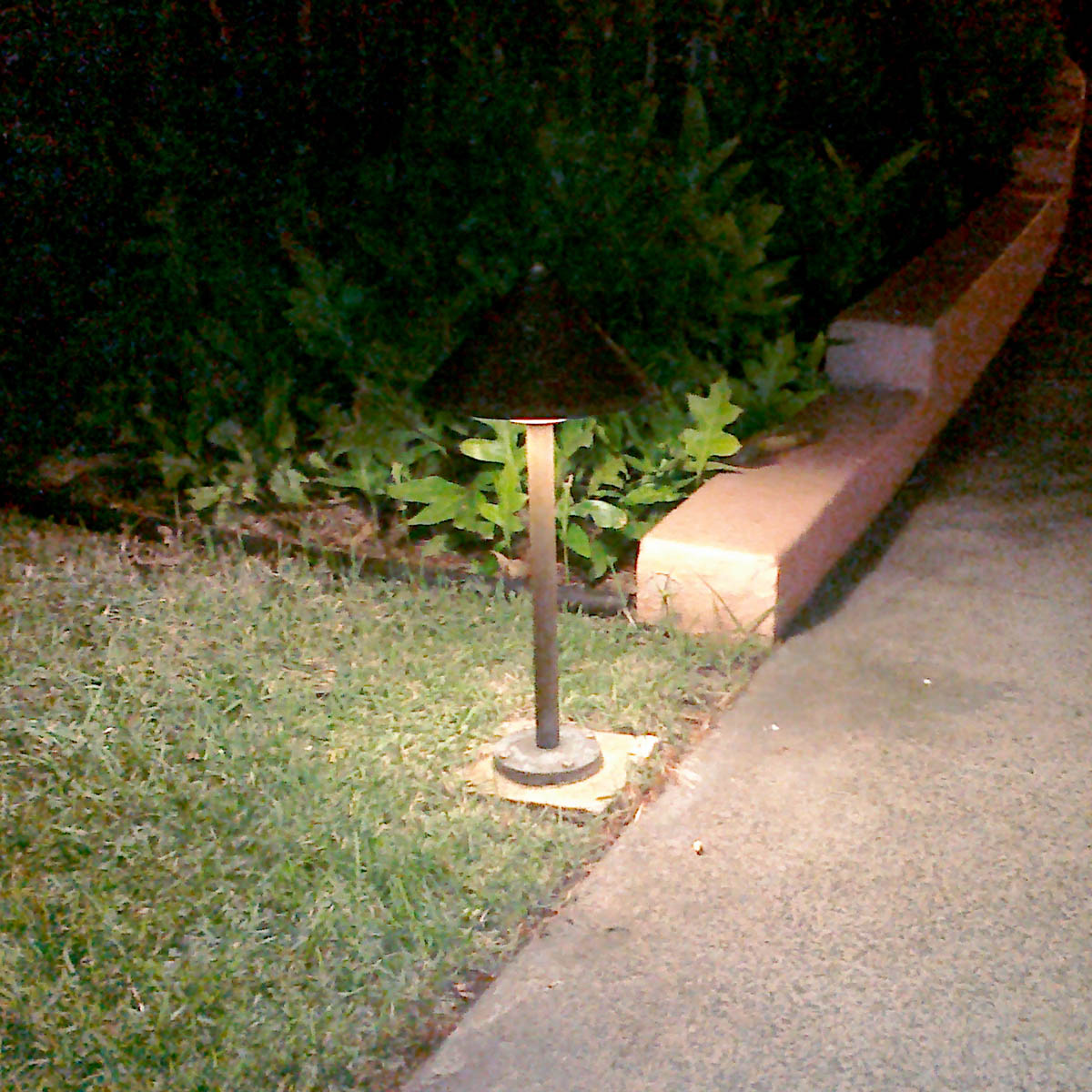

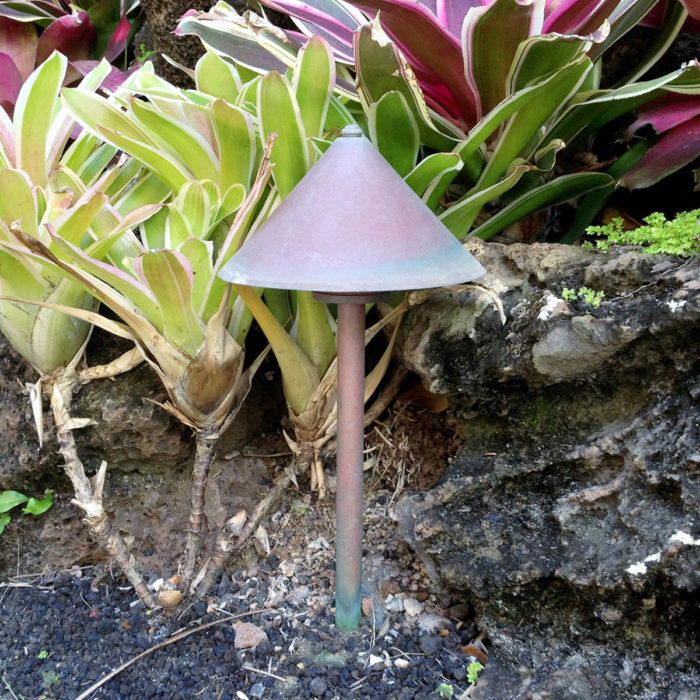

R-007
R-series Shade 8 Pathlights
R-008
R-series Shade 19 Pathlights
R-019
