R3A / R-003A Turtle Friendly
(12V G4 LED, 12/120/230V MR16 LED)

R3A / R-003A Turtle Friendly
(12V G4 LED, 12/120/230V MR16 LED)

FFWCC Wildlife Certification # 2018-029

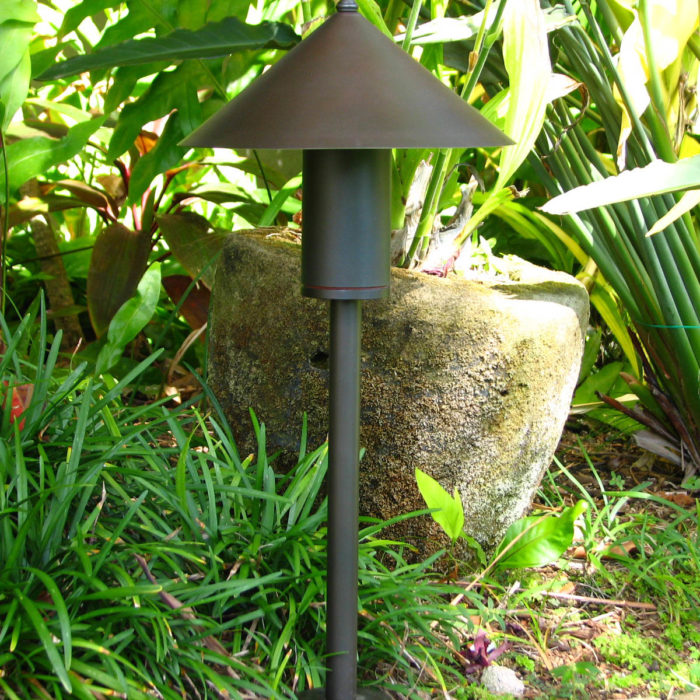

Beachside Lighting’s R-Series Pathlights have set the standard for durability in low-voltage walkway and area lighting.  The completely sealed fixture allow easy access to the brass lamp compartment for tool-free relamping. Features include an 18-gauge copper shade, a 5mm thick frosted glass lens, and a riser made of schedule 40 brass pipe.  Available stem heights are 8, 12, 16, and 20 inches (12″ standard).  Custom heights are available.

Note that the R-Series pathlights have different photometrics as indicated on their individual specification sheets.

  • R3A (long body, left image) uses MR16 lamp
  • R-003A (short body, right image) uses 12V G4 lamp only, remote transformer required
  • Durable construction: all brass components and copper shades
  • CSA Listed to US and Canadian safety standards, file # 190030
Voltage R3A: 12V, 120V, 230V
R-003A: 12V
Lamps G4 LED, MR16 LED
CCT 1000K
1500K



12 Volts, Remote transformer required
GU5.3 MR16 LED

5W-A 5 Watt AMBER (1500K)

Integrated LED light engine
Cree XPE2 triple LED

7W-A 7 Watt AMBER (1500K)
8W-RO 8 Watt RED-ORANGE (1000K)

120 & 230 Volts
GU10 MR16 LED

5W-A 5 Watt AMBER (1500K)

G4 bi-pin LED

2W-A-G4 2 Watt AMBER (1500K)
GS2 Heavy-duty ground spike
GS2BC Heavy-duty ground spike with cast brass cap
GS3R Heavy-duty ground spike with brass cap for telescoping riser
GS4 Standard ground spike with cast brass cap (12V only)
JB Cast brass junction box
HSR Half shield for 180° illumination
