STL
(12V, 100-277V LED)

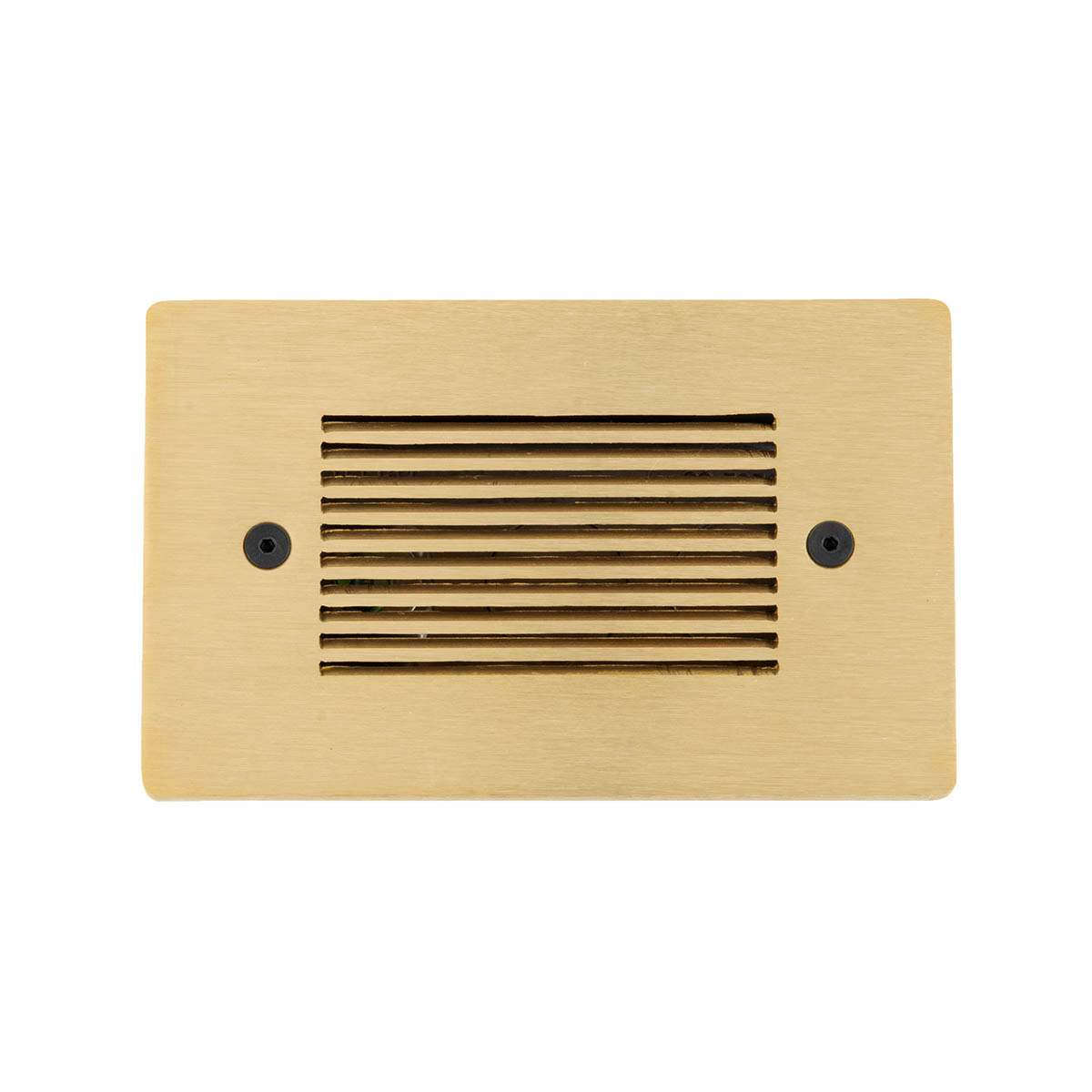

Solid Brass Steplight
The STL is a compact steplight that fits in a standard single-gang junction box.
| Voltage | 12V, 120V (dimmable), 100-277V (non-dimmable) |
| Lamps | Integrated LED |
| Lumens | 14 max |
| CCT | 1000K, 1500K, 1700K, 2700K, 3000K |
| Dimensions | Trim size: 3 x 4 x 0.34″ (7.5 x 12.1 x 0.9 cm) |
| Junction Box depth: 2.2″ (5.6 cm) |
3 Watt • Remote transformer required
| A | AMBER (1700K)* |
| RO | RED-ORANGE (1000K)* |
| 27 | Warm White (2700K) |
| 30 | Warm White (3000K) |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
Module consists of 12 LEDs with integral driver circuit
| A | 1 Watt | AMBER (1700K)*, non-dimmable, 100-277V |
| WW | 2.5 Watt | Warm White (3000K), dimmable, 120V |
| MV | 2.8 Watt | Warm White (3000K), non-dimmable, 120V |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
| CTO-1/4-STL | Color Temperature Orange Warming Filter, Changes 3000K to 2700K or 2700K to 2450K |

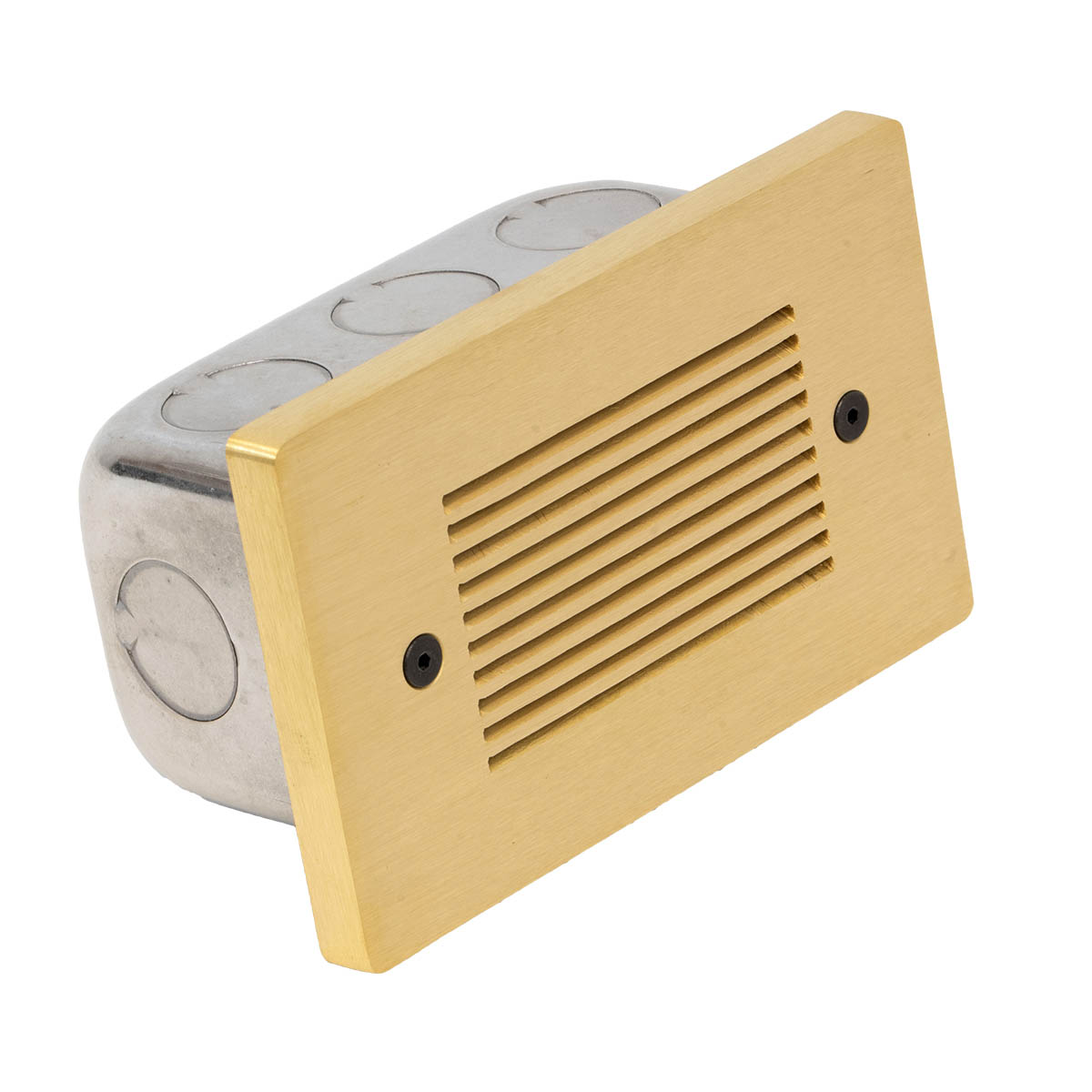

| SGBOX-SS | Single-gang stainless steel junction box |
Unfinished is standard—no specification required
| FIN-BK | Black Acid Finish |
| FIN-DB | Dark Bronze Acid Finish |

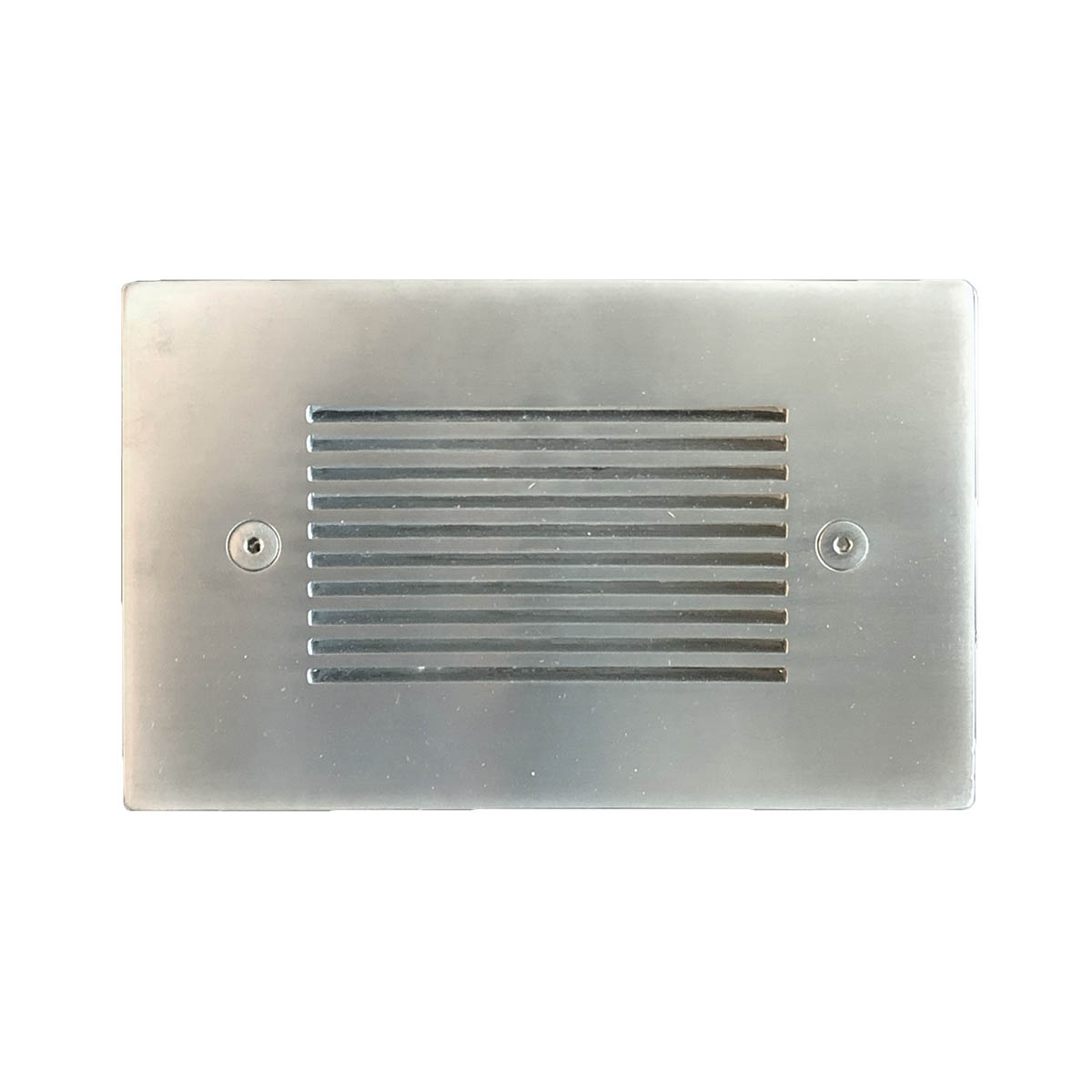

| FIN-NA | Nickel Acid Finish |
| FIN-WH | White Powder Coating |
Watch a video of the STL dimming:
