W16
(120/230/277V MR16 Metal Halide)

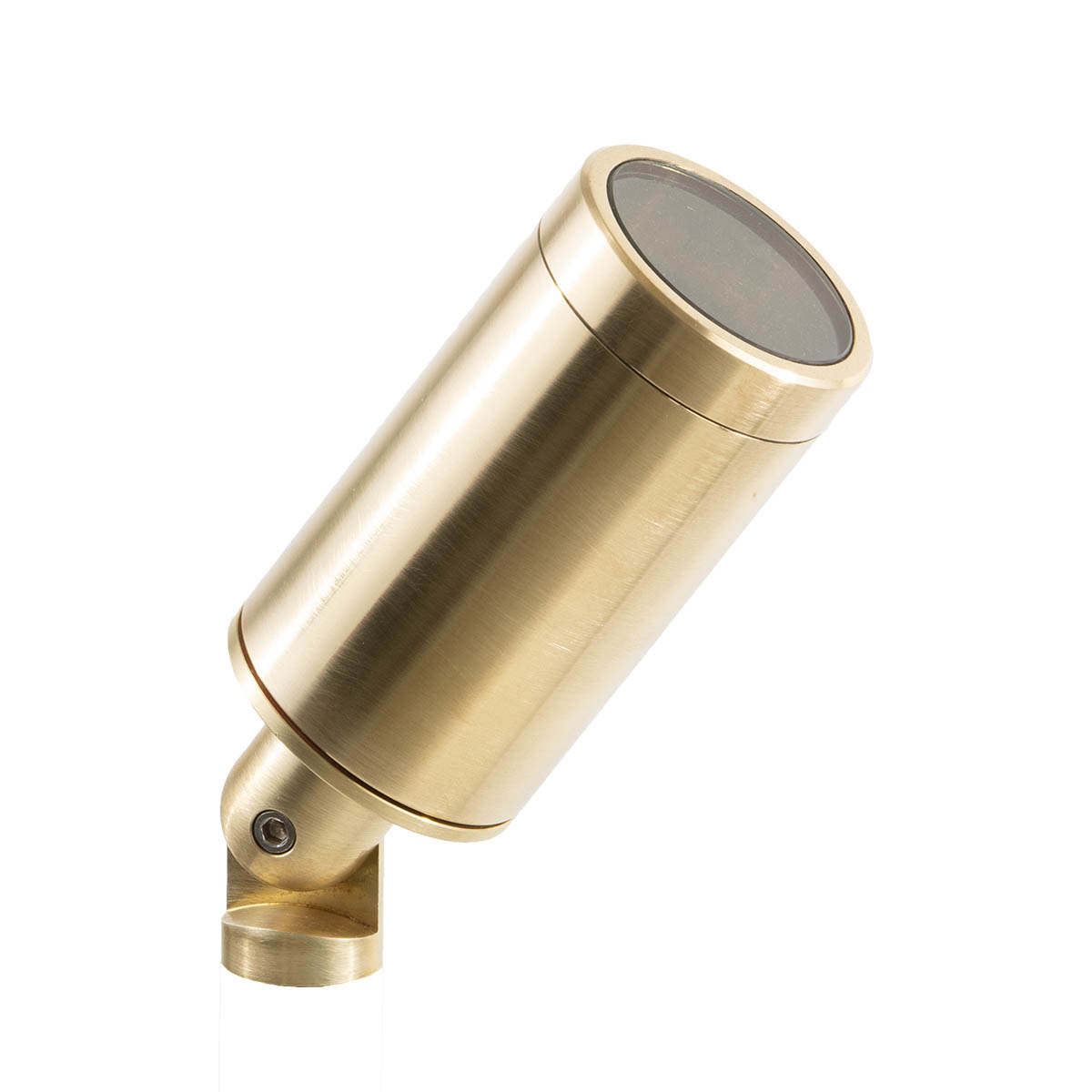

Brass directional fixture for line-voltage applications.
The W16 combines the punch of metal halide with the small footprint of an MR16 lamp.
- Durable construction: all brass components
- Includes Sure Aim (SA) locking rotation accessory as standard
- CSA Listed to US and Canadian safety standards, file # 190030
| Voltage | 120V, 230V, 277V |
| Lamps | MR16 Metal Halide |
| CCT | 3000K |
| Dimensions | Diameter: 2.4″ (6 cm) |
| Overall length from knuckle pivot: 4.9″ (12.4 cm) |
GX10 MR16 • Ceramic Metal Halide (3000K)
| MH20MR16SP | 20 Watt | 12° spot |
| MH20MR16NFL | 20 Watt | 25° narrow flood |
| MH20MR16FL | 20 Watt | 42° flood |
| MH39MR16SP | 39 Watt | 12° spot |
| MH39MR16NFL | 39 Watt | 25° narrow flood |
| MH39MR16FL | 39 Watt | 42° flood |
| BGS | Brass glare shield, 45° cutoff |
| BGSF | Brass glare shield, full cutoff |
| FR | Frosted lens |
| HL1 | Honeycomb louver, 1/8” (3mm) thick |
| PR | Prismatic spread lens |
| RT | Rectilinear spread lens |
| GS2 | Heavy duty ground spike |
| GS2BC | Heavy duty ground spike with cast brass cap |
| JB | Cast brass junction box |
| TMJB | Brass, tree-mounted junction box, single fixture mount; stainless steel strap |
| TMJBX | Brass, tree-mounted junction box, single fixture mount; stainless steel screws |
| RB | In-grade, remote Metal Halide ballast |
| SB | Above-grade, remote Metal Halide ballast |
