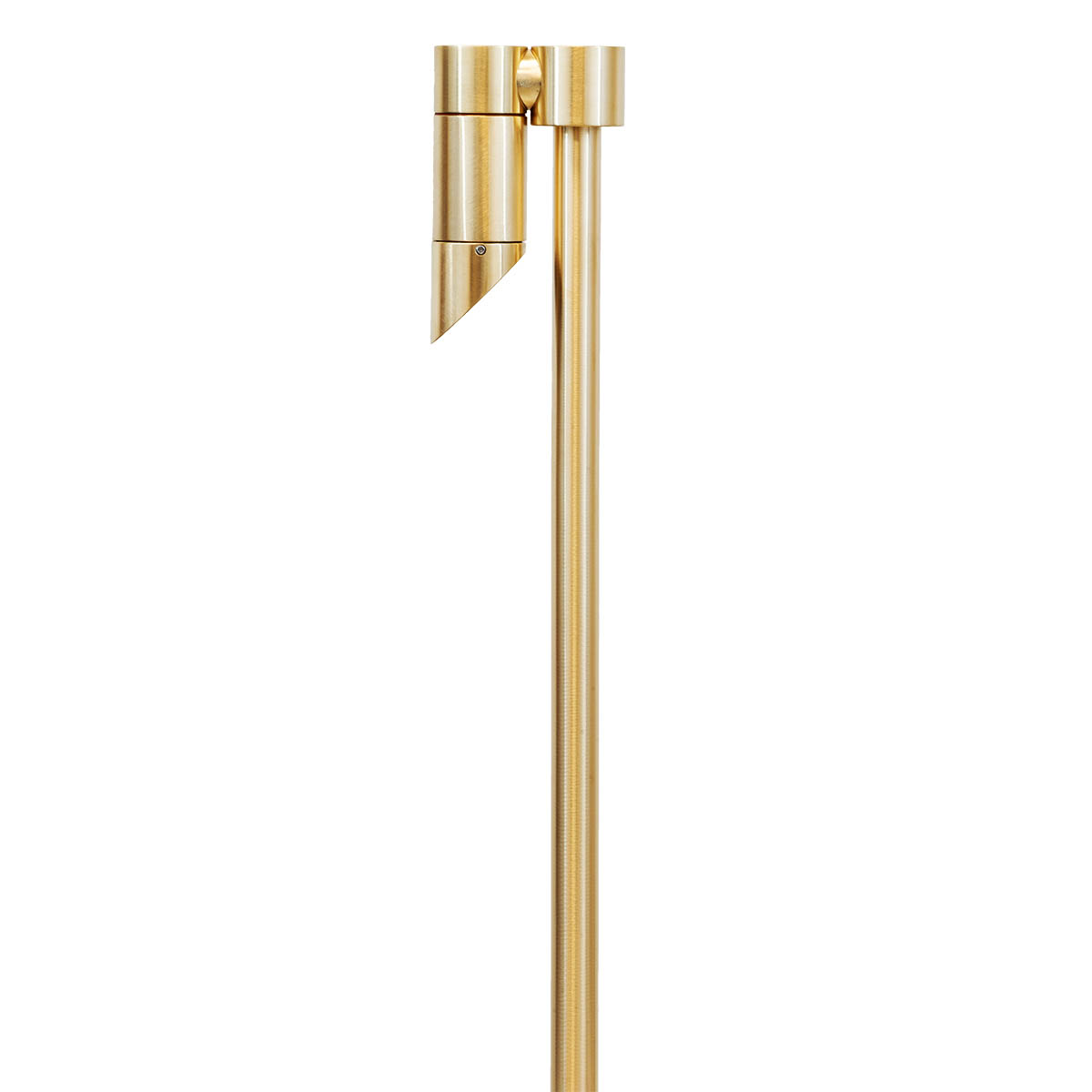

Solid Brass, Low-Voltage Downlight on Brass Stem
FFWCC Wildlife Certification # 2019-232
- Remote transformer required
- Ideal for walkways and tall groundcover
- 20″ (51cm) standard overall height; custom heights available
Voltage | 12 Volt AC/DC with integral driver (9V-15V Input, dimmable below 9V) |
Lamps | Integrated LED |
Lumens | max 32 |
CCT | 1000K |
1700K | |
Dimensions | Lamp Housing: 3.4″ x 1.6″ diameter (8.7 x 4.2 cm) |
Specifications
Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
FFWCC Certification Letter
LM79 | IES | SPECTRAL POWER DISTRIBUTION / BLUE LIGHT CONTENT |
X1-20-2W-A-NO | X1-20-2W-A-NO | X1-20-2W-A-NO |
* The X1-S shares the same photometrics as the X1 directional bollard. They feature our “NO-OPTIC” cap that incorporates frosted glass over an LED without an optic, allowing the widest beam possible. While delivered lumens is much less than a directional fixture with a concentrated beam, it is ideal as an even, diffuse source so close to the ground.
Integrated LED Light Engine
Triac dimmable: MLV >6% typ
Cree XPE2 • Amber (1700K) & Red-Orange (1000K)
2W-A-NFL | 2 Watt AMBER narrow flood | 14° beam / 31° field angle |
2W-A-FL | 2 Watt AMBER flood | 29° / 61° |
2W-A-NO | 2 Watt AMBER | 46° / 114° |
2W-RO-NFL | 2-Watt RED-ORANGE narrow flood | 13° / 28° |
2W-RO-FL | 2-Watt RED-ORANGE flood | 32° / 56° |
2W-RO-NO | 2-Watt RED-ORANGE | 49° / 114° |
BSB | Brass Surface Box for surface-mount applications on concrete or wood |
GS2 | Heavy-duty ground spike |
GS2BC | Heavy-duty ground spike with cast brass cap |
GS3R | Heavy-duty ground spike with cast brass cap for telescoping riser |
JB | Cast brass junction box |
BGS8 | Brass glare shield, 45° cutoff |
BGS8F | Brass glare shield, full cutoff |
