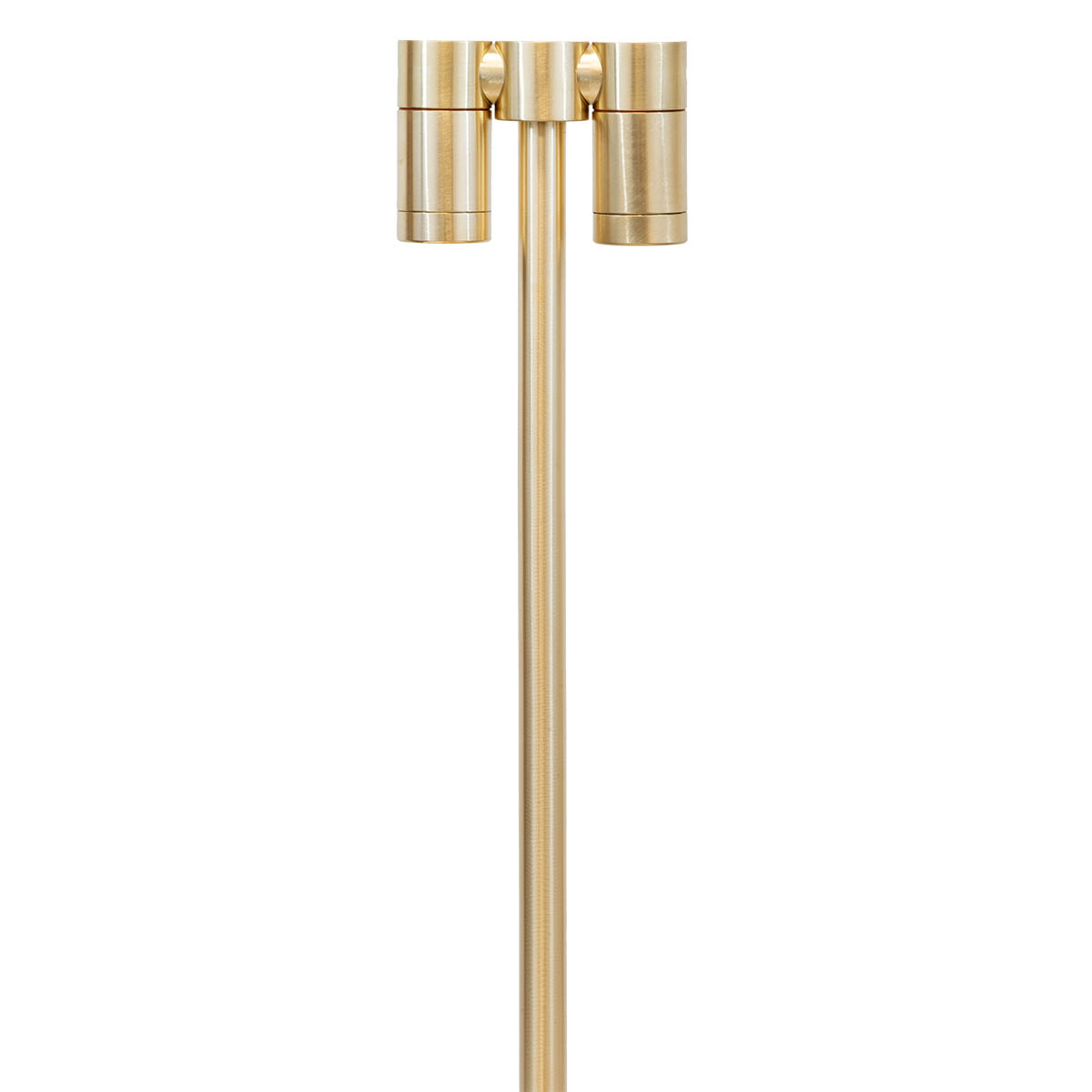

X2-S Turtle Friendly Pathlight
(12V Integrated LED)

X2-S Turtle Friendly Pathlight
(12V Integrated LED)


Solid Brass, Low-Voltage, Dual-Head Downlight on Brass Stem

FFWCC Wildlife Certification # 2019-232


  • Remote transformer required
  • Ideal for walkways and tall groundcover
  • 20″ (51cm) standard overall height; custom heights available
Voltage 12 Volt AC/DC with integral driver (9V-15V Input, dimmable below 9V)
Lamps Integrated LED
Lumens max 64
CCT 1000K
Dimensions Lamp Housings: 3.4″ x 1.6″ diameter (8.7 x 4.2 cm)
X1-20-2W-A-NO X1-20-2W-A-NO X1-20-2W-A-NO

* The X2-S features our “NO-OPTIC” cap that incorporates frosted glass over an LED without an optic, allowing the widest beam possible. While delivered lumens is much less than a directional fixture with a concentrated beam, it is ideal as an even, diffuse source so close to the ground.  X2-S is identical to tested X1 except for the addition of a second lamp/housing and thinner stem.

Integrated LED Light Engine
Triac dimmable: MLV >6% typ
Cree XPE2  • Amber (1700K) & Red-Orange (1000K)

2W-A-NFL 2 Watt AMBER narrow flood 14° beam / 31° field angle
2W-A-FL 2 Watt AMBER flood 29° / 61°
2W-A-NO 2 Watt AMBER 46° / 114°
2W-RO-NFL 2-Watt RED-ORANGE narrow flood 13° / 28°
2W-RO-FL 2-Watt RED-ORANGE flood 32° / 56°
2W-RO-NO 2-Watt RED-ORANGE 49° / 114°
BSB Brass Surface Box for surface-mount applications on concrete or wood
GS2 Heavy-duty ground spike
GS2BC Heavy-duty ground spike with cast brass cap
GS3R Heavy-duty ground spike with brass cap for telescoping fixture riser
JB Cast brass junction box

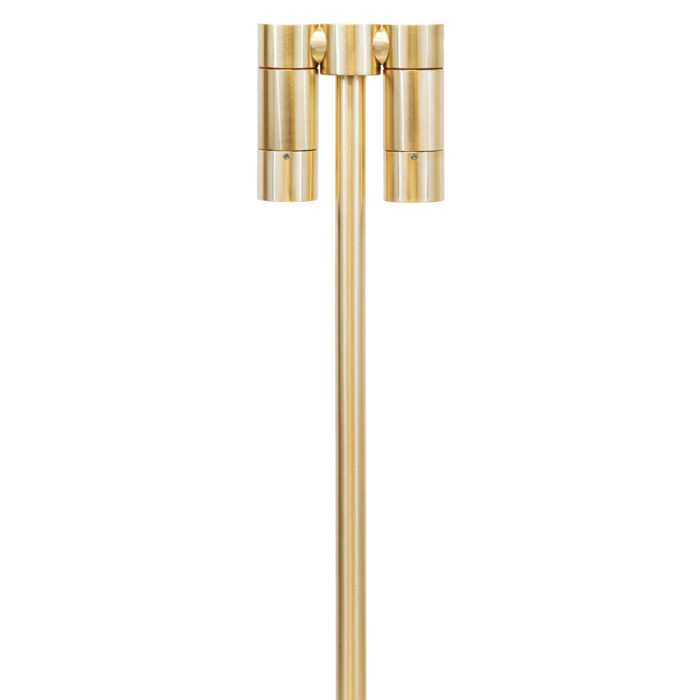

BGS8 Brass glare shield, 45° cutoff
BGS8F Brass glare shield, full cutoff
