X2 Turtle Friendly Mini Bollard
(12V Integrated LED)

X2 Turtle Friendly

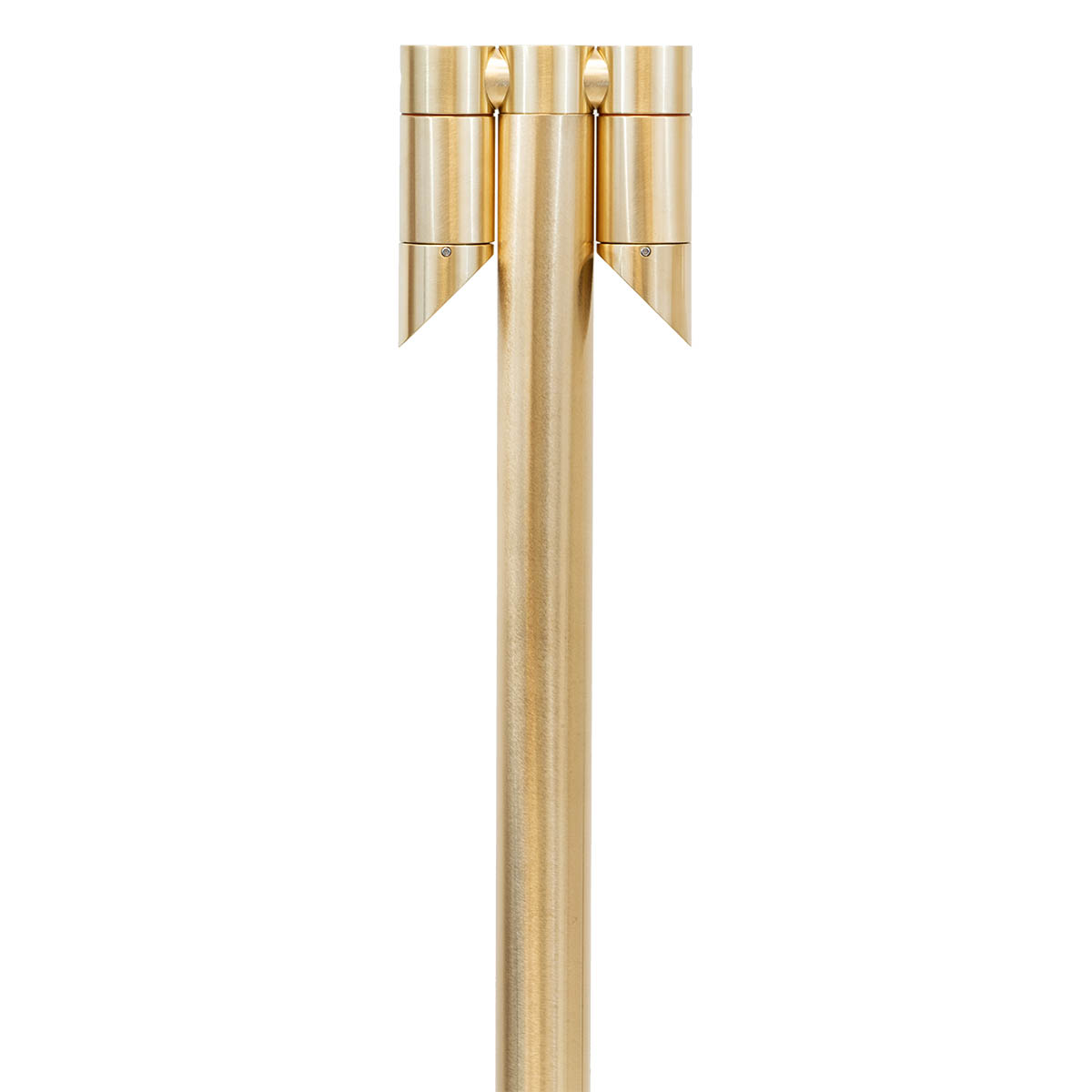

X2-bgs8 Turtle Friendly
X2–bgs8f Turtle Friendly

X2 Turtle Friendly Mini Bollard
(12V Integrated LED)

Darksky

Solid Brass, Low-Voltage, Dual-Head Mini Bollard Downlight


FFWCC Wildlife Certification # 2019-232



  • Remote transformer required
  • Ideal for walkways and tall groundcover
  • 20″ (51cm) standard overall height; custom heights available
Voltage 12 Volt AC/DC with integral driver (9V-15V Input, dimmable below 9V)
Lamps Integrated LED
Lumens max 64
CCT 1000K
1700K
Dimensions Lamp Housings: 3.4″ x 1.6″ diameter (8.7 x 4.2 cm)
LM79 IES SPECTRAL POWER DISTRIBUTION /
BLUE LIGHT CONTENT
X1-20-2W-A-NO X1-20-2W-A-NO X1-20-2W-A-NO

* The X2 features our “NO-OPTIC” cap that incorporates frosted glass over an LED without an optic, allowing the widest beam possible. While delivered lumens is much less than a directional fixture with a concentrated beam, it is ideal as an even, diffuse source so close to the ground.  X2 is identical to tested X1 except for the addition of a second lamp/housing.

Integrated LED Light Engine
Triac dimmable: MLV >6% typ
Cree XPE2  • Amber (1700K) & Red-Orange (1000K)

2W-A-NFL 2 Watt AMBER narrow flood 14° beam / 31° field angle
2W-A-FL 2 Watt AMBER flood 29° / 61°
2W-A-NO 2 Watt AMBER 46° / 114°

2W-RO-NFL 2-Watt RED-ORANGE narrow flood 13° / 28°
2W-RO-FL 2-Watt RED-ORANGE flood 32° / 56°
2W-RO-NO 2-Watt RED-ORANGE 49° / 114°
BSB Brass Surface Box for surface-mount applications on concrete or wood
GS2BC Heavy-duty ground spike with cast brass cap
JB Cast brass junction box
BGS8 Brass glare shield, 45° cutoff
BGS8F Brass glare shield, full cutoff

Optical Accessories

Mounting Accessories – Landscape
