Z1
(12V Integrated LED)

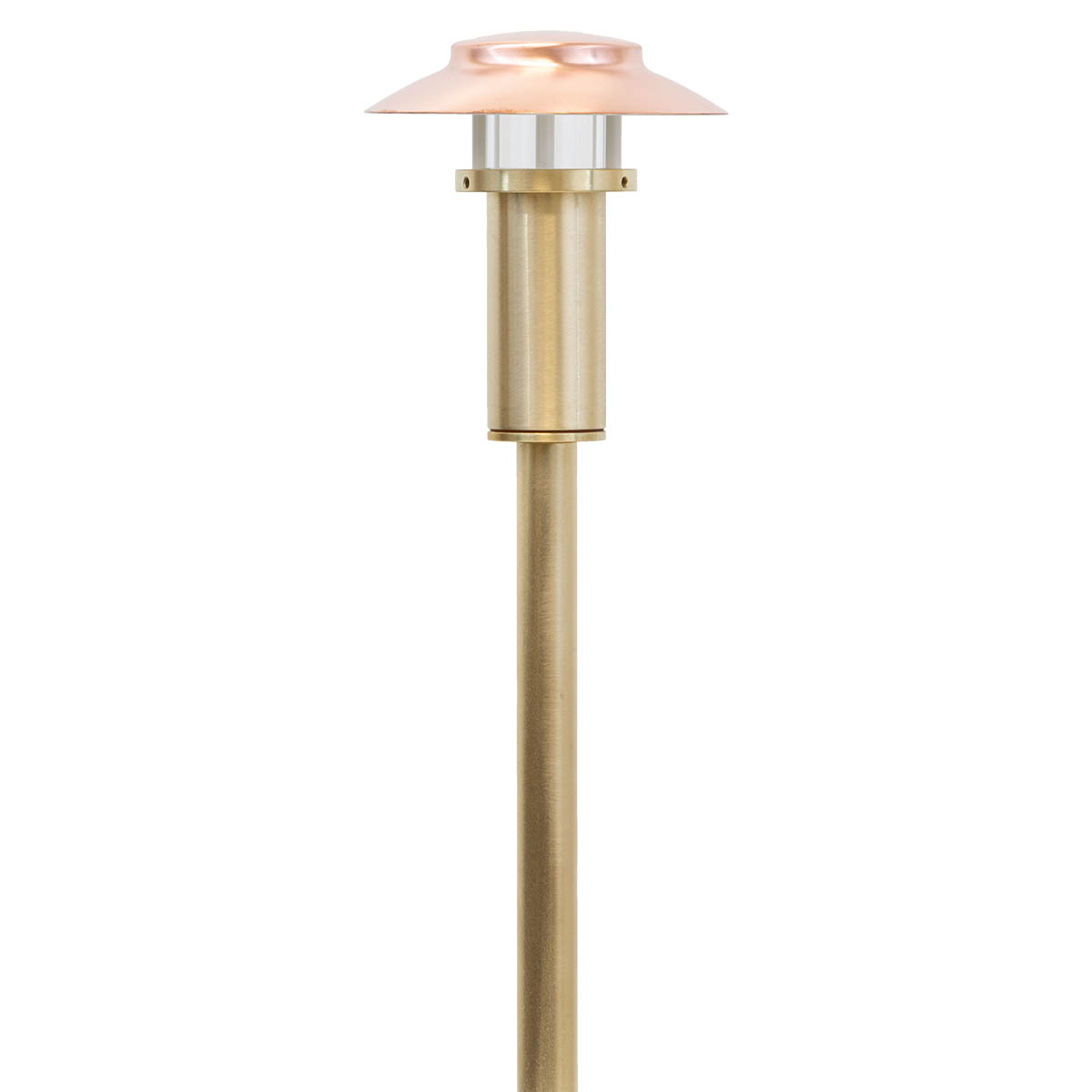

Compact Pathlight
- Remote transformer required
- Durable construction: all brass components with copper shade
- CSA Listed to US and Canadian safety standards, file #190030
| Voltage | 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V) |
| Lamps | Integrated LED |
| Lumens | 86 |
| CCT | 1000 |
| 1500 | |
| 2700 | |
| 3000 |
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
| 8″ | |
| 12″ | Standard |
| 16″ | |
| 20″ |
Overall height with standard 12-inch stem: 17 in. (43.1 cm)
Custom stem heights available
Integrated LED Light Engine
Triac dimmable: MLV >6% typ., ELV >16% typ.
Cree XPE2
| 2W-A | 2 Watt AMBER (1500K) |
| 2W-RO | 2 Watt RED-ORANGE (1000K) |
Cree XPG2
| 3W | 3 Watt Warm White (3000K)** |
| 4W | 3 Watt Warm White (3000K)** |
** Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-2700K“
| GS2 | Heavy-duty ground spike |
| GS2BC | Heavy-duty ground spike with cast brass cap |
| GS3R | Heavy-duty ground spike with brass cap for telescoping riser |
| GS4 | Standard ground spike with cast brass cap |
| JB | Cast brass junction box |
| HSZ | Half shield for 180° illumination |
