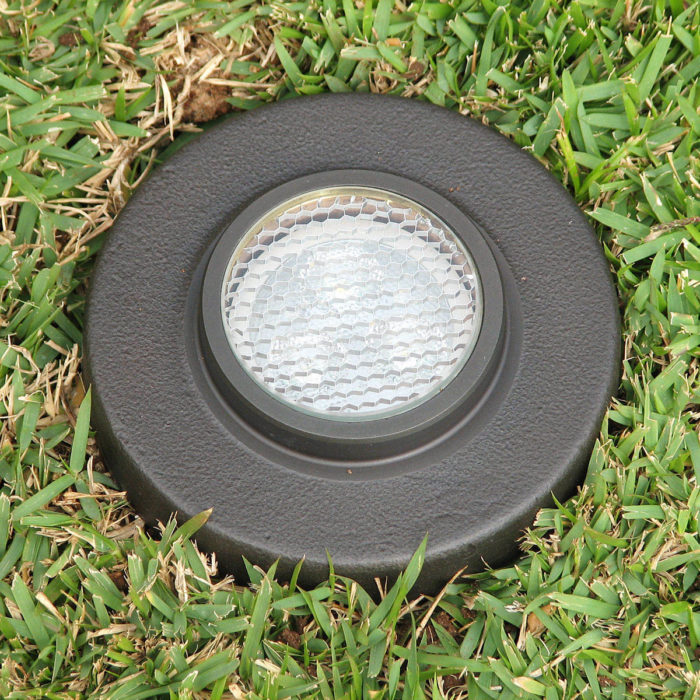

L-009 Dark Bronze In-grade
L-009 In-grade3

L-009
(12V MR16 LED)

All Brass In-Grade Uplight

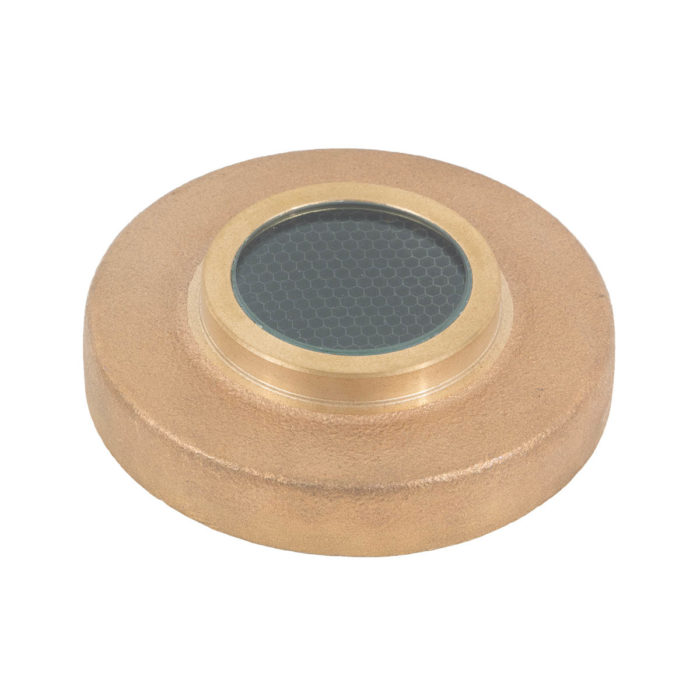

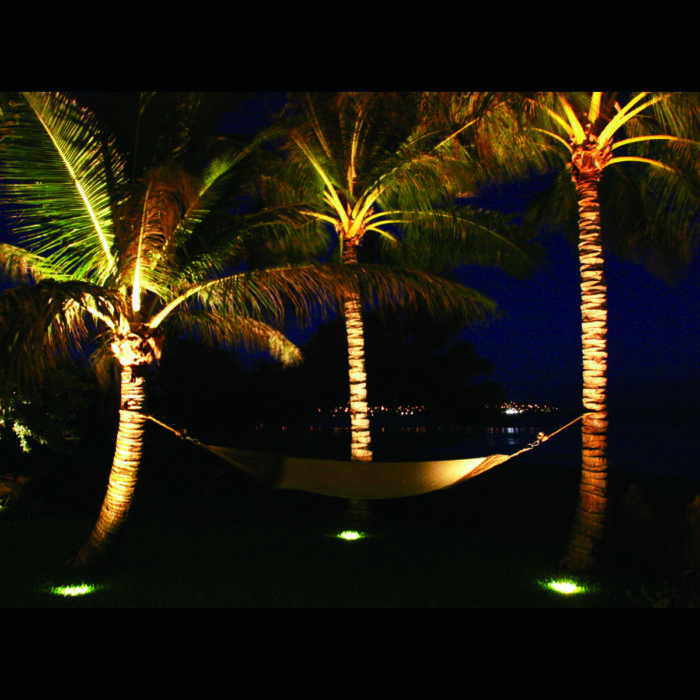

The L-009 is a fixed-position brass well light for in-ground uplighting applications where a low profile is needed.  An optional brass glare shield can be installed in the field.

  • Remote transformer required.
Voltage 12V AC
Lamps MR16 LED
Lumens 525 max
CCT 1500K
CCT 2700K
CCT 3000K
Dimensions 4.4″ dia x 1.2″ exposed height (11.1 x 2.9 cm)
7.3” depth below grade (18.5 cm)

GU5.3 MR16 LED
AMBER (1500K) and Warm White (2700/3000K)*

5W-A-NFL 5 Watt AMBER 25° narrow flood

5W-SP 5 Watt 15° spot
5W-NFL 5 Watt 25° narrow flood
5W-FL 5 Watt 40° flood
5W-FL/60 5 Watt 60° flood
5W-WFL 5 Watt 100° flood

7W-FL/60 7 Watt 60° flood

8W-SP 8 Watt 10° spot
8W-NFL 8 Watt 25° narrow flood
8W-FL 8 Watt 36° flood

* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“

A 1/8” (3mm) thick honeycomb louver is standard.

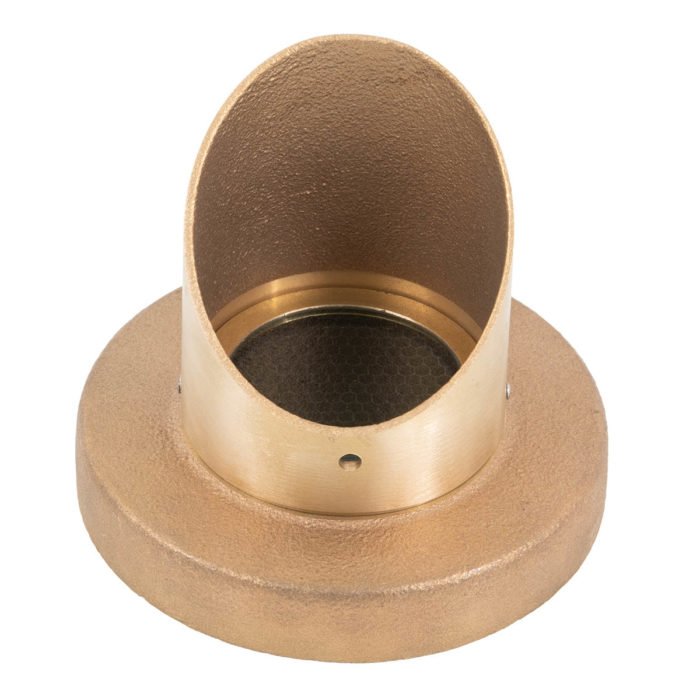

BGS9 Brass glare shield
FR Frosted lens
HL2 Honeycomb louver, 1/4″ (6mm) thick
PR Prismatic spread lens
RT Rectilinear spread lens
SL Solite soft focus lens

Optical Accessories
