L-011-S2
(12V/120V/230V MR16 LED)

Brass Double Directional on Riser

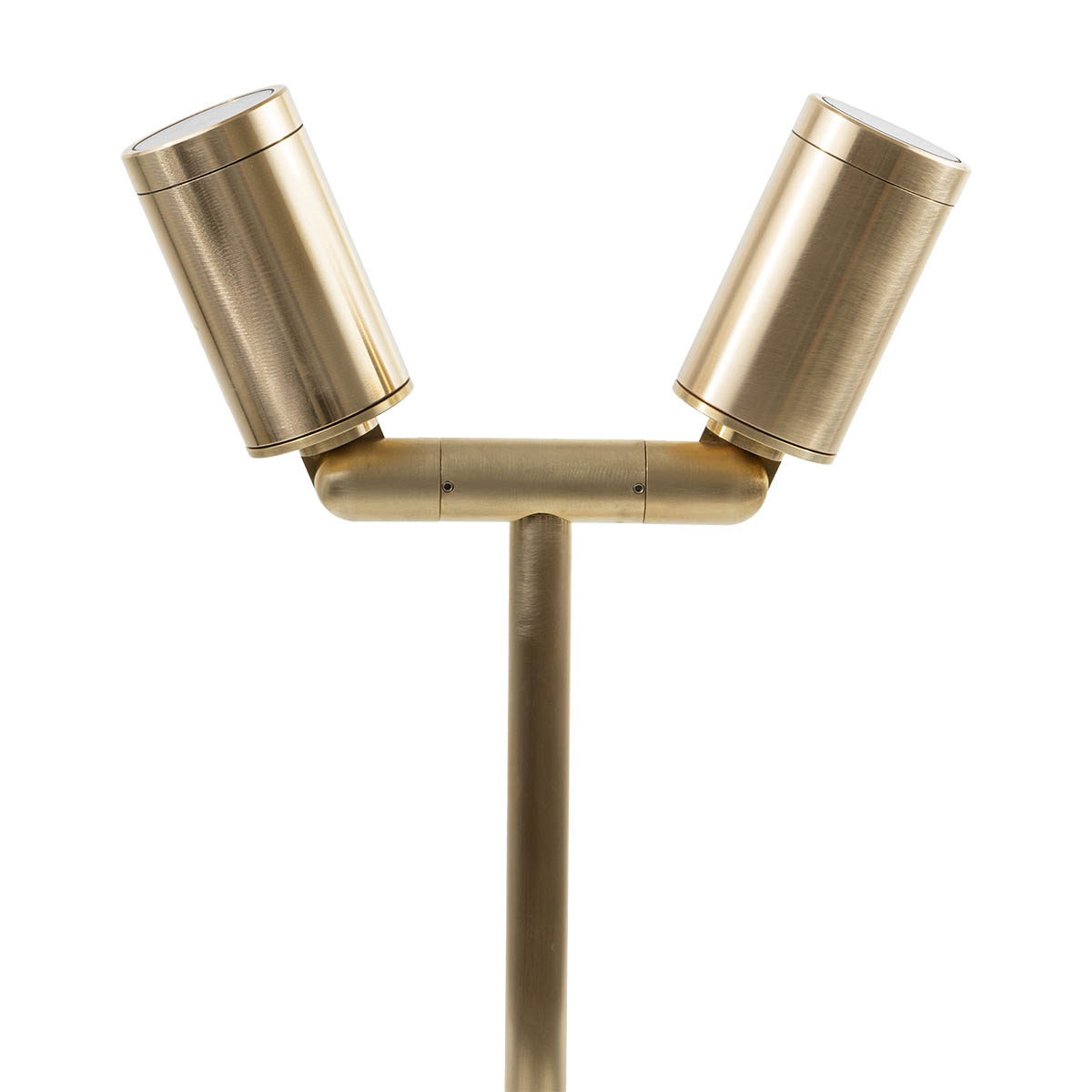

The L-011-S2 is a double directional directional luminaire on a brass riser for use with MR16 drop-in lamps.

Can be aimed up or down.

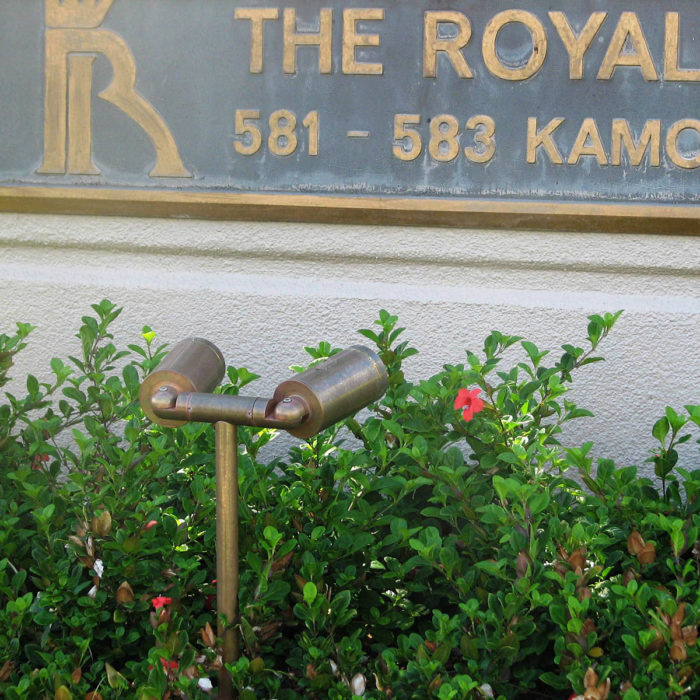

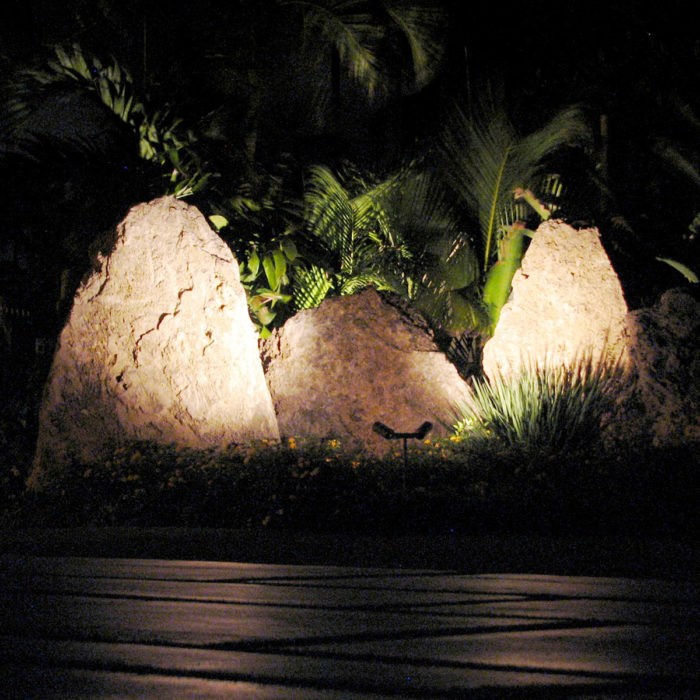

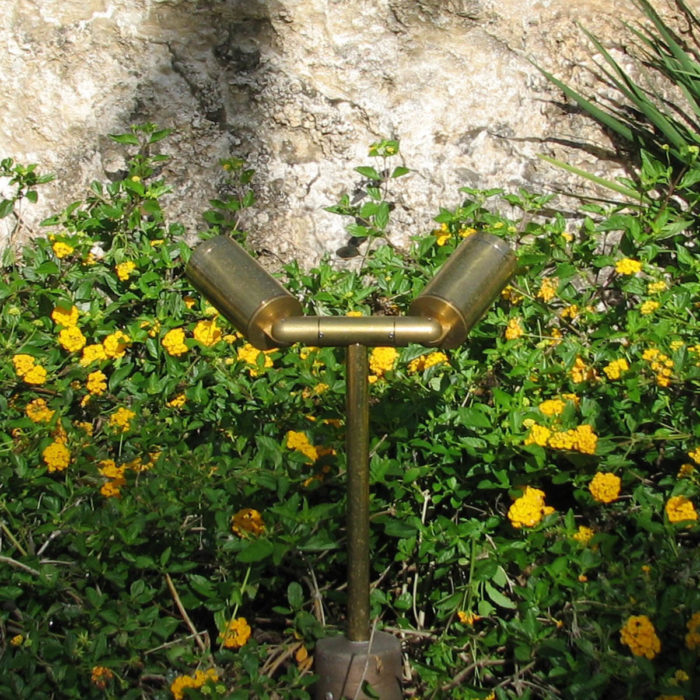

Ideal for tall groundcover.
Lamps are recessed for glare reduction on 12V unshielded versions. Ideal for lamps with a maximum beam spread of 60°.
L-011-S2-WA (wide angle) version available with lamp positioning closer to glass for lamps greater than 60° (unshielded 12V versions only).

Voltage	12V, 120V, 230V
Lamps	MR16 LED
Lumens	630 max
CCT	1500K
	2700K
	3000K
Dimensions	Diameter: 2.4″ (6 cm)
	Overall length from knuckle pivot: 4.9″ (12.4 cm)

L-011-S2 Specifications (12V & 120V / 230V)
L-011-WA-S2 Specifications (12V only)

12V Instructions
120V Instructions

8, 12, 16, or 20” (20, 30, 40, or 51cm) and Custom

GU5.3 MR16 LED
AMBER (1500K) and Warm White (2700/3000K)*

* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “5W-NFL-27“

GU10 MR16 LED
AMBER (1500K) and Warm White (2700/3000K)*

* Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “8W-NFL-27-120V“

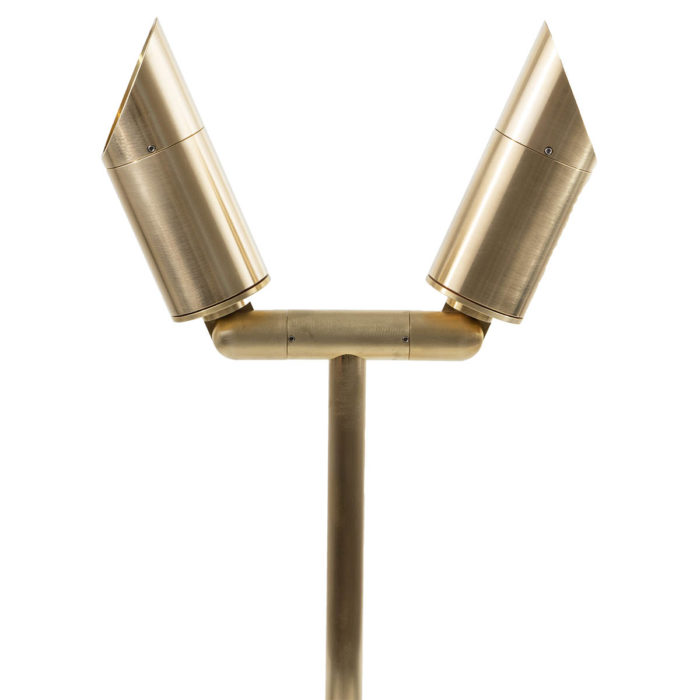

BGS	Brass glare shield, 45° cutoff

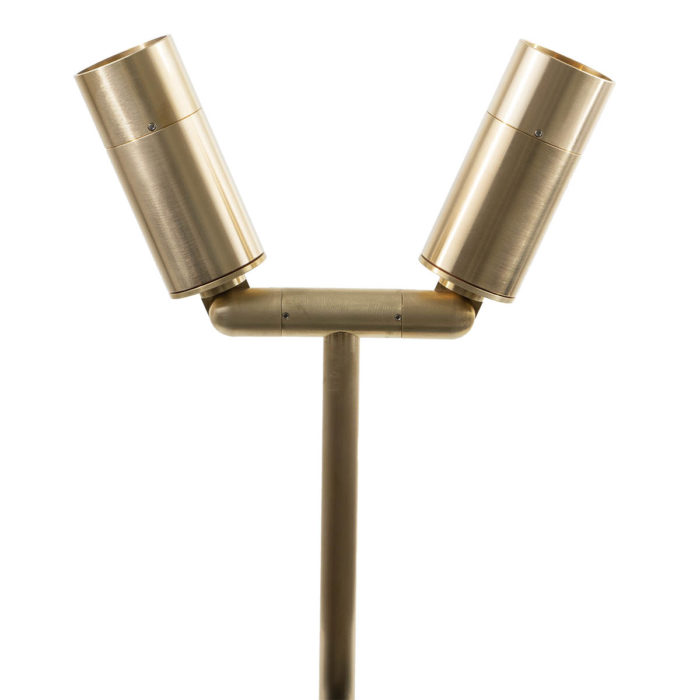

BGSF	Brass glare shield, full cutoff
FR	Frosted lens
HL1	Honeycomb louver, 1/8” (3mm) thick
HL2	Honeycomb louver, 1/4” (6mm) thick
PR	Prismatic spread lens
RT	Rectilinear spread lens
SL	Solite lens

BSB	Brass surface-mounted box for concrete and wood
GS2	Heavy-duty ground spike
GS2BC	Heavy-duty ground spike with cast brass cap
GS3R	Heavy-duty ground spike with brass cap for telescoping riser
GS4	*Standard ground spike with cast brass cap
JB	Cast brass junction box
	*This accessory for 12 Volt fixture only.
