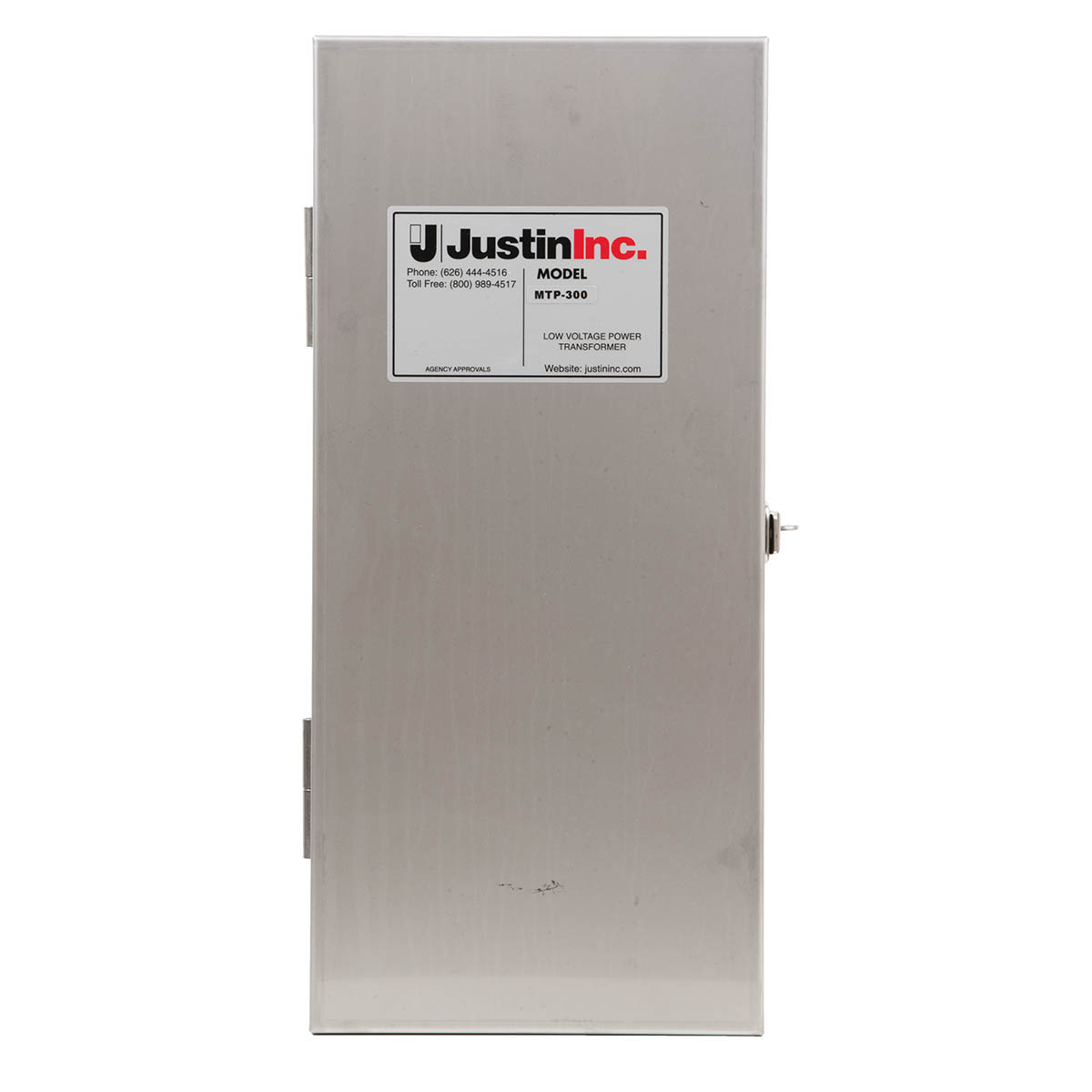

Mtp-300 Transformers

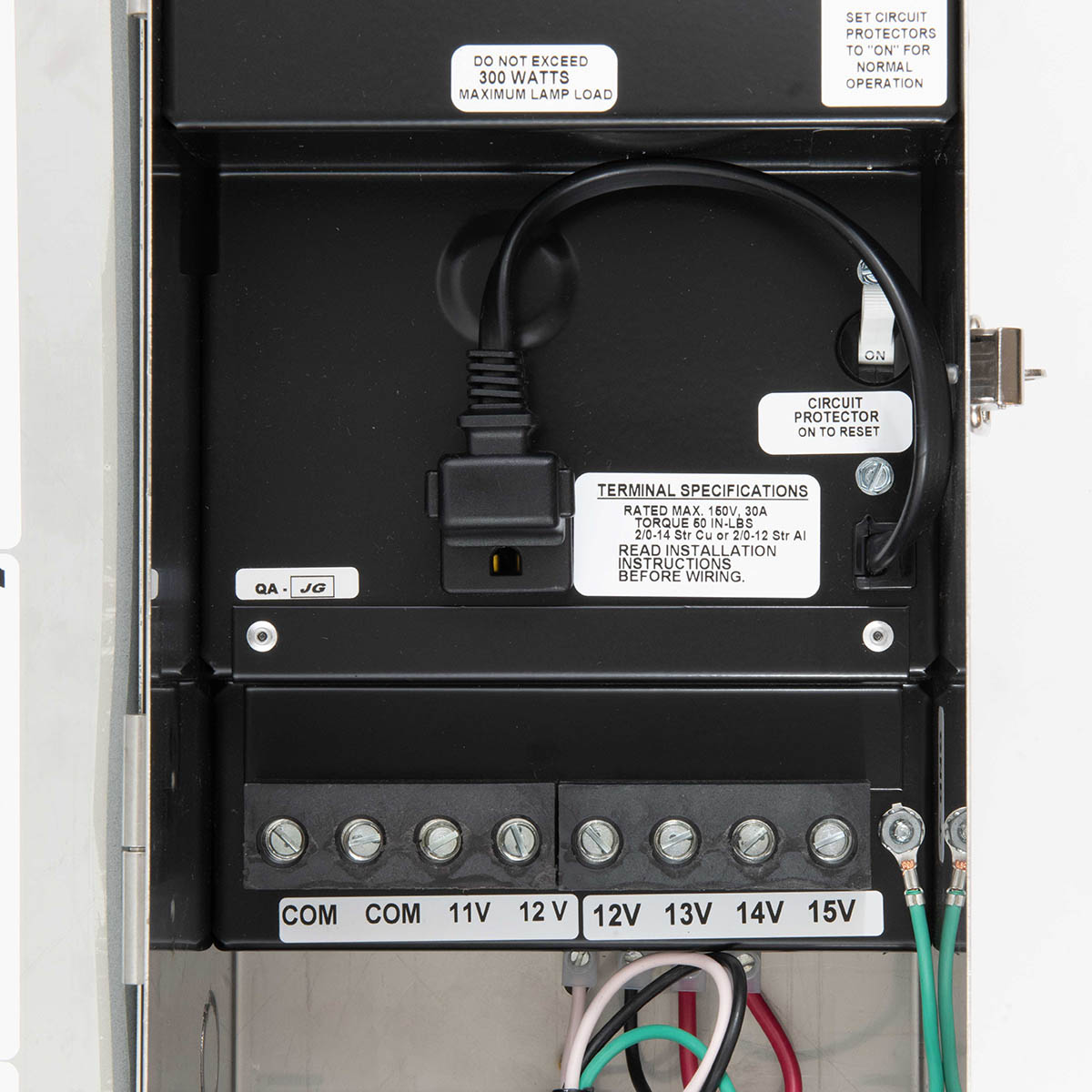

Mtp-300 Transformers2

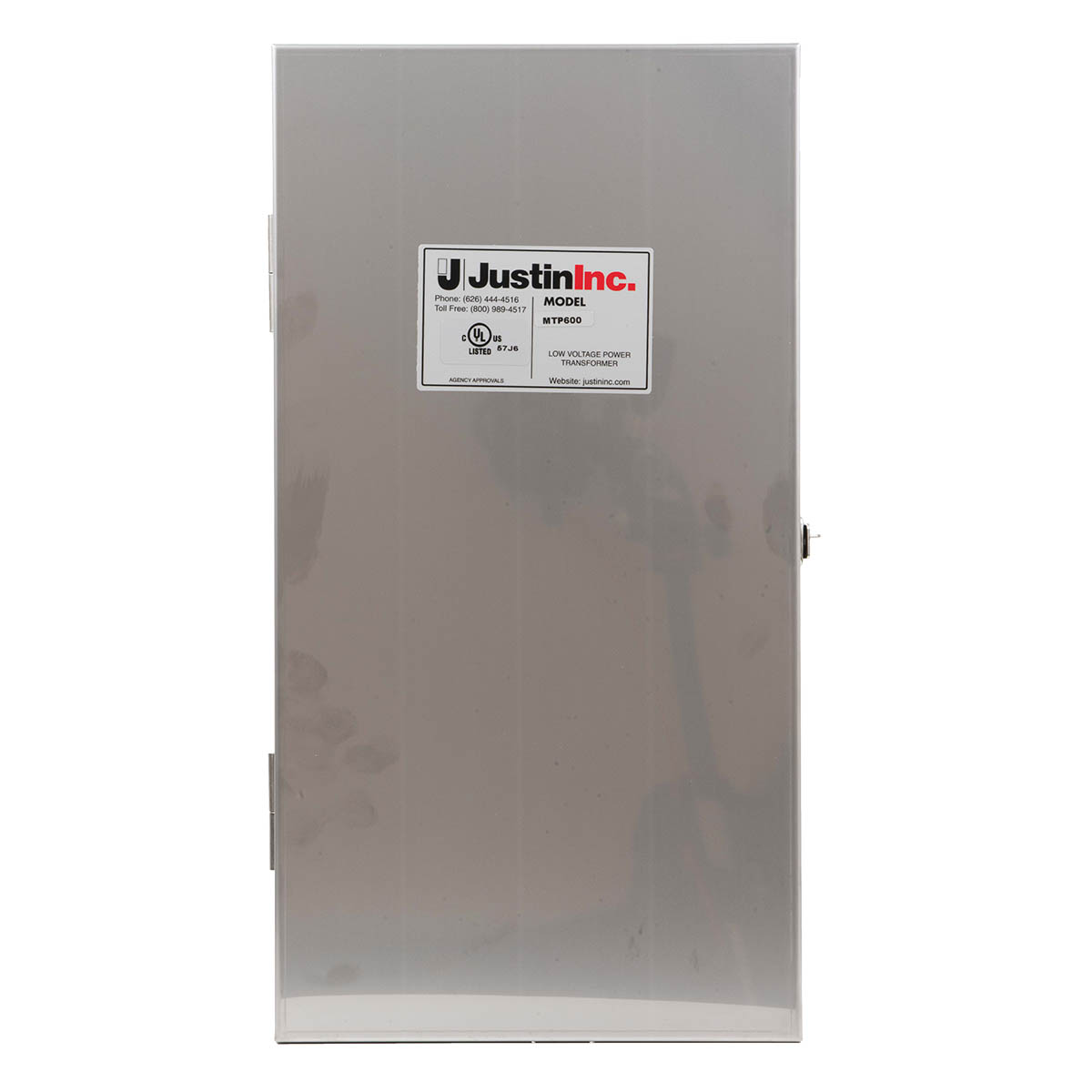

Mtp-600 Transformers

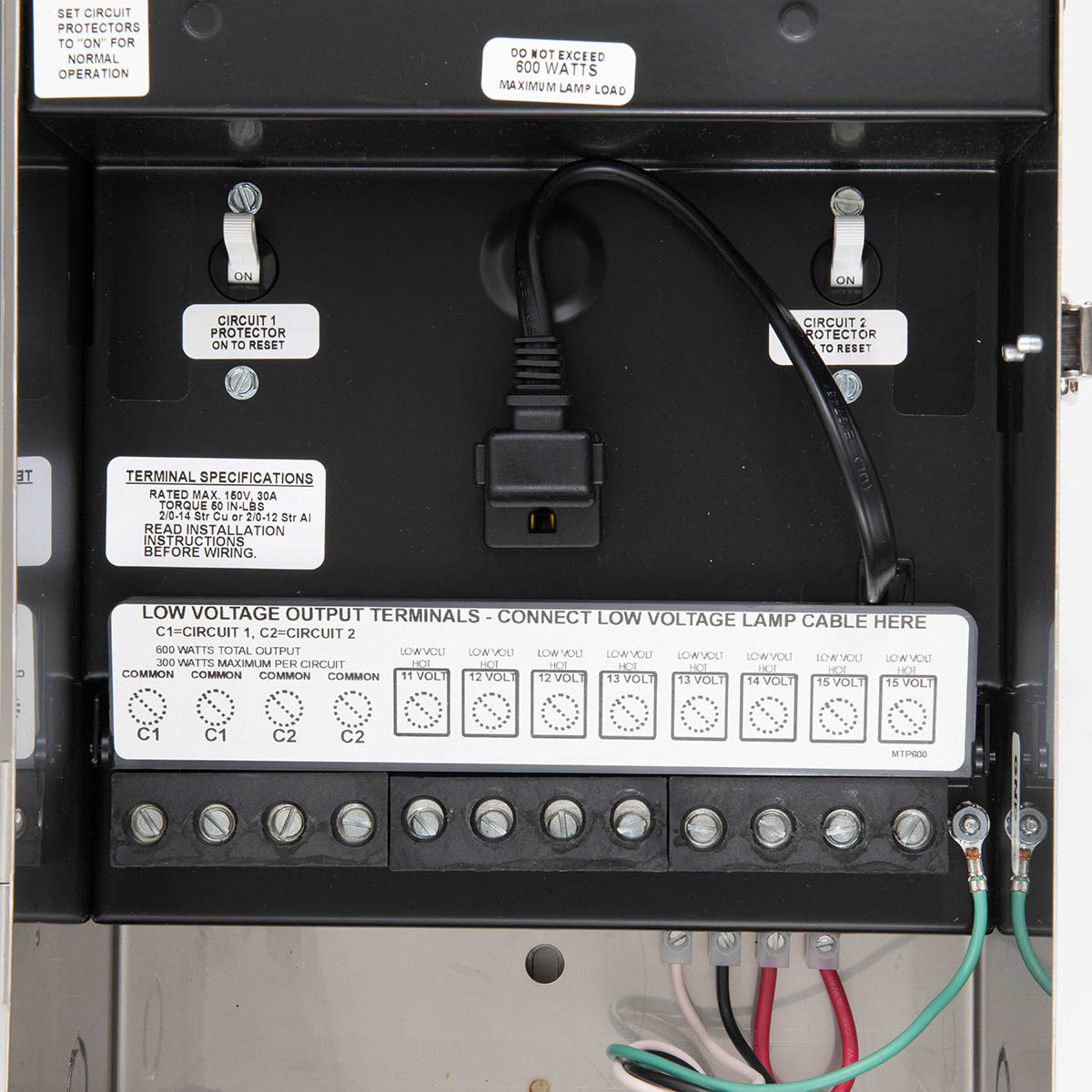

Mtp-600 Transformers2

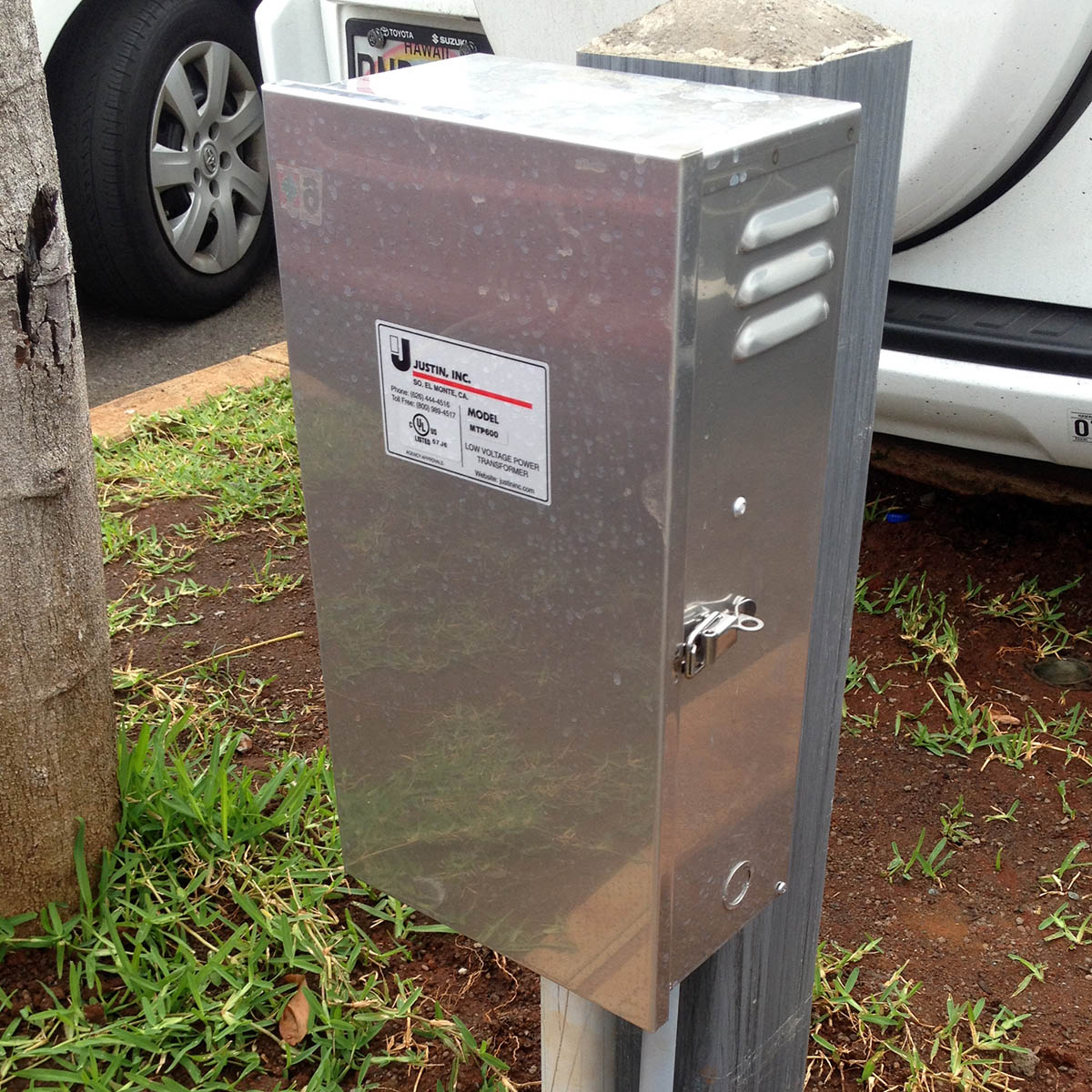

Mtp-600 Transformers3

MTP300, MTP600, & MTP1200 Stainless Steel Transformers

MTP300- / 600- / 1200-Watt  Magnetic Transformers

The MTP series are stainless steel multi-tap transformers with 11 – 15 Volt output to power low-voltage landscape lighting.

  • Multi-Volt output (12V AC & 15V AC)
  • Stainless Housing with Gasketed Cover
  • Circuit Breaker Protection
  • 6 Foot Long Plug-In Power Cord
  • X-10 Remote Control Compatibility
  • Dimmable with Inductive Magnetic Low Voltage Dimmers Only, such as Lutron #NLV1500

Do not use incandescent or resistive load dimmers.

MTP300 300 Watts
MTP600 600 Watts
MTP1200 1200 Watts
MTP300 MTP600 MTP1200
Watts 300 Watts 600 Watts 1200 Watts
Volts 11 – 15V AC 11 – 15V AC 11 – 15V AC
Circuits 1 circuit, 2 common taps 2 circuits, 4 common taps 4 circuits, 4 common taps
Height 14.0″ / 35.6 cm 17.0″ / 43.2 cm 17.0″ / 43.2 cm
Width 6.5″ / 16.5 cm 9.0″ / 22.9 cm  9.0″ / 22.9 cm
Depth 5.5″ / 14 cm 6.0″ / 15.2 cm 6.0″ / 15.2 cm
T Timer, 24 hour removable plug-in
DT Digital Timer, 24 hour removable plug-in w/ battery back-up
P Photocell, field installed
TP Photocell kit, field installed with timer
TRP Remote photocell on 20′ cord with 2-8 hour timer or dusk to dawn operation

Add as suffix to model number, e.g. “MTP300-P”
