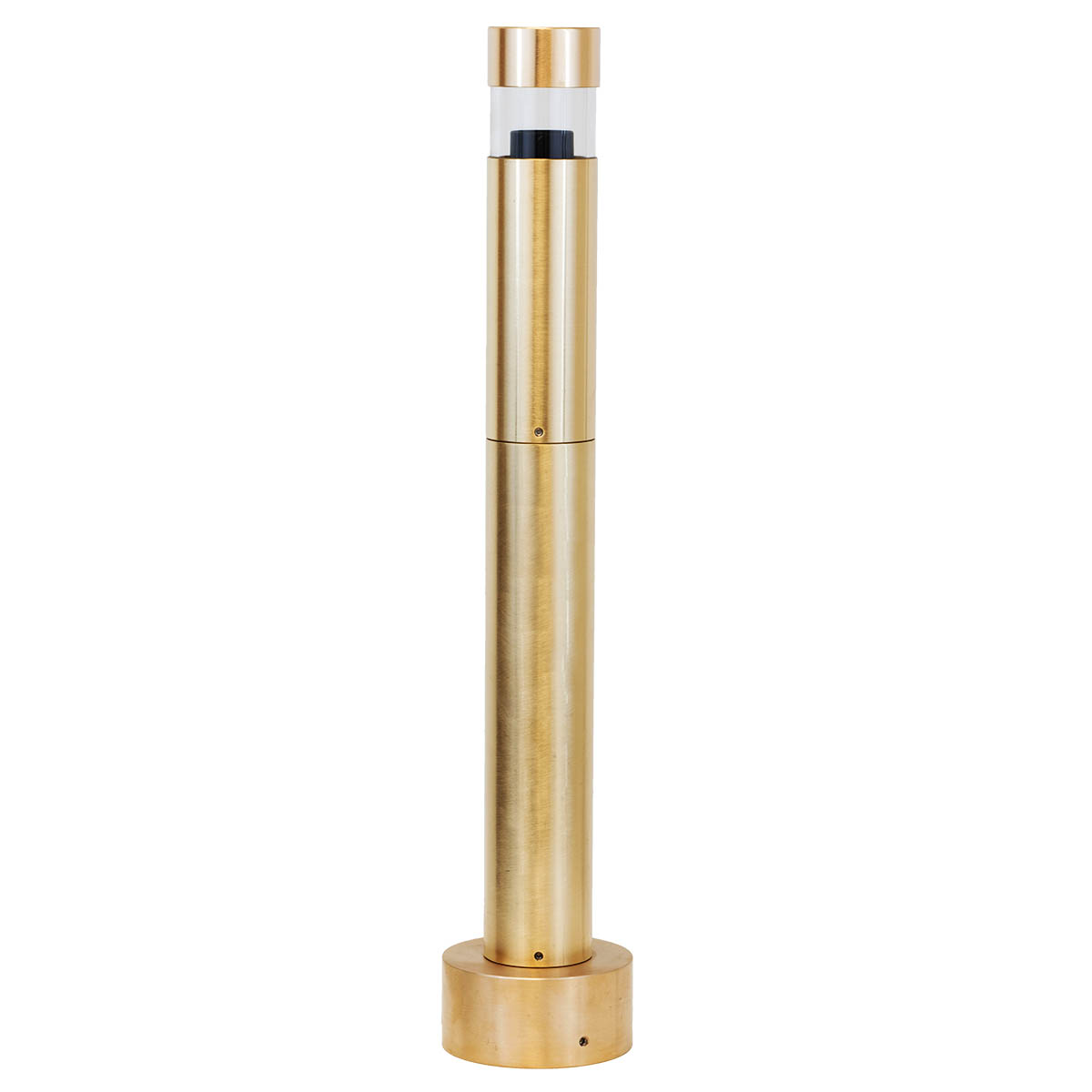

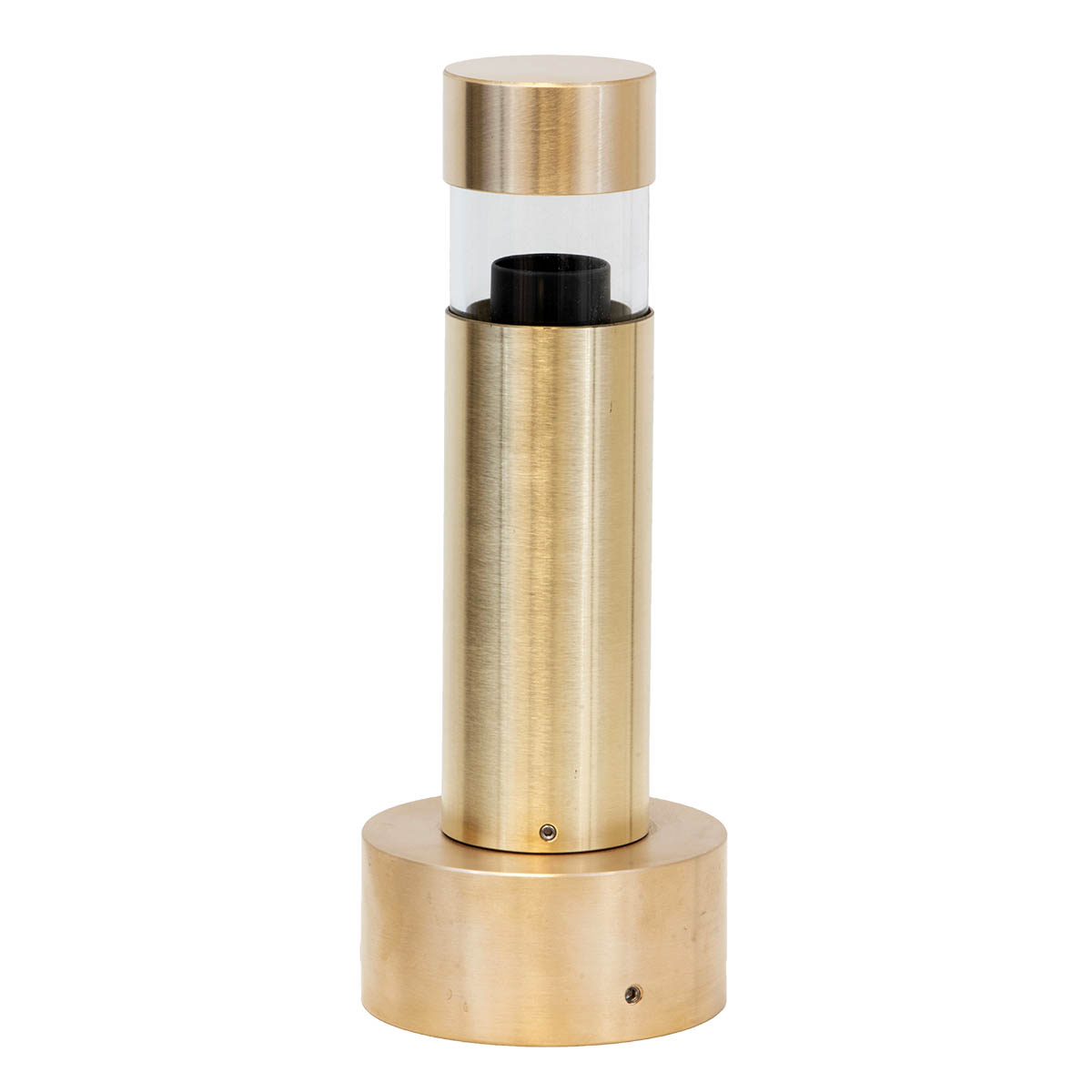

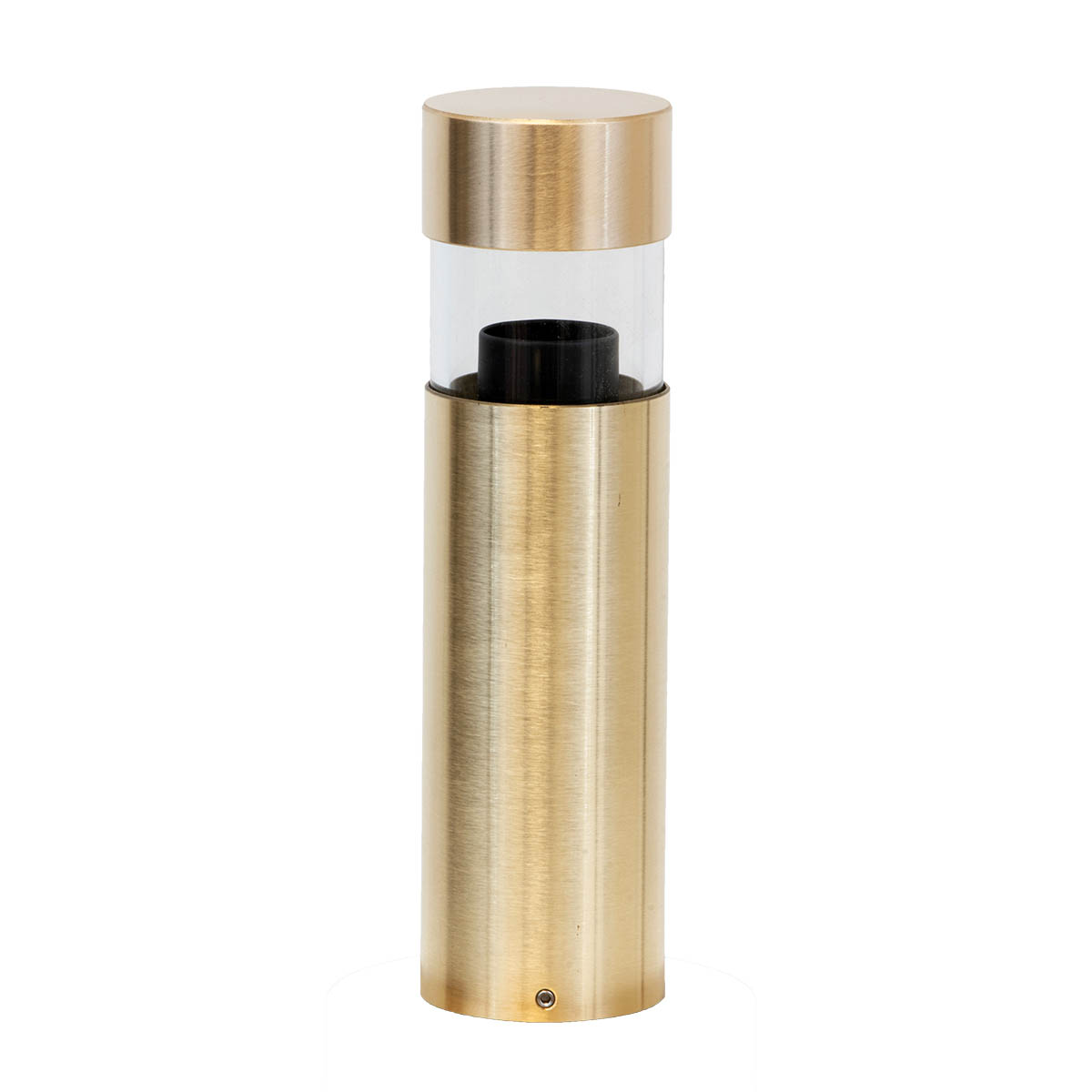

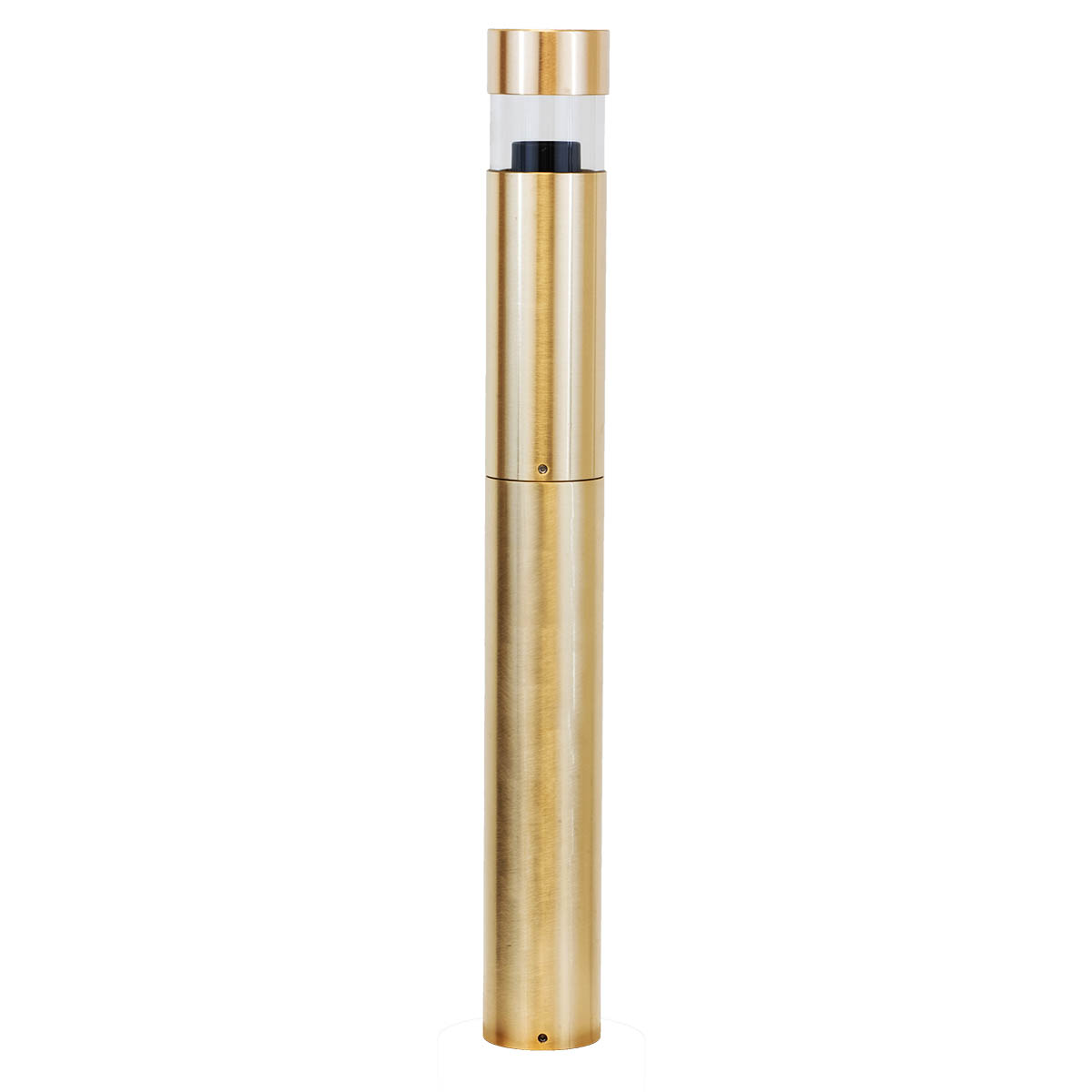

Contemporary Brass Bollard
- Durable construction: all brass components
- Mountable on brass base, junction box, or ground spike
- Available in 9″/22 cm and 20″/51 cm nominal heights (w/o BSB)
- Remote transformer required for 12V
- CSA Listed to US and Canadian safety standards, file # 190030
Voltage | 12V, 120V |
Lamps | Integrated LED, MR16 LED |
Lumens | 124 max |
CCT | 1500K |
2700K | |
2800K | |
3000K | |
Dimensions: 9″ | 2.4″ dia. x 8.7″ (6.1 x 22 cm) |
20″ | 2.4″ dia. x 20″ (6.1 x 50.8 cm) |
Specifications
12V Instructions
120V Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Triple Chip Light Engine
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt GU5.3 MR16 LED
GU5.3 MR16 LED
5W-A-NFL | 5 Watt AMBER (1500K)* TURTLE FRIENDLY |
8W-SP | 8 Watt Warm White (3000K) |
Integrated Triple LED Module
7W-A-SP | 7 Watt AMBER (1500K)* TURTLE FRIENDLY |
11W-SP | 11 Watt Warm White (3000K) |
11W-SP-2700K | 11 Watt Warm White (2700K) |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
GU10 MR16 LED
5W-A-NFL | 5 Watt AMBER (1500K)* TURTLE FRIENDLY |
8W-SP | 8 Watt Warm White (2800K) |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
HS-MB4 | Half shield for 180° illumination |
HS-MB4-270 | 270° shield for 90° illumination |
Luminaire comes standard with 1/2″ male threads for mounting
BSB | Brass surface box |
GS2BC | Heavy-duty ground spike with cast brass cap |
JB | Cast brass junction box |
