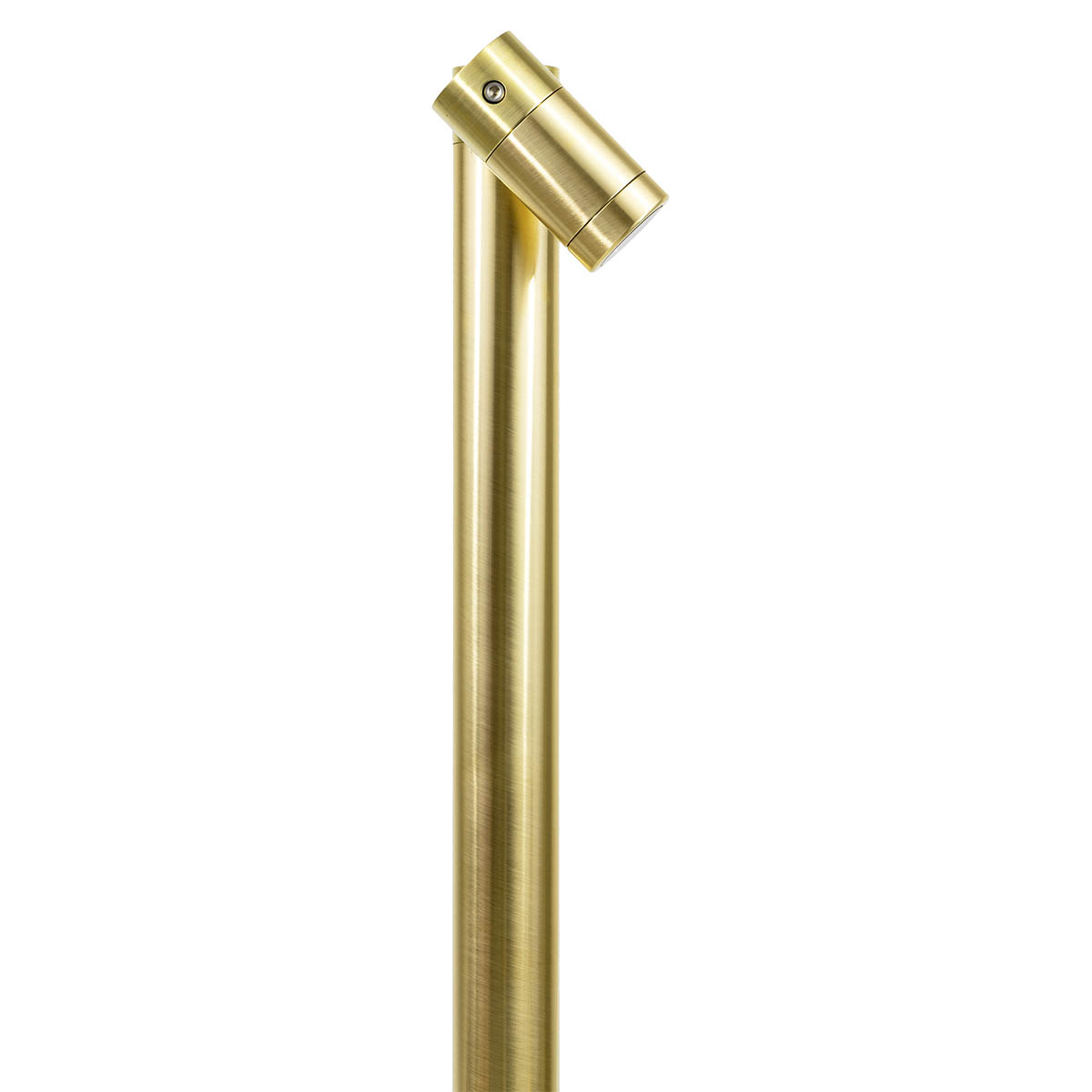

Solid Brass, Low-Voltage, Aimable Mini Bollard
- Ideal for walkways and tall groundcover
- Aimable in vertical plane
- Remote transformer required
- Custom height options available
Voltage | 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V) |
Lamps | Integrated LED |
Lumens | 76 |
CCT | 1000 |
1700 | |
2700 | |
3000 | |
Dimensions | Lamp Housing: 3.4″ x 1.6″ diameter (8.7 x 4.2 cm) |
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
LM79 | IES |
X1-20-2W-A-NO | X1-20-2W-A-NO |
X1-20-3W-NO | X1-20-3W-NO |
The X1 features our “NO-OPTIC” cap that incorporates frosted glass over an LED without an optic, allowing the widest beam possible. Although delivered lumens is much less than a directional fixture with a concentrated beam, it is ideal as an even, diffuse source so close to the ground.
20” standard or Custom
Integrated LED Light Engine
Triac dimmable: MLV >6% typ
Cree XPE2 • Amber (1700K) & Red-Orange (1000K) • TURTLE FRIENDLY
Triac dimmable: MLV >6% typ
Cree XPE2 • Amber (1700K) & Red-Orange (1000K) • TURTLE FRIENDLY
2W-A-NFL | 2 Watt AMBER narrow flood | 14° beam / 31° field angle |
2W-A-FL | 2 Watt AMBER flood | 29° / 61° |
2W-A-NO | 2 Watt AMBER | 46° / 114° |
2W-RO-NFL | 2-Watt RED-ORANGE narrow flood | 13° / 28° |
2W-RO-FL | 2-Watt RED-ORANGE flood | 32° / 56° |
2W-RO-NO | 2-Watt RED-ORANGE | 49° / 114° |
Cree XPG2 • Warm White (3000K)**
3W-NFL | 3 Watt narrow flood | 17° / 37° |
3W-FL | 3 Watt flood | 30° / 62° |
3W-NO | 3 Watt | 47° / 86° |
** Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-NO-2700K“
BSB | Brass Surface Box for surface-mount applications on concrete or wood |
GS2BC | Heavy-duty ground spike with cast brass cap |
JB | Cast brass junction box |

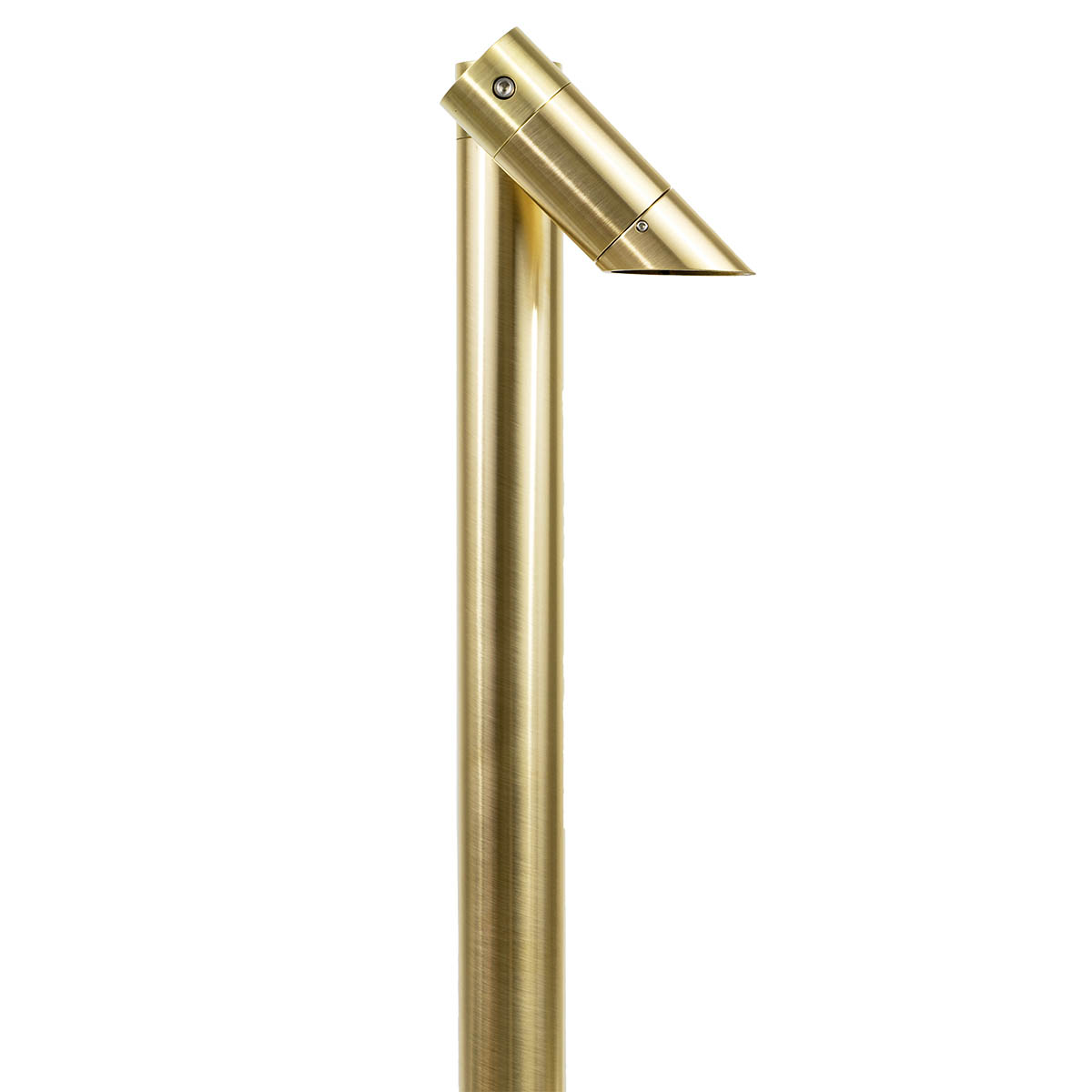

BGS8 | Brass glare shield, 45° cutoff |
BGS8F | Brass glare shield, full cutoff |
CTO-1/4-1.36 | Color Temperature Orange filter 1/4 |
CTO-1/2-1.36 | Color Temperature Orange filter 1/2 |
CTO-3/4-1.36 | Color Temperature Orange filter 3/4 |
