L-011-P-CM1
(12V MR16 LED, 120/230V MR16 LED/Metal Halide)

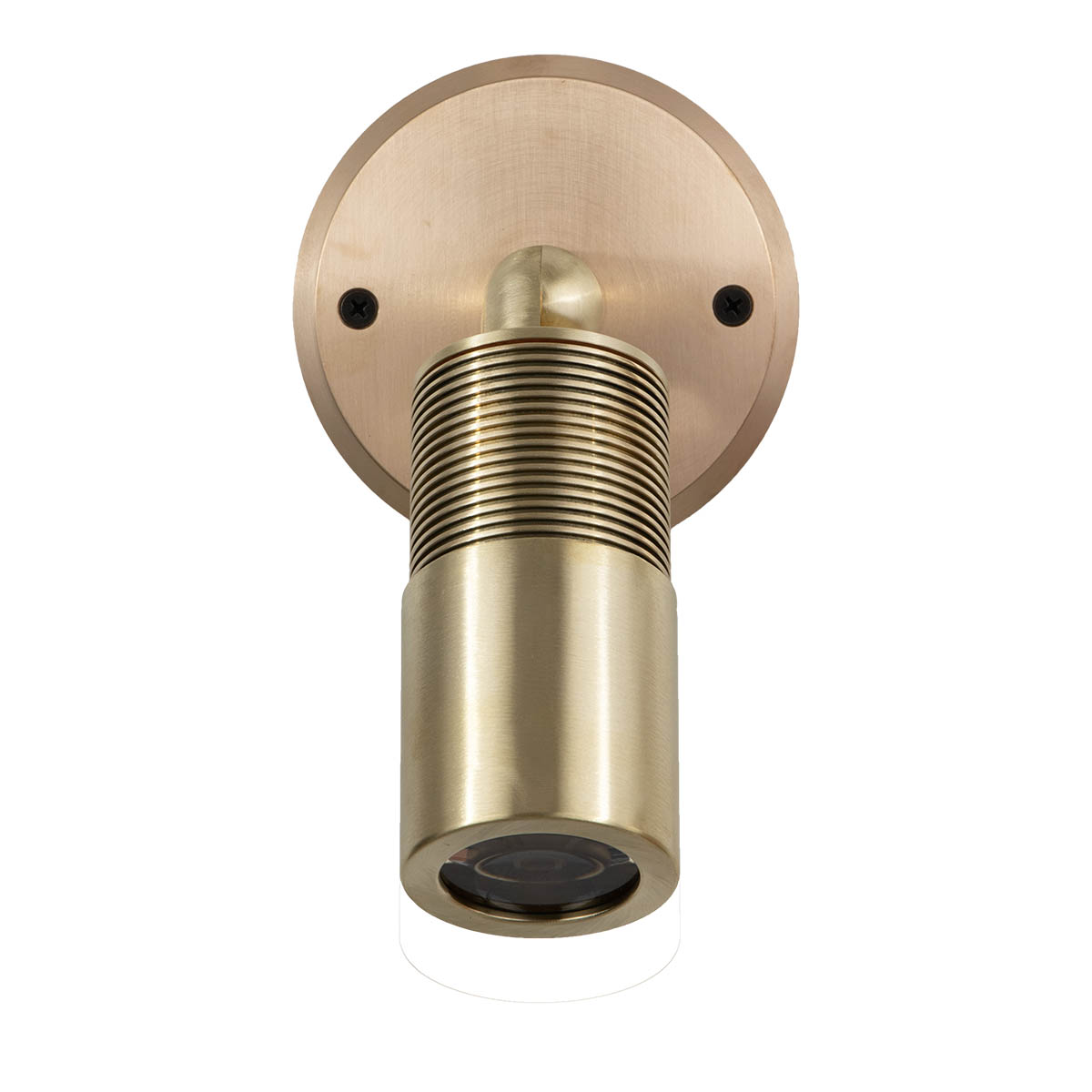

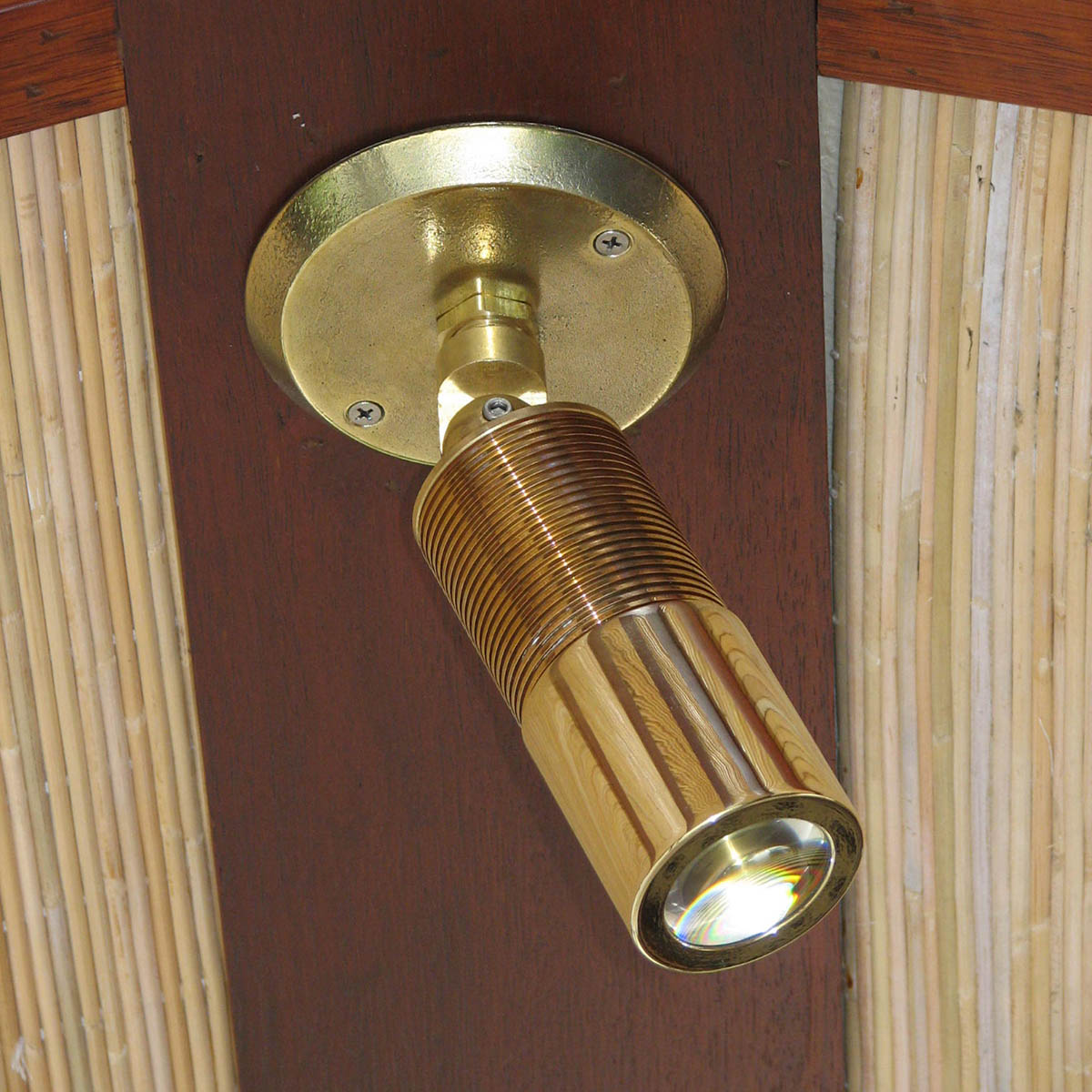

Brass Outdoor Canopy-Mounted Gobo Pattern Projector
- Fixture uses stainless steel gobos (51.5 mm overall diameter) to project a pattern onto ground or wall
- Remote transformer required for 12 Volt
Voltage | 12V, 120V, 230V |
Lamps | MR16 LED & Metal Halide |
CCT | 2700K |
3000K | |
Dimensions | 2.5″ dia. lamp housing (6.3 cm), 4.75″ dia. canopy (12.1 cm) |
Overall length from knuckle pivot: 5.7″ (14.5 cm) for 12 Volt, 6.4″ (16.4 cm) for 120/230 Volt |
Specifications
12V Instructions
120V Instructions
Metal Halide Instructions
Brass Crossbar (for standard round and 4.75″ square canopies only)
Image Display Dimensions
Randall Whitehead Write-up in Residential Lighting
L-011-P-CM1
12 Volts, Remote transformer required
GU5.3 MR16 LED • Warm White (2700/3000K)
8W-NFL-27 | 8 Watt (2700K) | 25° narrow flood |
8W-NFL-30 | 8 Watt (3000K) | 25° narrow flood |
L-011-P-CM1-120V, L-011-P-CM1-230V
120/230 Volts
GU10 MR16 LED • Warm White (2700/3000K)
8W-NFL-27-120V | 8 Watt (2700K) | 25° narrow flood |
8W-NFL-30-120V | 8 Watt (3000K) | 25° narrow flood |
L-011-P-CM1-MH-120V, L-011-P-CM1-MH-230V
120/230 Volts, Ceramic Metal Halide
GX10 MR16 MH • Remote ballast required
MH20MR16SP | 20 Watt | 12° spot |
MH39MR16SP | 39 Watt | 12° spot |
BGS9 | Brass glare shield, 45° cutoff |
SA | Sure Aim locking rotation accessory |

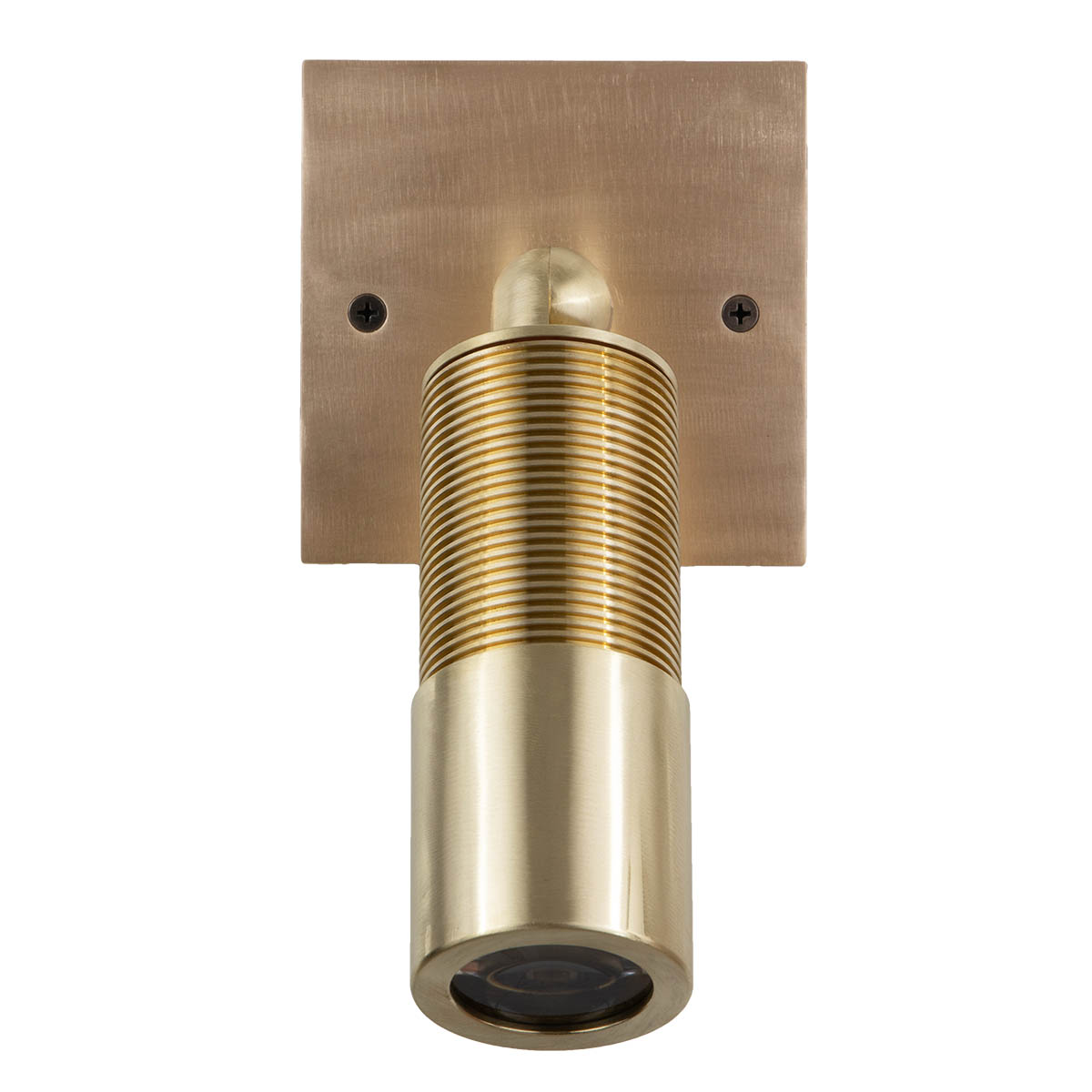

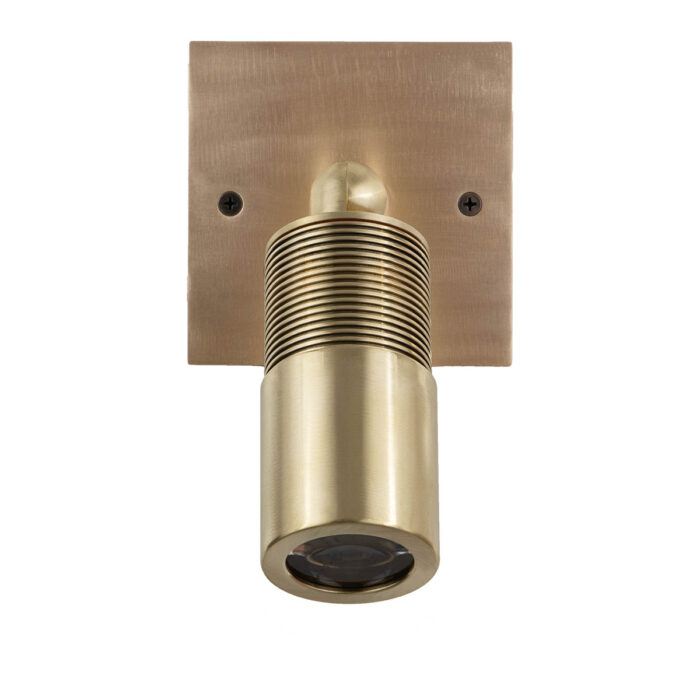

SQ1 | 4.75″ (12.1cm) Square canopy substitution for standard round canopy |
Gobo Patterns
Standard gobo patterns shown below. Many custom patterns are available. See Other Patterns Here (specify Apollo part number).
