L-017
(12/120/230V MR16 LED)

Darksky

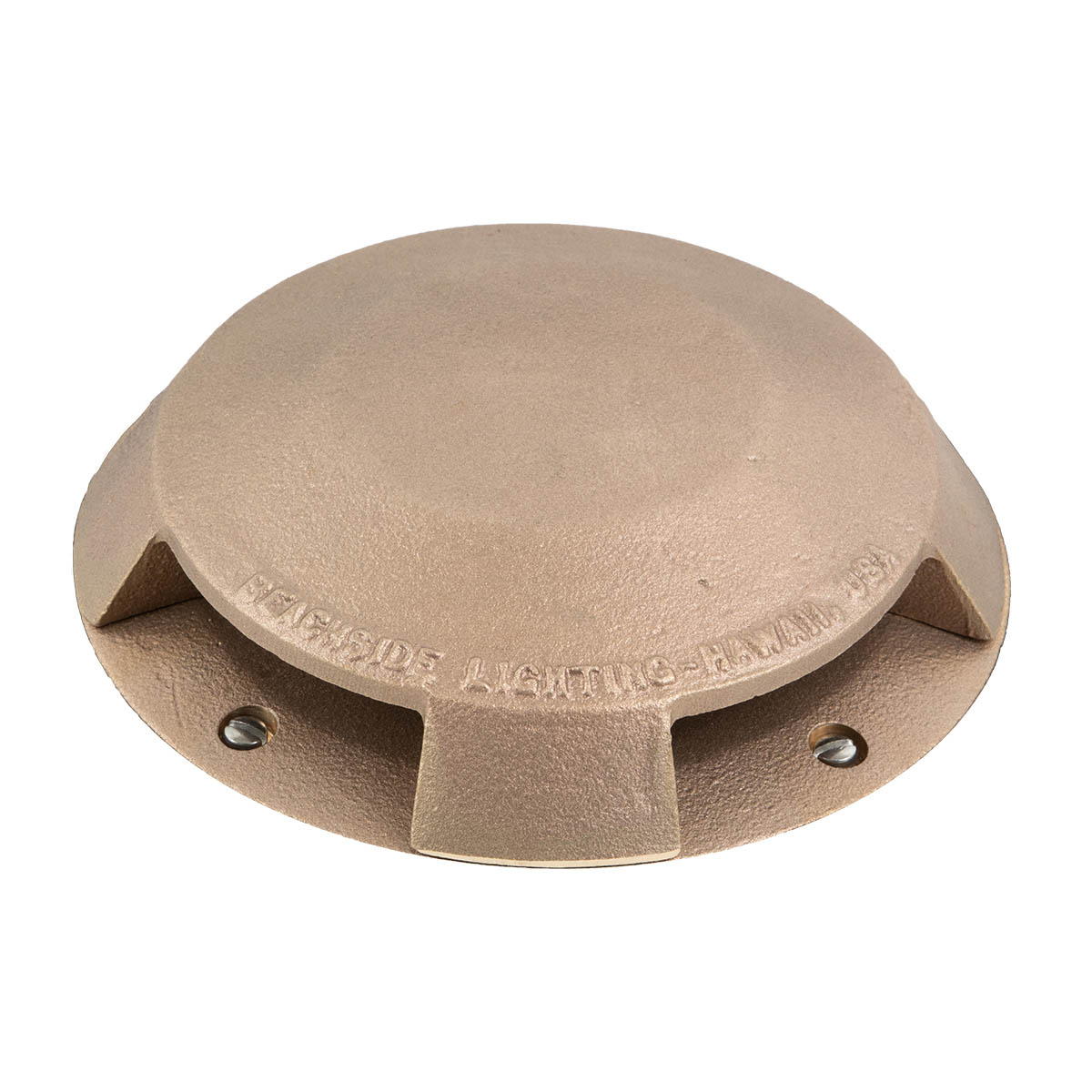

Brass & Composite In-Ground Pathlight for High Traffic & Drive-Over Applications

The L-017 series in-ground drive-over fixtures are brass & composite pathlights for high-traffic areas. This low-profile fixture is ideal for paths with low ground cover and along pathways used by golf carts, service trucks, or automobiles at country clubs & resorts.

  • “CP-KIT” accessory available for new concrete installation.  Exposed height reduces to 1.7″ (4.2 cm).
  • Remote transformer required for 12V
Voltage 12V, 120v, 230V
Lamps MR16 LED
CCT 1500K (DarkSky approved)
3000K

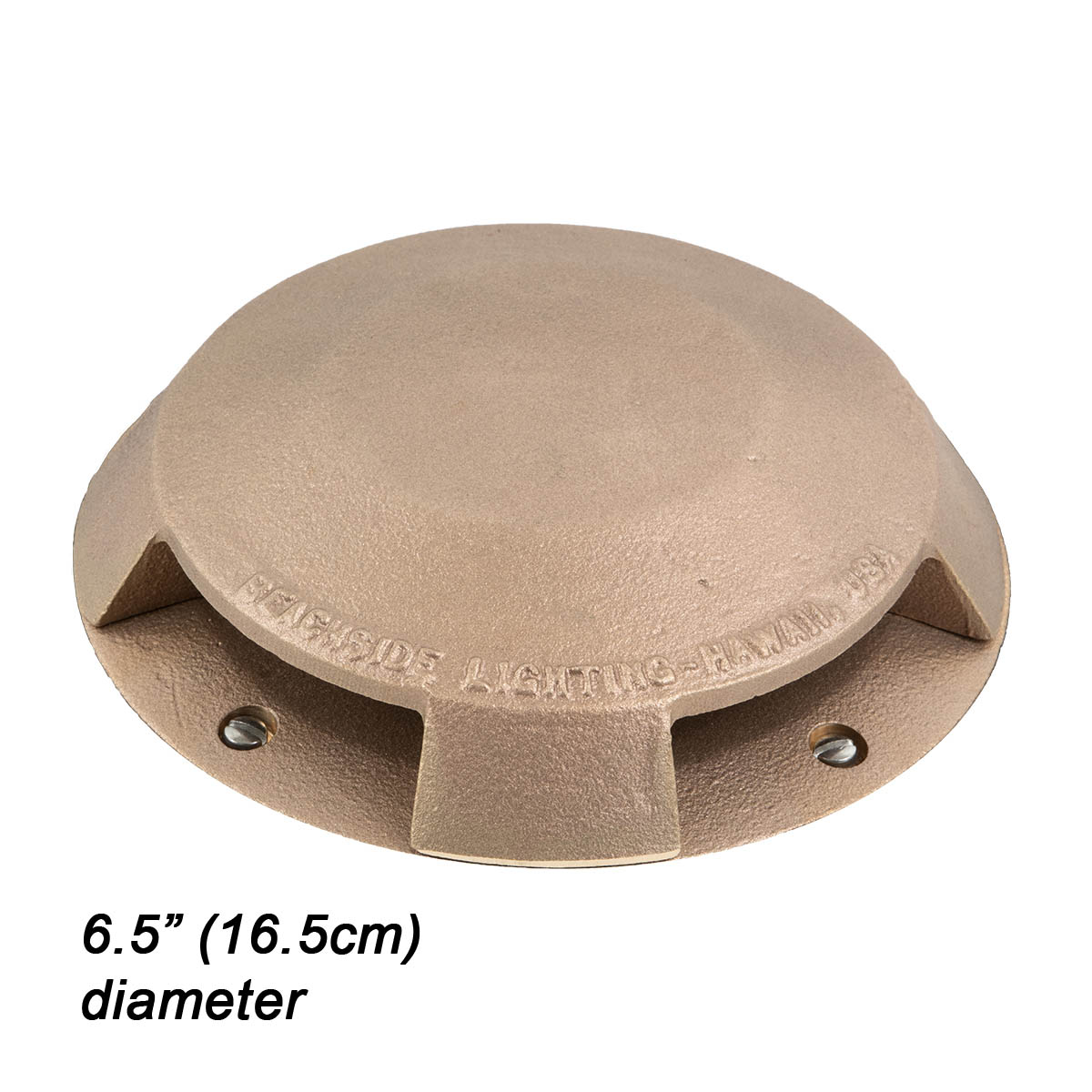

Dimensions 6.5″ dia. x 1.9″ exposed height (16.5 x 4.9 cm)

L-017
12 Volt input, remote transformer required
GU5.3 MR16 LED

5W-A-NFL 5 Watt AMBER (1500K)*  TURTLE FRIENDLY
5W-NFL-27 5 Watt Warm White (2700K)
5W-NFL-30 5 Watt Warm White (3000K)
8W-NFL-27 8 Watt Warm White (2700K)
8W-NFL-30 8 Watt Warm White (3000K)

L-017-C
120 or 230 Volt input
GU10 MR16 LED

5W-A-NFL 5 Watt AMBER (1500K)*  TURTLE FRIENDLY
5W-NFL-27 5 Watt Warm White (2700K)
5W-NFL-30 5 Watt Warm White (3000K)
8W-NFL-27 8 Watt Warm White (2700K)
8W-NFL-30 8 Watt Warm White (3000K)

* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission

CP-KIT Concrete pour kit
HS17-1 Shield for single-sector illumination
HS17-2 Shield for dual adjacent-sector illumination
HS17-OP Shield for opposite-sector illumination
