E3-M
(12V Integrated LED & MR11 LED)
Solid Brass Low-Profile Marker Light
- Remote transformer required
| Voltage | 12 Volts AC/DC with integral driver (9-15V input, dimmable below 9V) |
| Lamps | Integrated LED, MR11 LED |
| Lumens | max 15 |
| CCT | 1000K |
| 1500K (DarkSky approved) | |
| 2700K | |
| 3000K | |

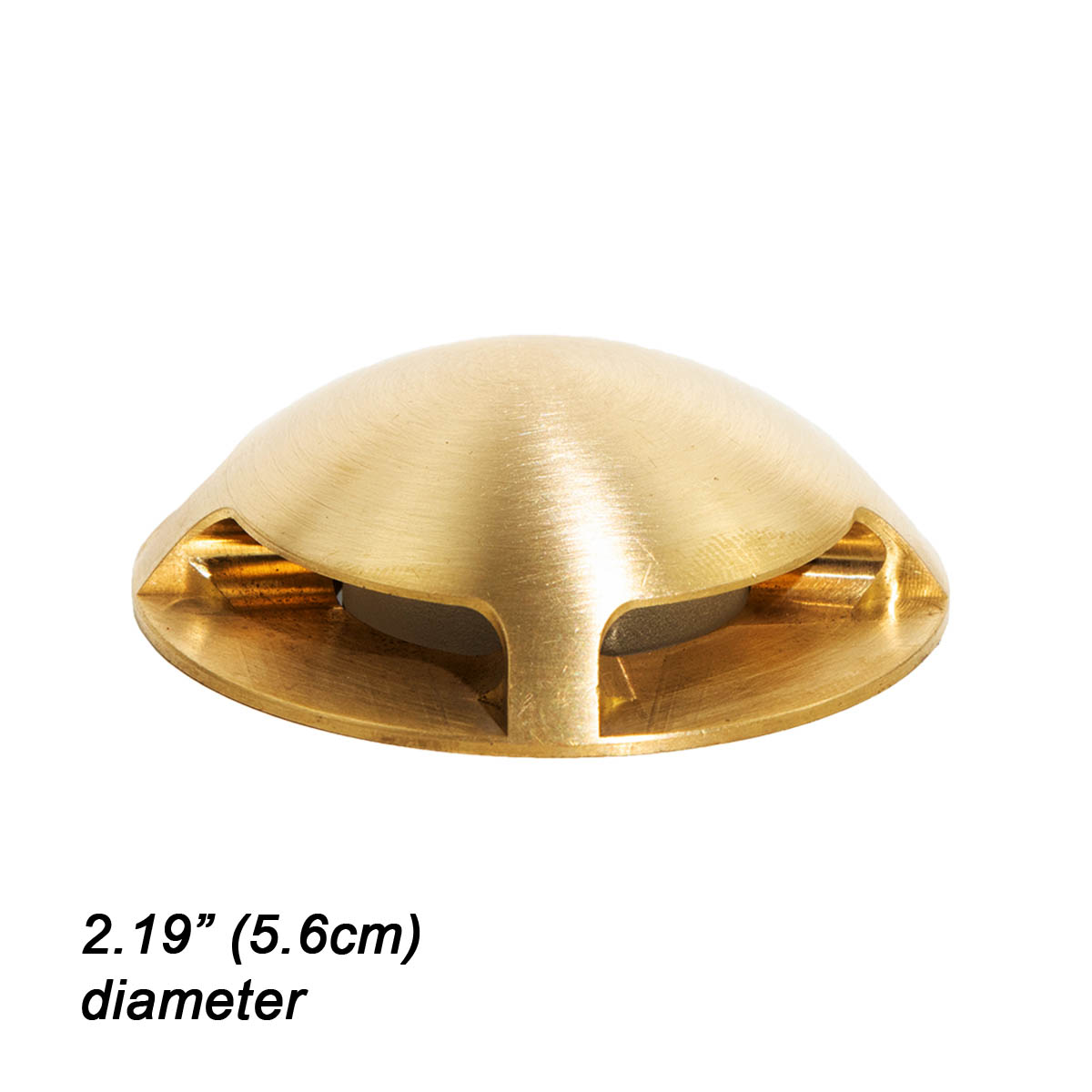

| Dimensions | Dome diameter: 2.19″ [5.6 cm] |
| Depth: 3.14″ [8.0 cm] |

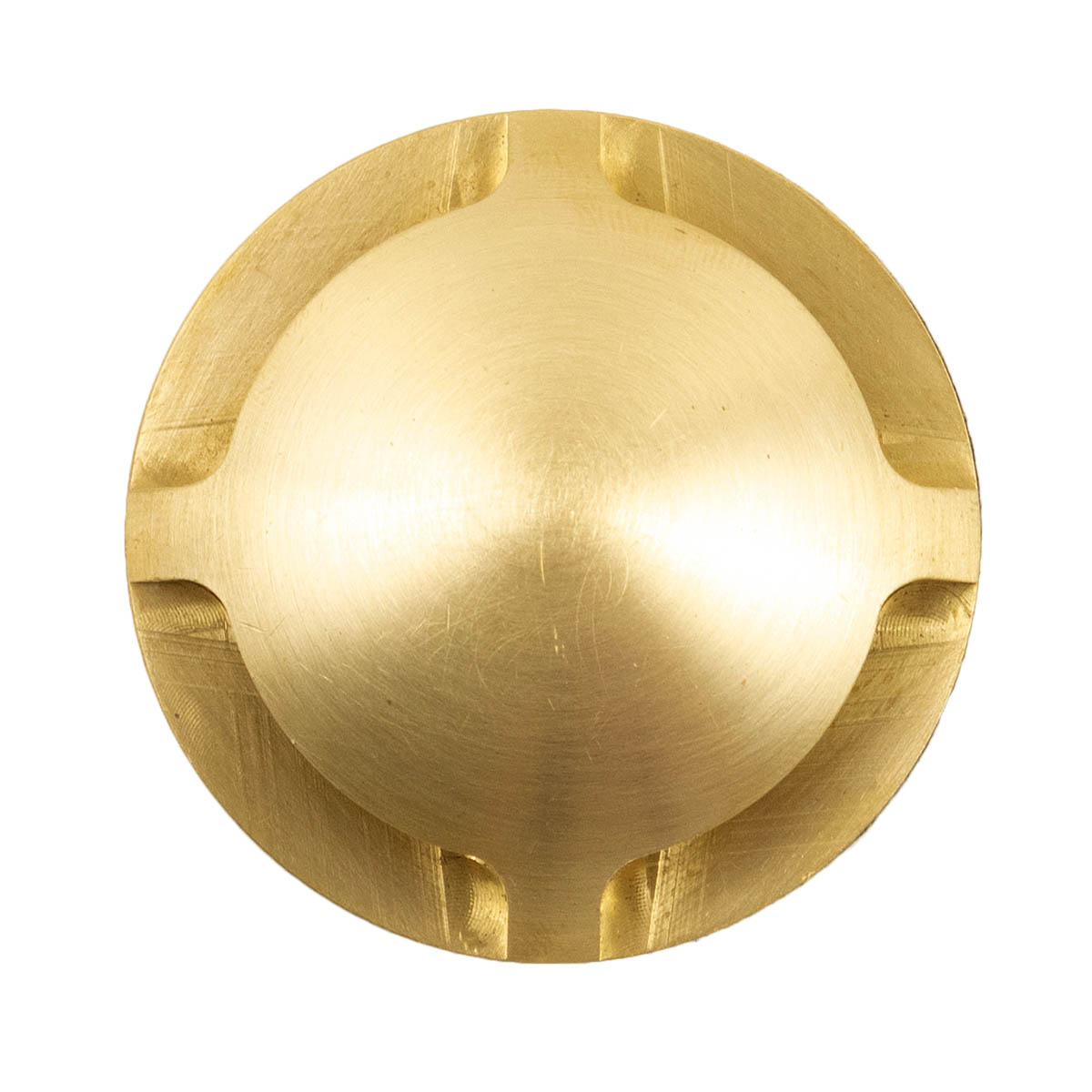

| E3-M | Four-Sector Illumination (standard) |

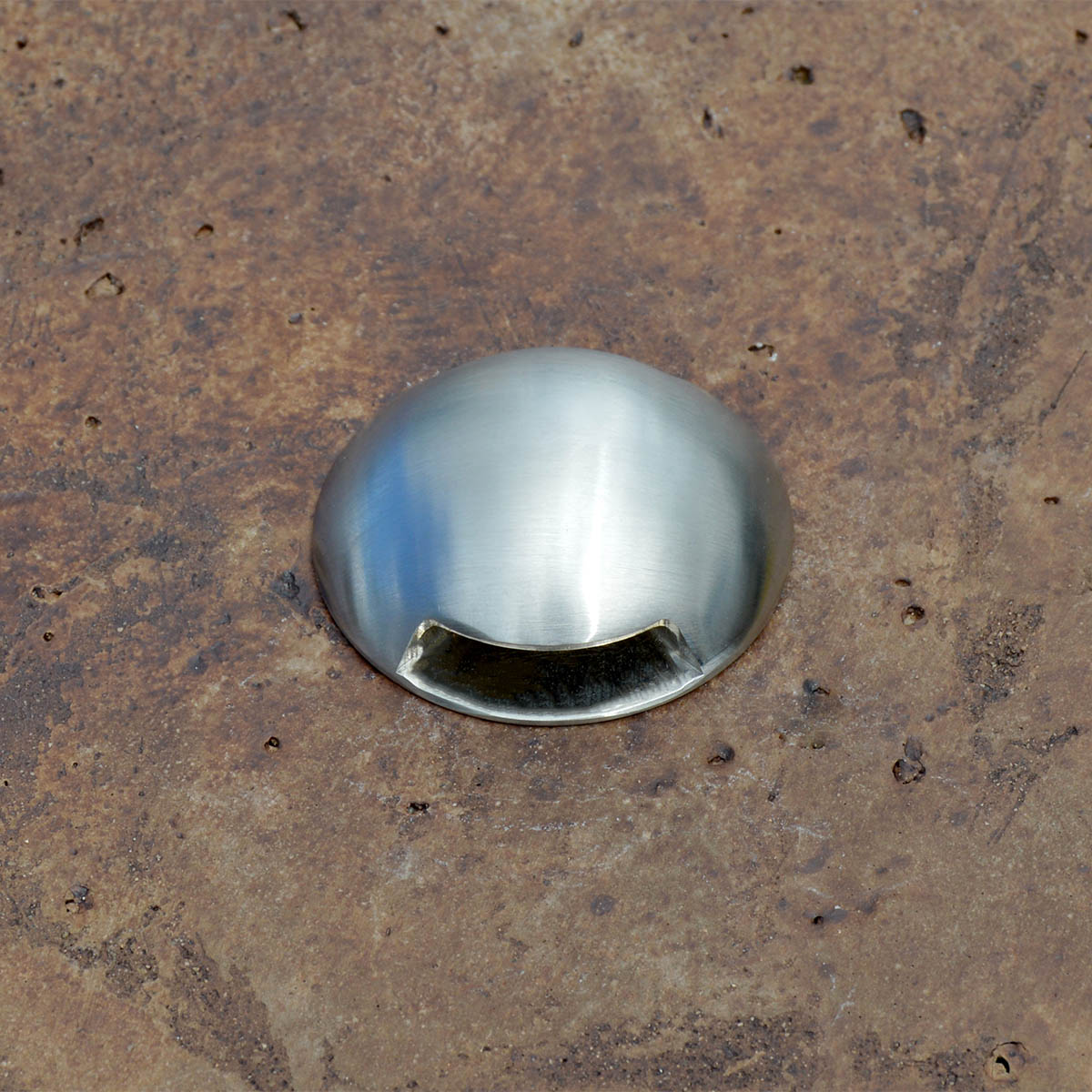

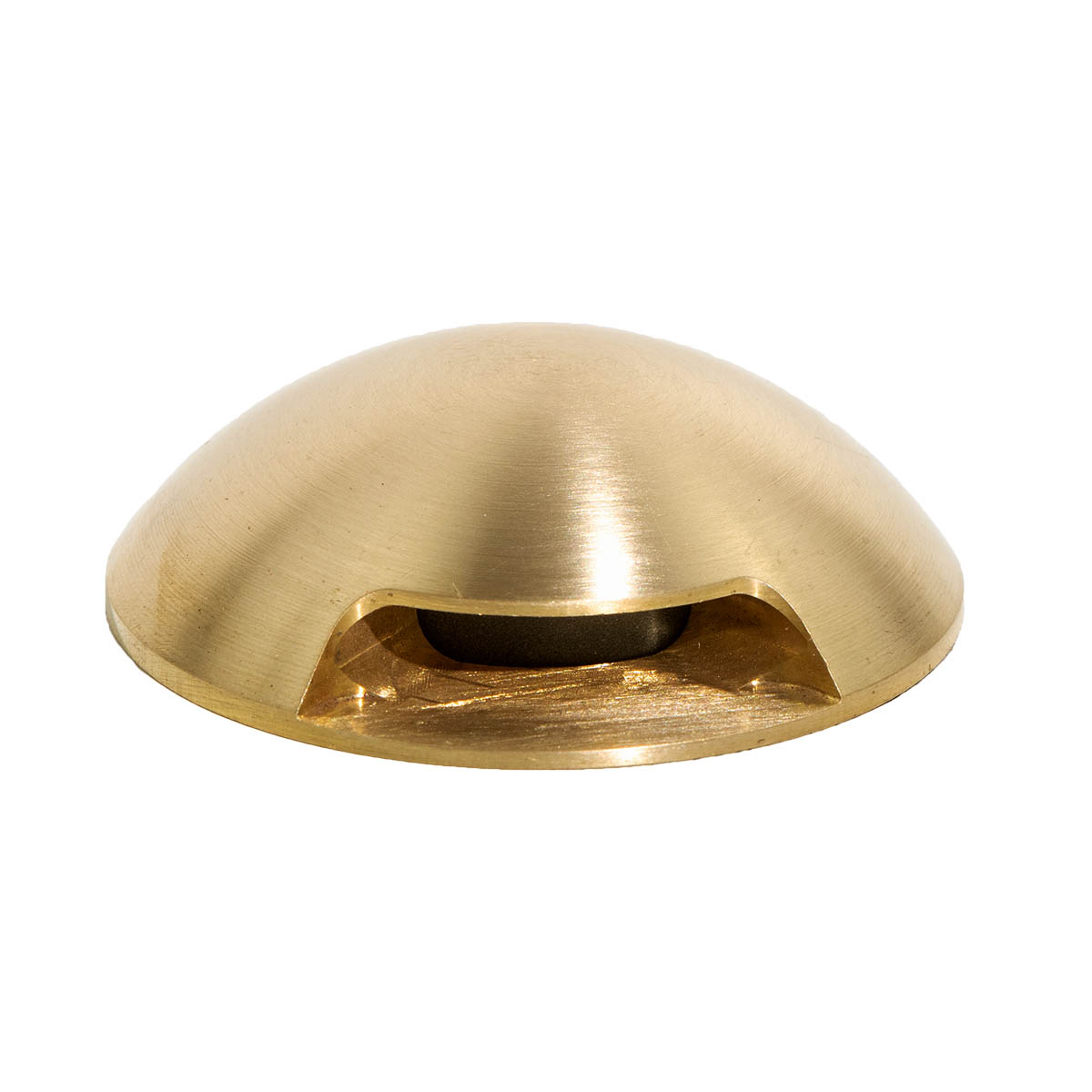

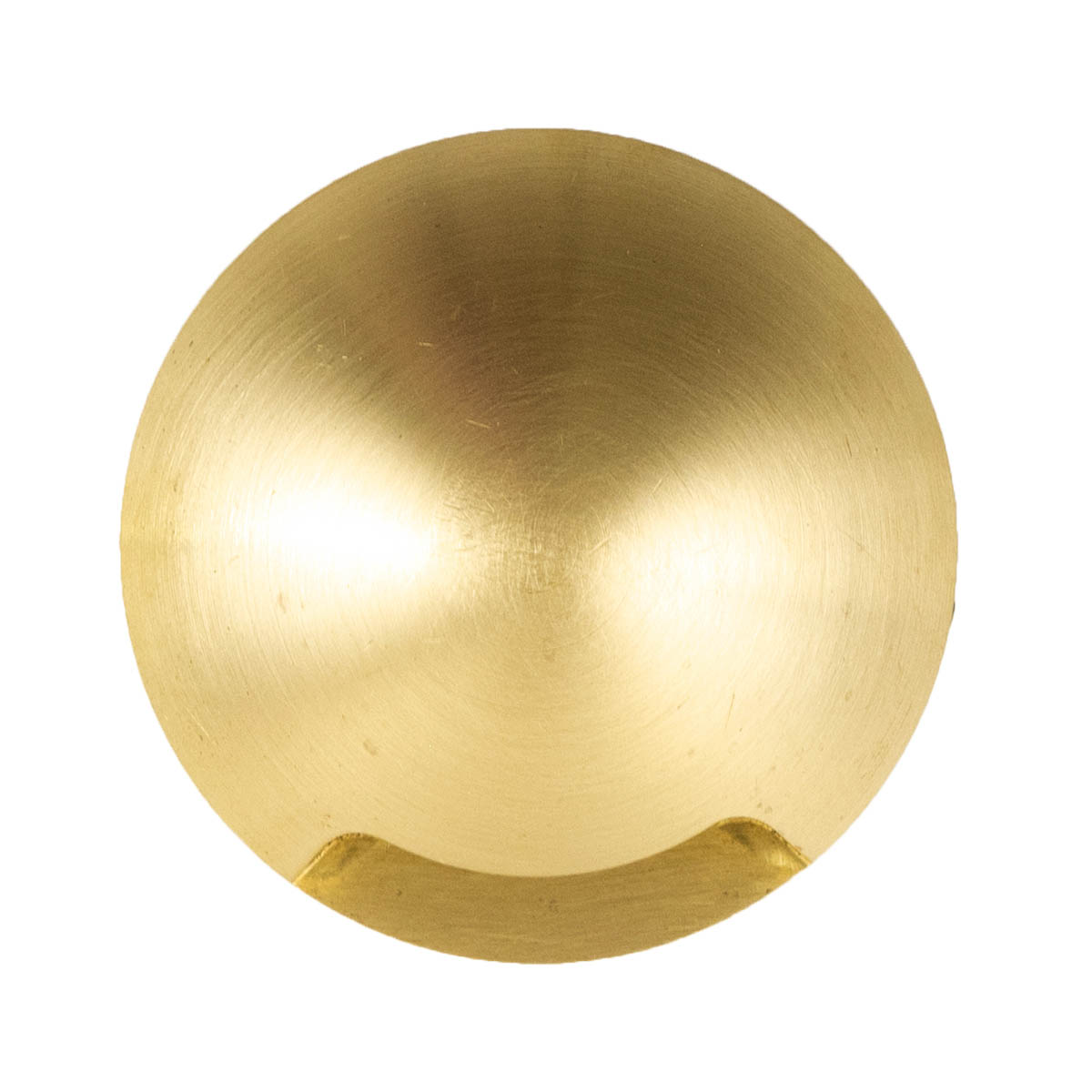

| E3-M-1 | Single-Sector Illumination |

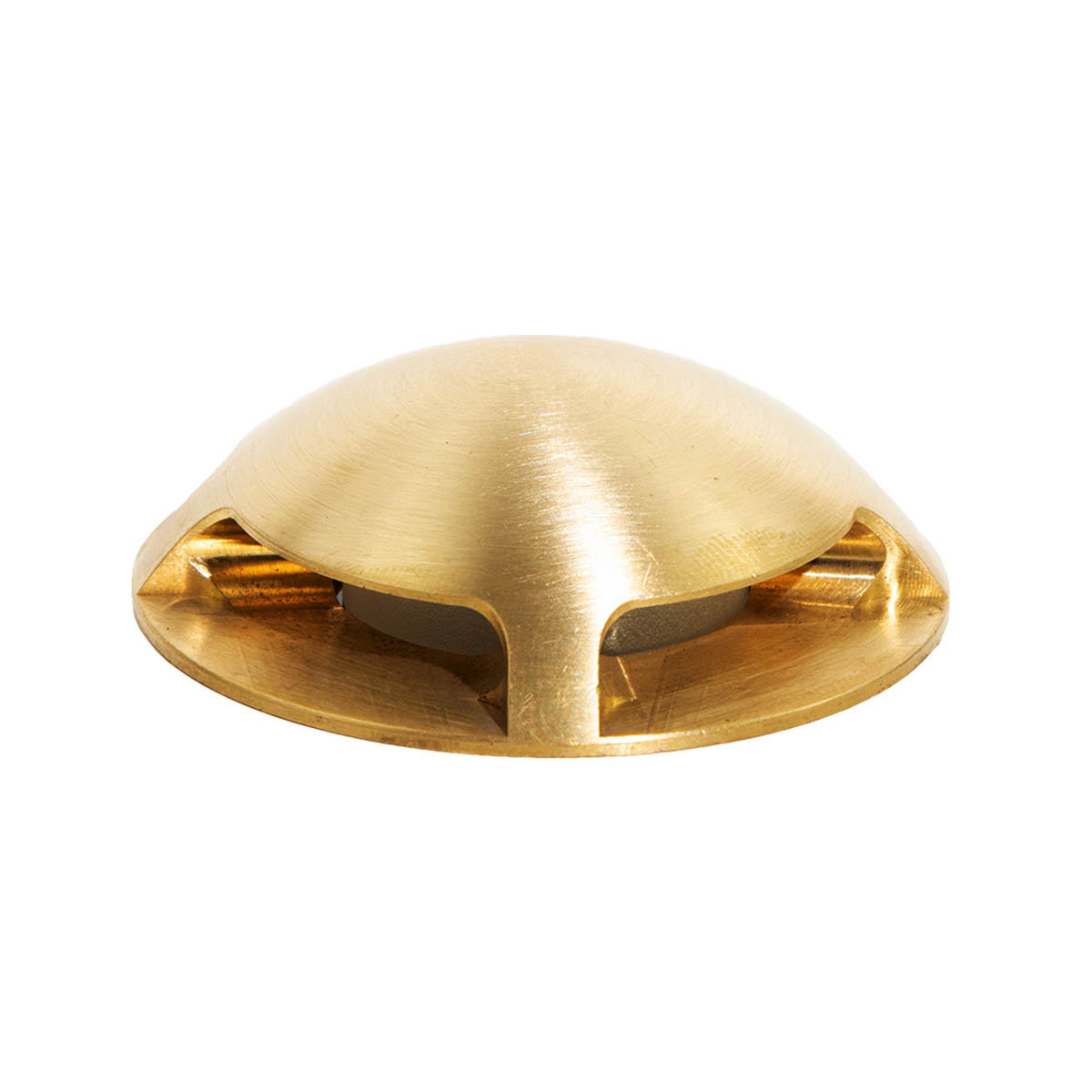

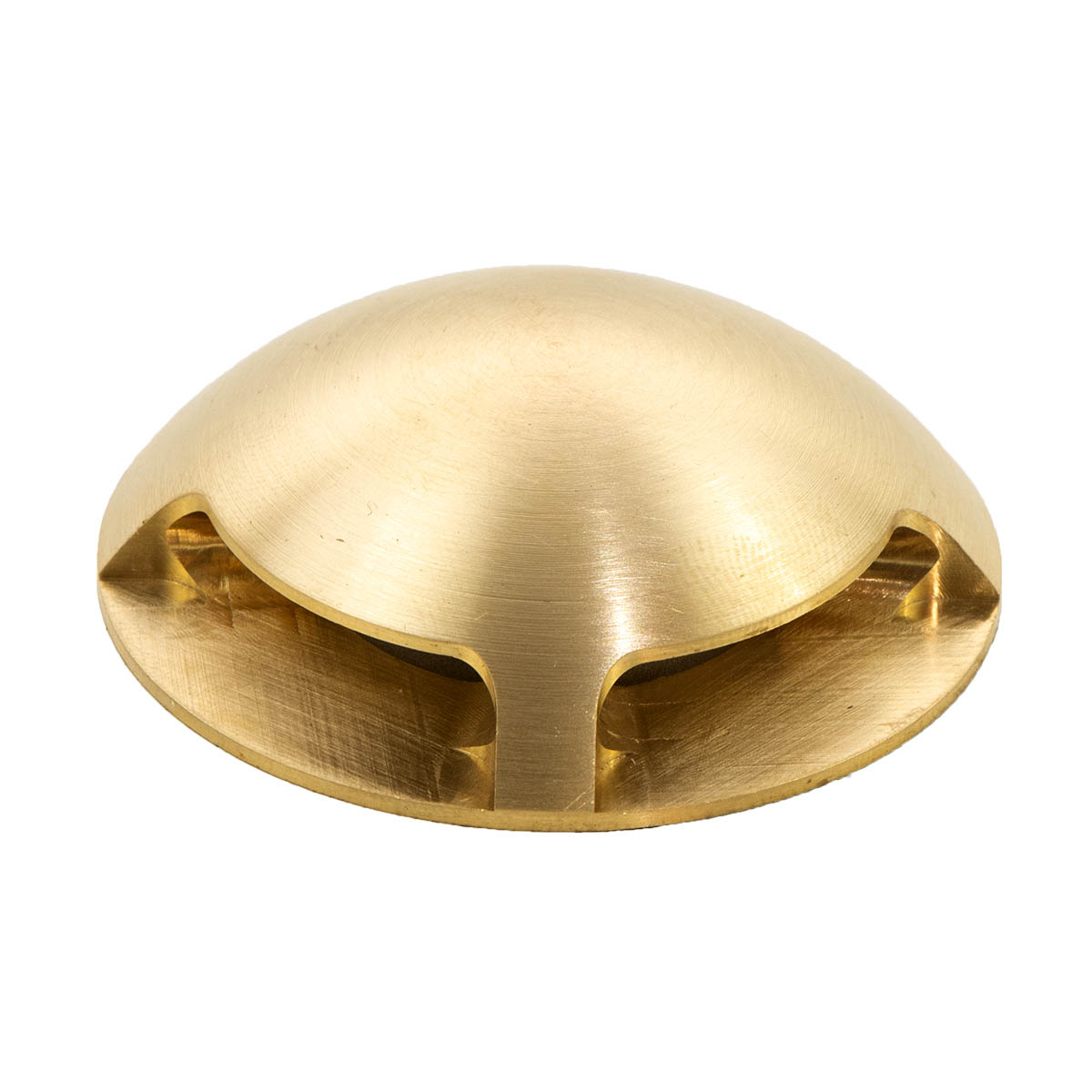

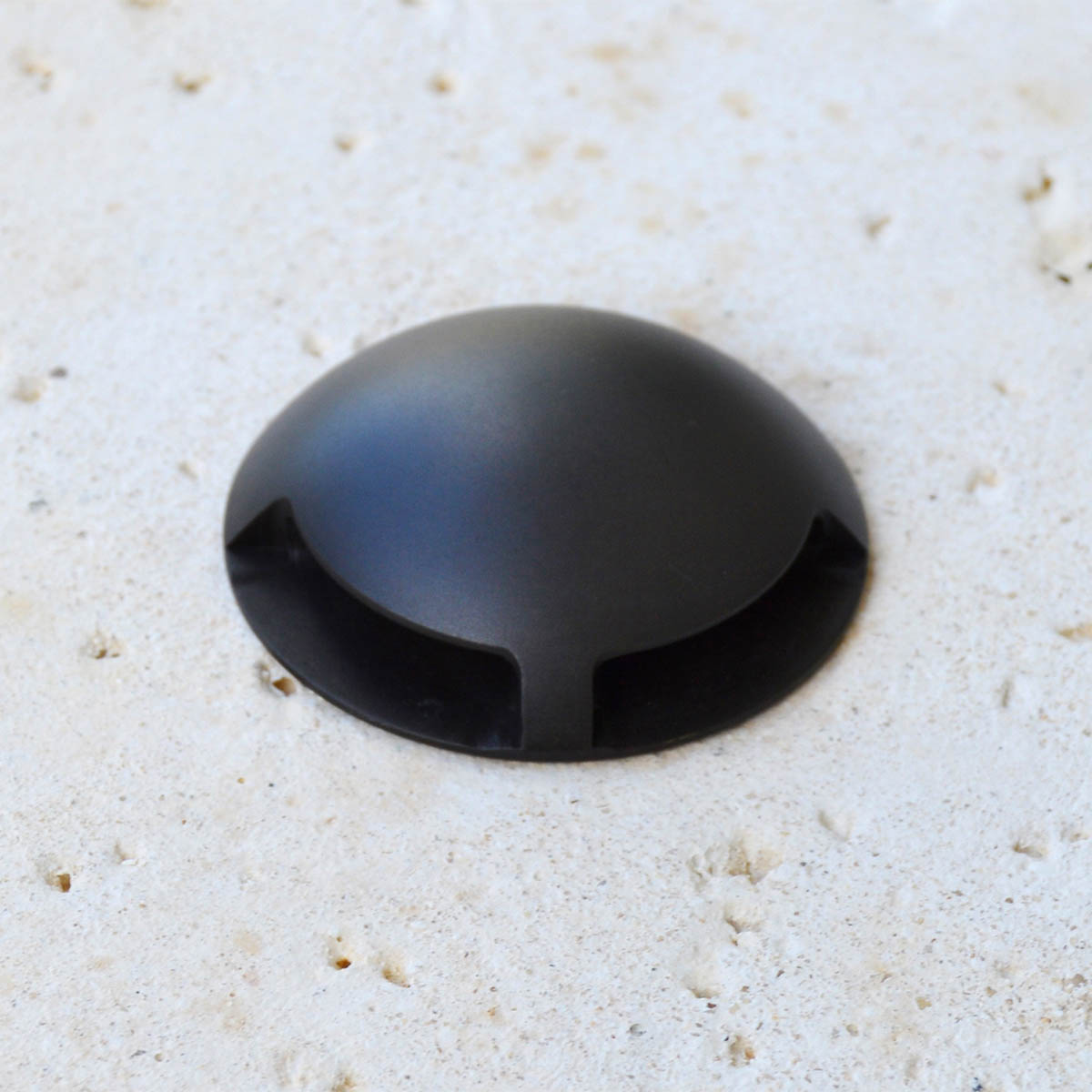

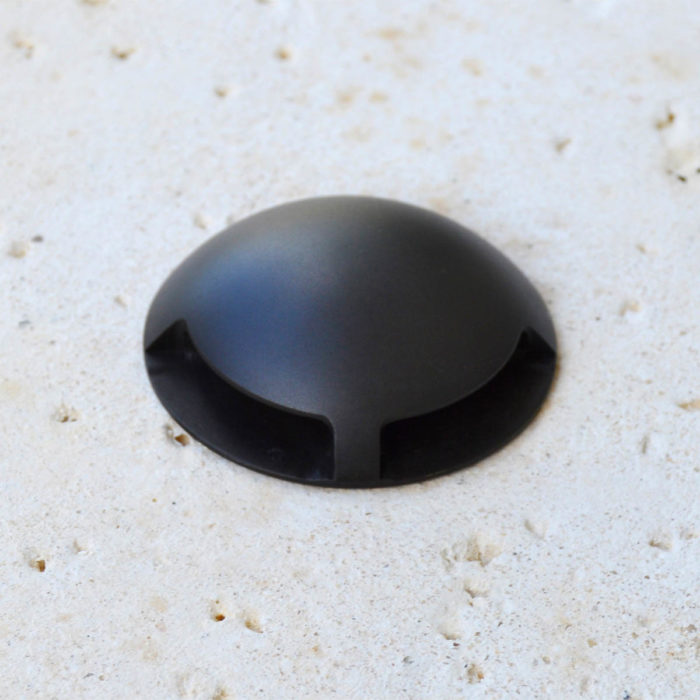

| E3-M-2 | Two-Sector, Adjacent Illumination |

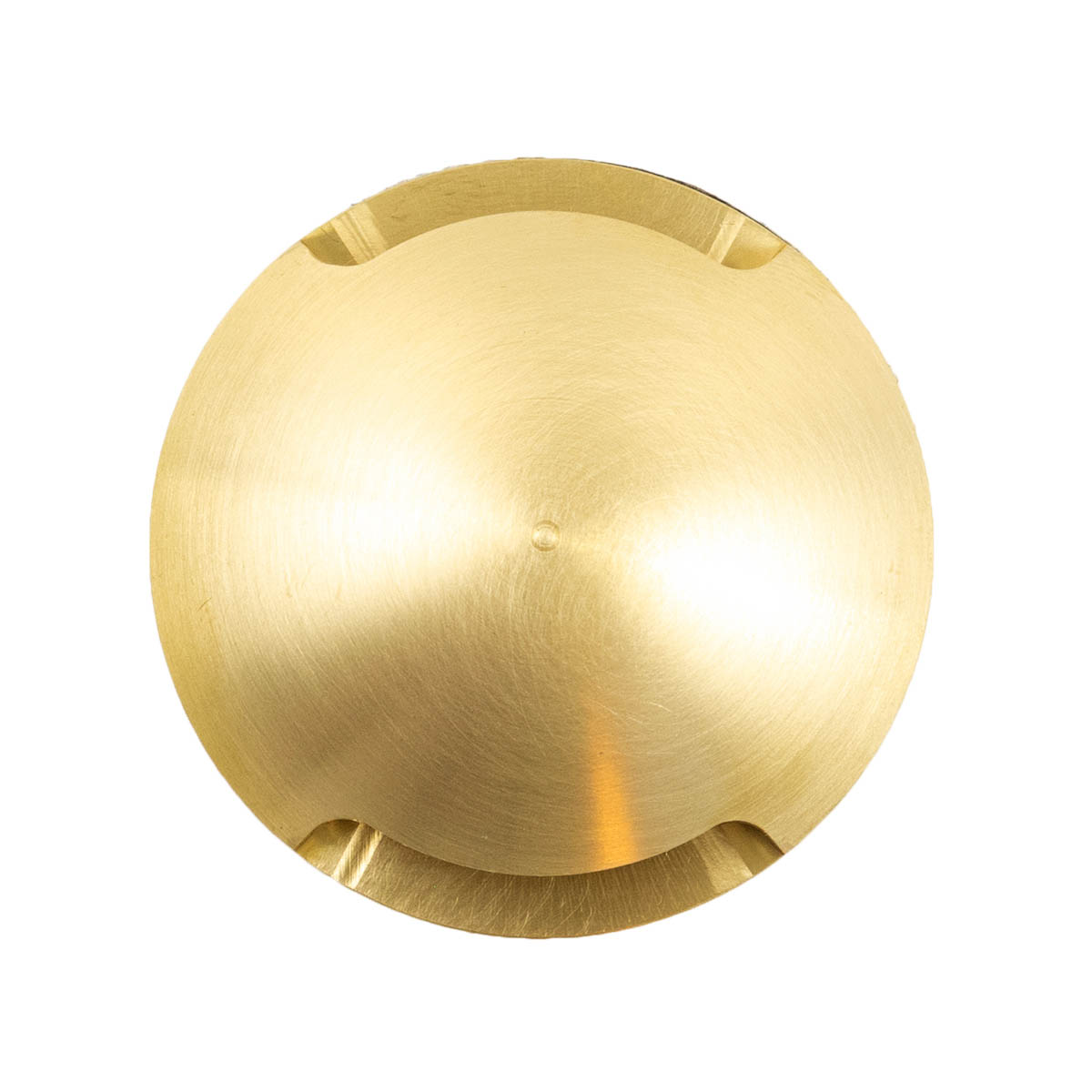

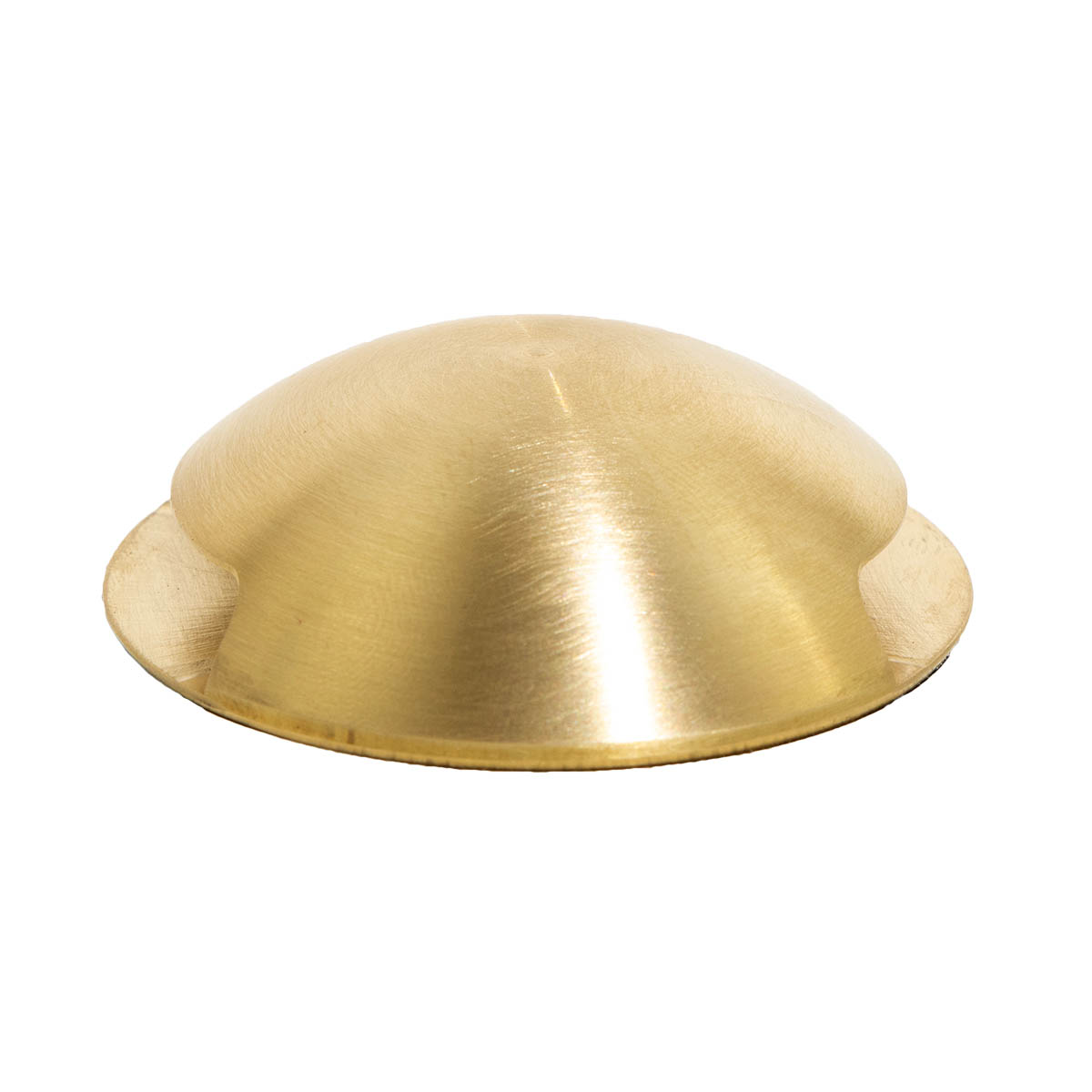

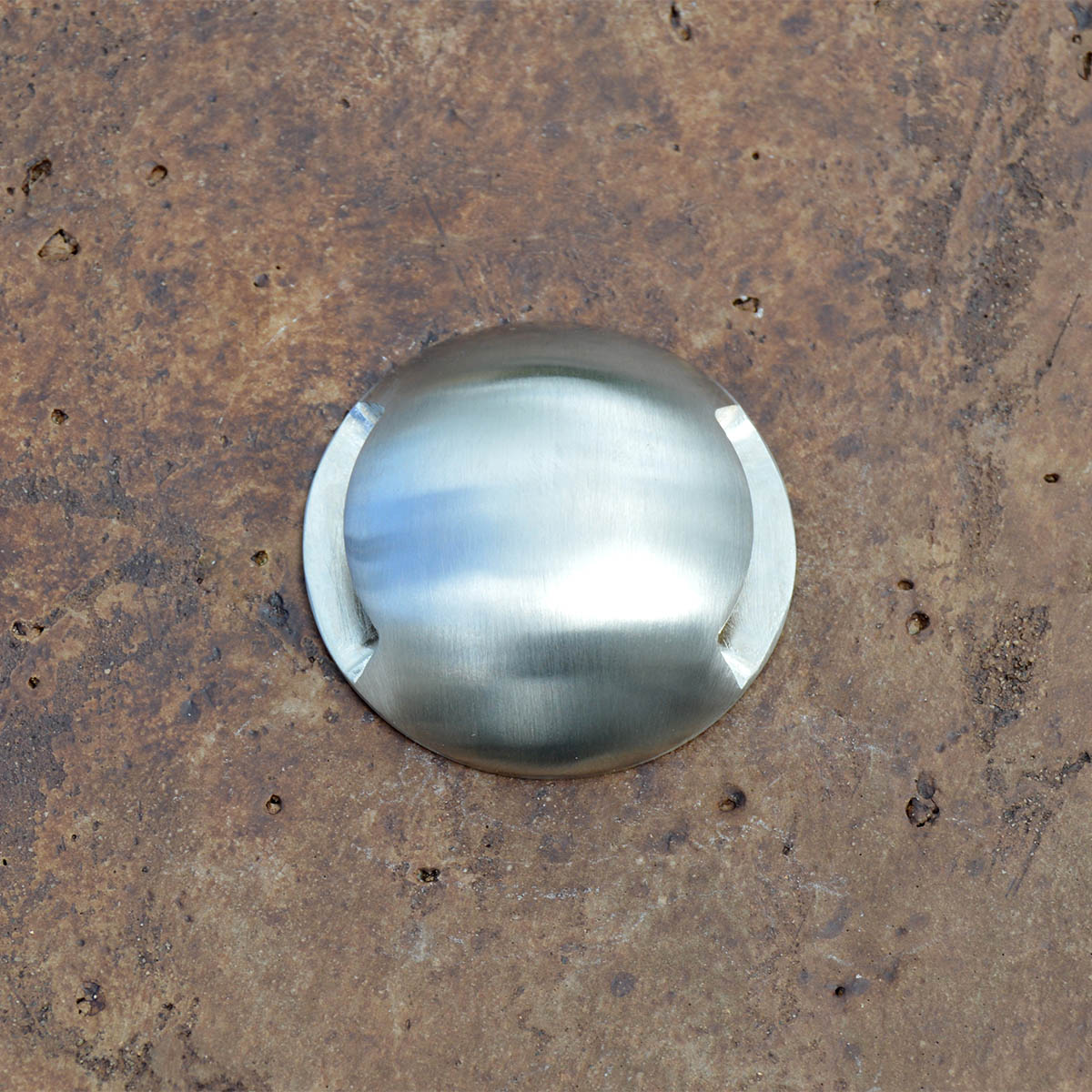

| E3-M-OP | Two-Sector, Opposite Illumination |
Specifications
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
Instructions
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ
Cree XPE2
| 2W-A-SP | 2 Watt AMBER (1500K)* TURTLE FRIENDLY |
| 2W-RO-SP | 2 Watt RED-ORANGE (1000K)* TURTLE FRIENDLY |
Cree XPG2
| 3W-SP | 3 Watt Warm White (3000K)** |
MR11 LED
Triac dimmable >25%
| 2W-A-MR11-NFL | 2 Watt AMBER (1500K)* TURTLE FRIENDLY |
| 2W-MR11-SP | 2 Watt Warm White (2700/3000K)*** |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
** Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-SP-2700K“
*** Add color suffix (“-27” for 2700K, “-30” for 3000K) to lamp specification, e.g. “2W-MR11-SP-27“
| CF (Limited Depth / Remote Splice) | Conduit Fitting (increases overall length to 4.5″ / 11.4 cm) |
| CFK | Concrete Form Kit |
| DM | Deck Mount adapter ring for wooden decks |
