E8-S2
(12V Integrated LED)

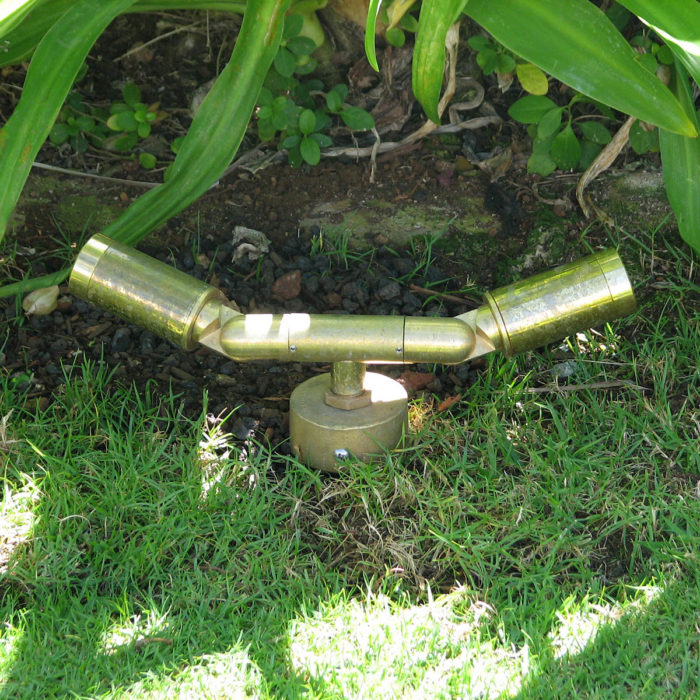

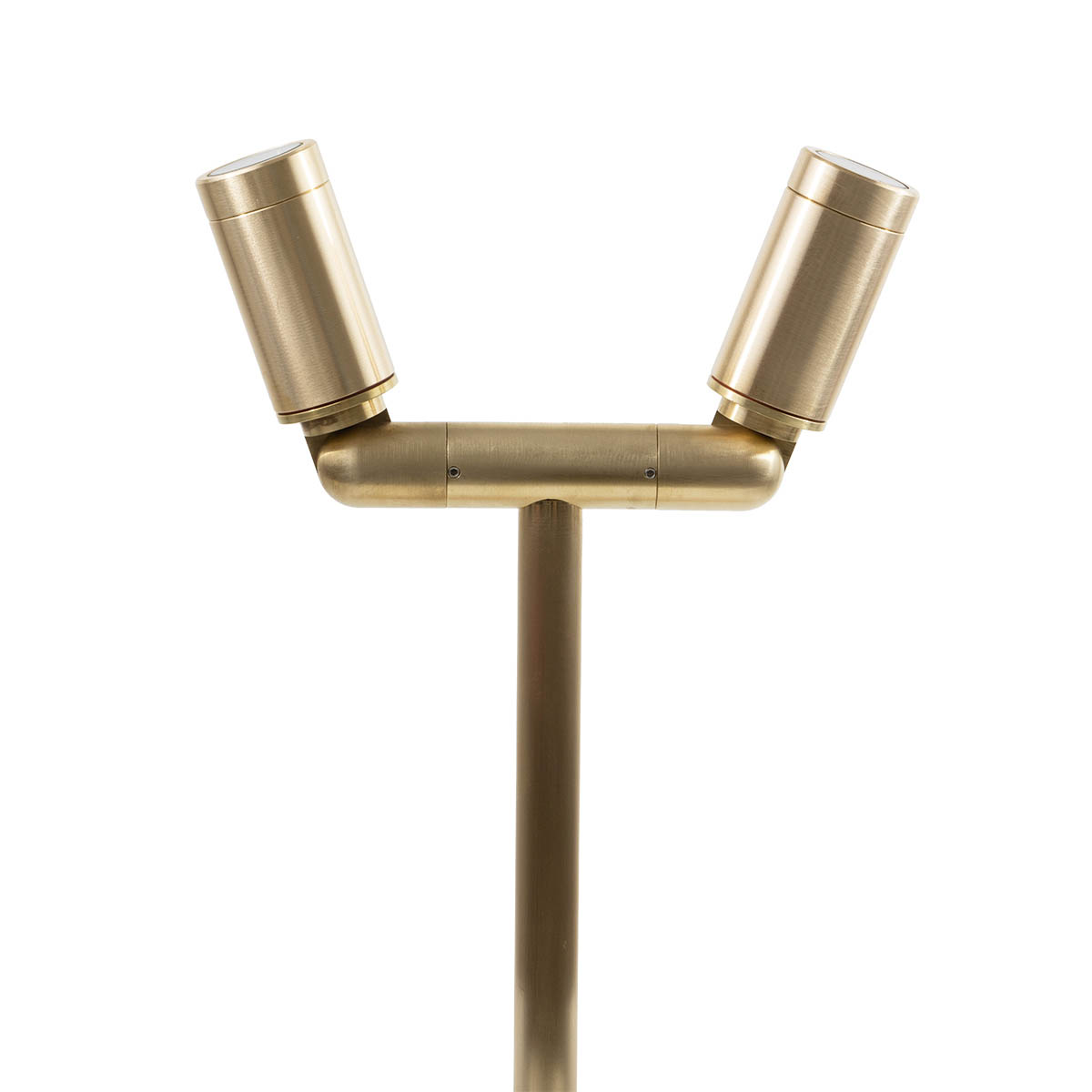

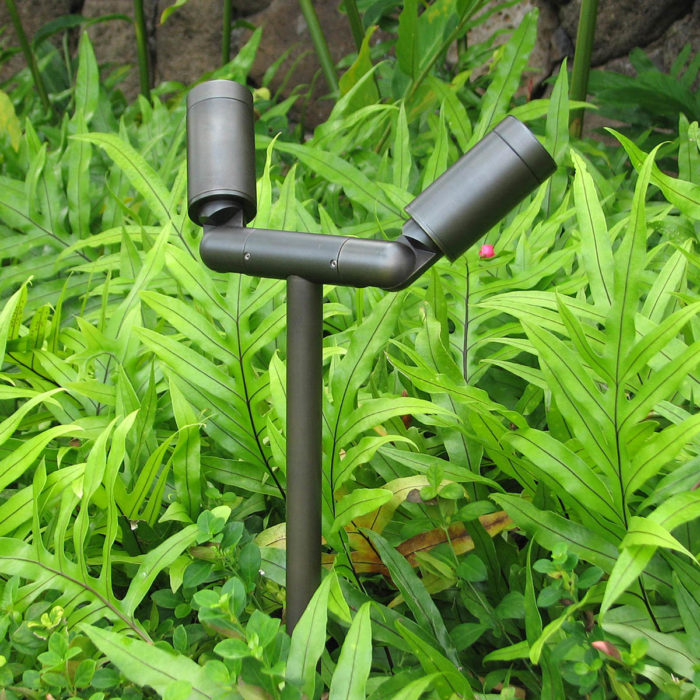

Solid Brass, Low-profile, Low-voltage Double Directional on Brass Riser
- Can be aimed up or down
- Ideal for tall groundcover
| Voltage | 12V AC with integral driver (9V-15V Input, dimmable below 9V) |
| Lamps | Integrated LED |
| Lumens | 249 |
| CCT | 1000 |
| 1500 | |
| 2700 | |
| 3000 | |
| Dimensions | Diameter: 1.6″ (4.2cm) |
| Overall length from knuckle pivot: 4.1″ (10.5cm) |
Specifications
Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Single Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
8, 12, 16, or 20” (20, 30, 40, or 51cm) and Custom
Integrated LED Light Engine
Triac dimmable: MLV >6% typ, ELV >16% typ
Cree XPE2 LED: AMBER (1500K), RED-ORANGE (1000K)
| 2W-A-SP | 2 Watt AMBER | 10° beam / 20° field angle |
| 2W-A-NFL | 2 Watt AMBER | 14° / 31° |
| 2W-A-FL | 2 Watt AMBER | 29° / 61° |
| 2W-A-NO | 2 Watt AMBER | 46° / 114° |
| 2W-RO-SP | 2 Watt RED-ORANGE | 10° / 18° |
| 2W-RO-NFL | 2 Watt RED-ORANGE | 13° / 28° |
| 2W-RO-FL | 2 Watt RED-ORANGE | 32° / 56° |
| 2W-RO-NO | 2 Watt RED-ORANGE | 49° / 114° |
Cree XPG2 LED: 3- and 4-Watt Warm White (3000K)*
| 3W-SP | 3 Watt | 13° / 24° |
| 3W-NFL | 3 Watt | 17° / 37° |
| 3W-FL | 3 Watt | 30° / 62° |
| 3W-NO | 3 Watt | 47° / 86° |
| 4W-SP | 4 Watt | 13° / 24° |
| 4W-NFL | 4 Watt | 17° / 38° |
| 4W-FL | 4 Watt | 30° / 62° |
| 4W-NO** | 4 Watt | 71° / 121° |
* Also available in 2700K. Add color suffix to lamp specification, e.g. “3W-NFL-2700K“
** When 4W lamp is specified with No Optic, only one optical accessory may be used.
| BSB | Brass surface-mounted box for concrete and wood |
| GS2 | Heavy-duty ground spike |
| GS2BC | Heavy-duty ground spike with cast brass cap |
| GS3R | Heavy-duty ground spike with brass cap for telescoping riser |
| GS4 | Standard ground spike with cast brass cap |
| JB | Cast brass junction box |

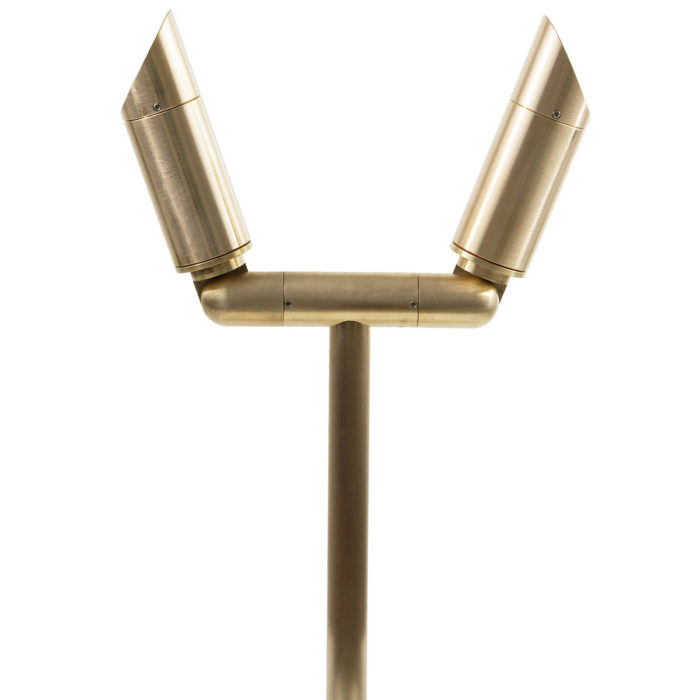

| BGS8 | Brass glare shield, 45° cutoff |
| BGS8F | Brass glare shield, full cutoff with weep hole |
| CTO-1/4-1.36 | Color Temperature Orange filter 1/4 |
| CTO-1/2-1.36 | Color Temperature Orange filter 1/2 |
| CTO-3/4-1.36 | Color Temperature Orange filter 3/4 |
| FR8 | Frosted lens, 1/8″ (3mm) thick |
| HL8 | Honeycomb louver, 1/8” (3mm) thick |
| KP | Extended snoot (no weep hole) for DOWNLIGHTING only |
| PR8 | Prismatic spread lens, 1/8” (3mm) thick |
| RT8 | Rectilinear spread lens, 1/8” (3mm) thick |
| SL8 | Solite (Soft Focus) lens, 1/8” (3mm) thick |
Watch a video about the E8 fixture:
