E16-S2
(12V Integrated LED)

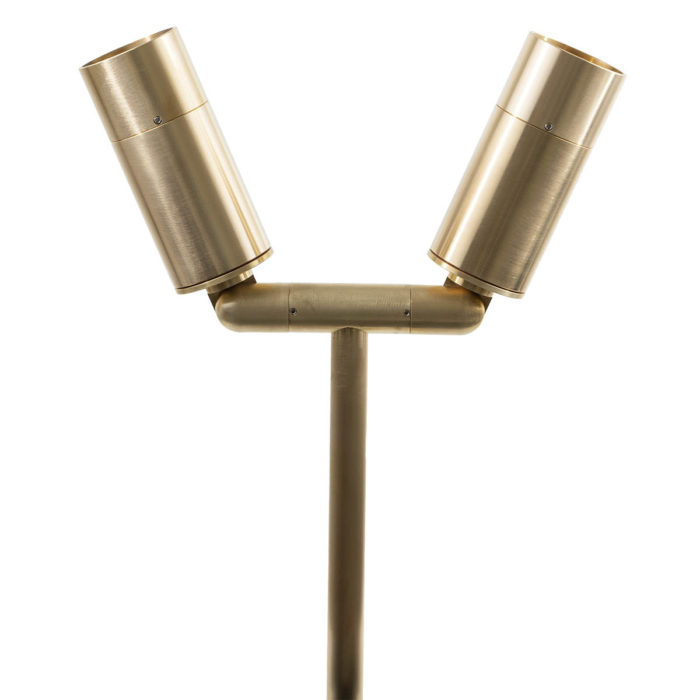

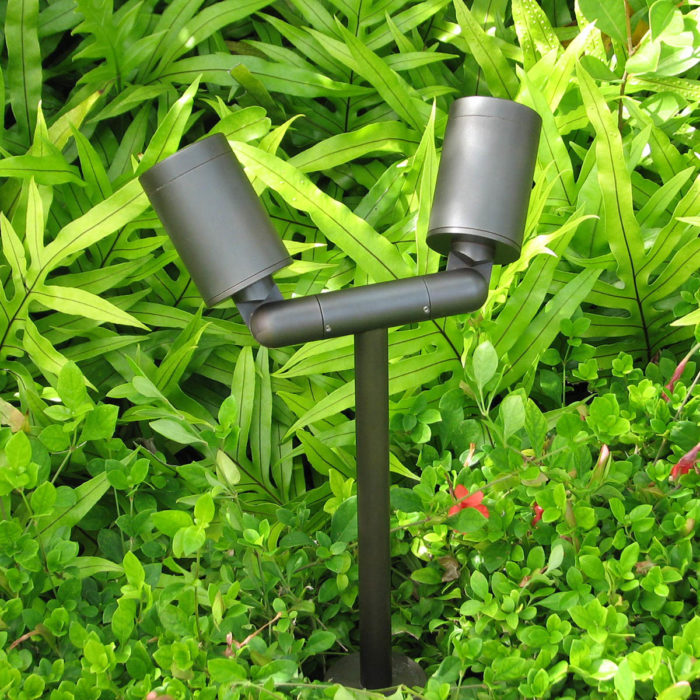

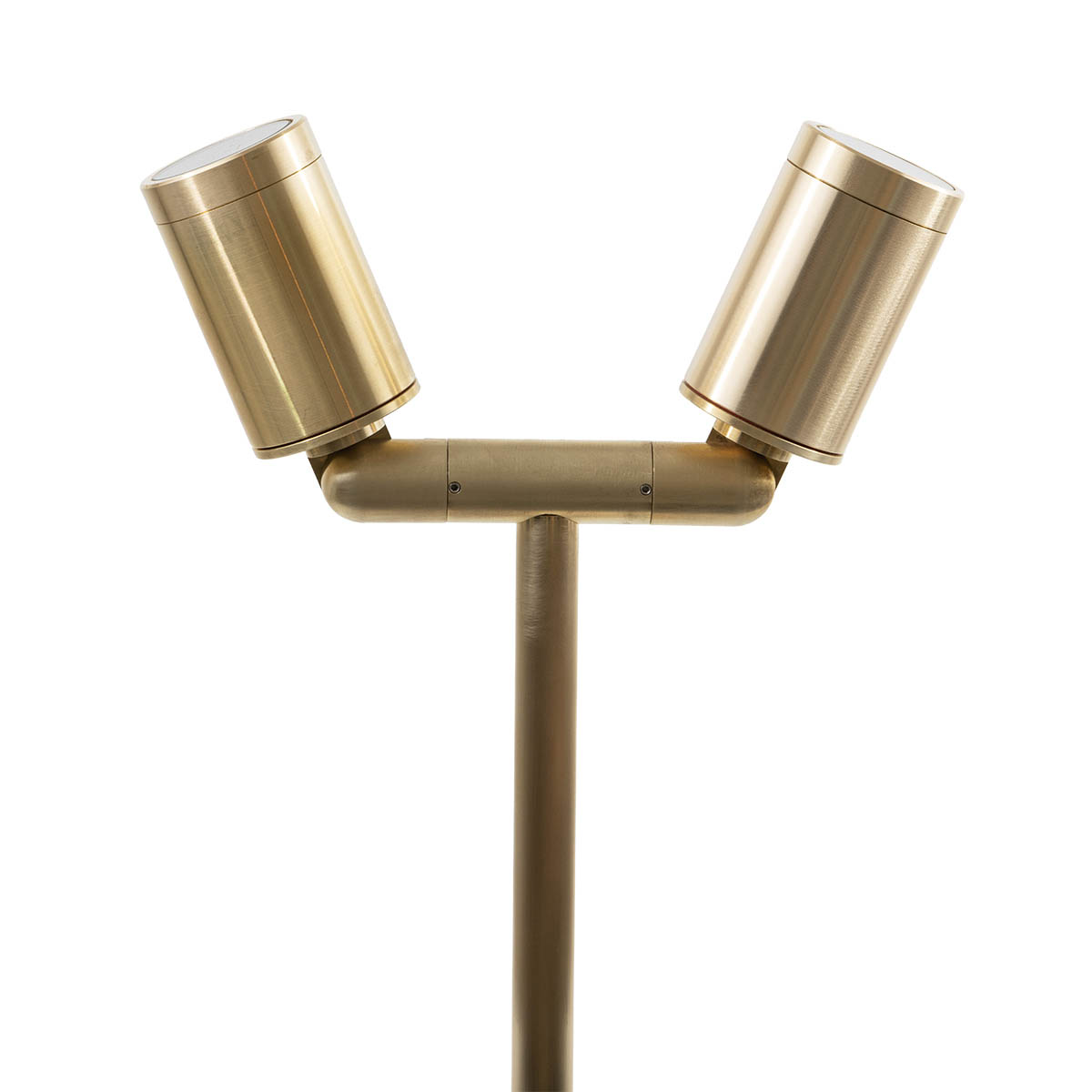

Solid Brass, All-purpose, Low-voltage LED Double Directional on Brass Riser
The E16-S is a low-voltage, double-directional luminaire with integrated, replaceable LED light engines. The light engines features four output settings from 100% to 25%, adjustable in the field.
- Can be aimed up or down
- Ideal for tall groundcover
- Remote transformer required.
| Voltage | 12V AC/DC with integral driver (9V-15V Input, dimmable below 9V) |
| Lamps | Integrated LED |
| Lumens | 799 max |
| CCT | 1000K (Red-Orange, 630nm) |
| 1500K (Amber, 595nm) | |
| 2700K | |
| 3000k | |
| Dimensions | Diameter: 2.4″ (6 cm) |
| Overall length from knuckle pivot: 4.9″ (12.4 cm) |
Specifications
Instructions
Dimmer / Transformer Compatibility
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Triple Chip Light Engine
LED Light Engine Thermal Test Report for Hot Tropical & Desert Climates
8, 12, 16, or 20” (20, 30, 40, or 51cm) and Custom
Integrated triple LED Light Engine
Triac dimmable: MLV >1% typ, ELV >5% typ
Triac dimmable: MLV >1% typ, ELV >5% typ
Cree XPE2: AMBER (1500K), RED-ORANGE (1000K)
| 7W-A-SP | 7 Watt Amber | 10° spot |
| 7W-A-NFL | 7 Watt Amber | 30° narrow flood |
| 7W-A-FL | 7 Watt Amber | 60° flood |
| 8W-RO-SP | 8 Watt Red-Orange | 10° spot |
| 8W-RO-NFL | 8 Watt Red-Orange | 30° narrow flood |
| 8W-RO-FL | 8 Watt Red-Orange | 60° flood |
Cree XPG2 LED: 11-Watt Warm White, adjustable output
2700K
| 11W-827-SP | 11 Watt | 10° spot |
| 11W-827-NFL | 11 Watt | 30° narrow flood |
| 11W-827-FL | 11 Watt | 60° flood |
3000K
| 11W-830-SP | 11 Watt | 10° spot |
| 11W-830-NFL | 11 Watt | 30° narrow flood |
| 11W-830-FL | 11 Watt | 60° flood |
Cree XPG3 LED: High CRI 11-Watt Warm White, adjustable output
2700K
| 11W-927-SP | 11 Watt | 10° spot |
| 11W-927-NFL | 11 Watt | 30° narrow flood |
| 11W-927-FL | 11 Watt | 60° flood |
3000K
| 11W-930-SP | 11 Watt | 10° spot |
| 11W-930-NFL | 11 Watt | 30° narrow flood |
| 11W-930-FL | 11 Watt | 60° flood |
| BSB | Brass surface-mounted box for concrete and wood |
| GS2 | Heavy-duty ground spike |
| GS2BC | Heavy-duty ground spike with cast brass cap |
| GS3R | Heavy-duty ground spike with brass cap for telescoping riser |
| GS4 | Standard ground spike with cast brass cap |
| JB | Cast brass junction box |
| BGS | Brass glare shield, 45° cutoff |
| BGSF | Brass glare shield, full cutoff with weep hole |
| CTO-1/4-2.04 | Color Temperature Orange filter 1/4 |
| CTO-1/2-2.04 | Color Temperature Orange filter 1/2 |
| CTO-3/4-2.04 | Color Temperature Orange filter 3/4 |
| FR | Frosted lens, 1/8” (3mm) thick |
| HL1 | Honeycomb louver, 1/8” (3mm) thick |
| HL2 | Honeycomb louver, 1/4” (6mm) thick |
| KP | Extended snoot (no weep hole) for DOWNLIGHTING only |
| PR | Prismatic spread lens, 1/8” (3mm) thick |
| RT | Rectilinear spread lens, 1/8” (3mm) thick |
| SL | Solite (Soft Focus) lens, 1/8” (3mm) thick |
