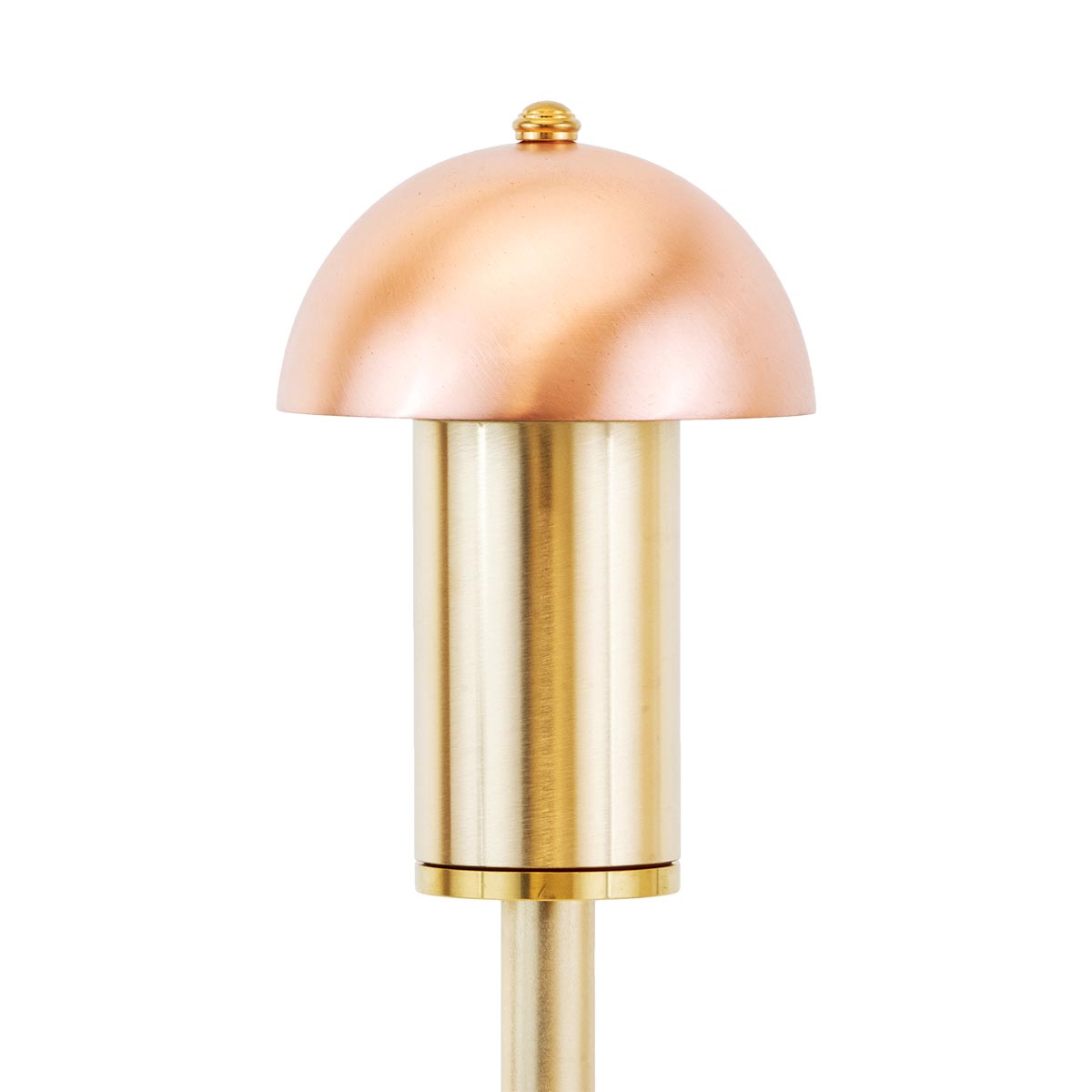

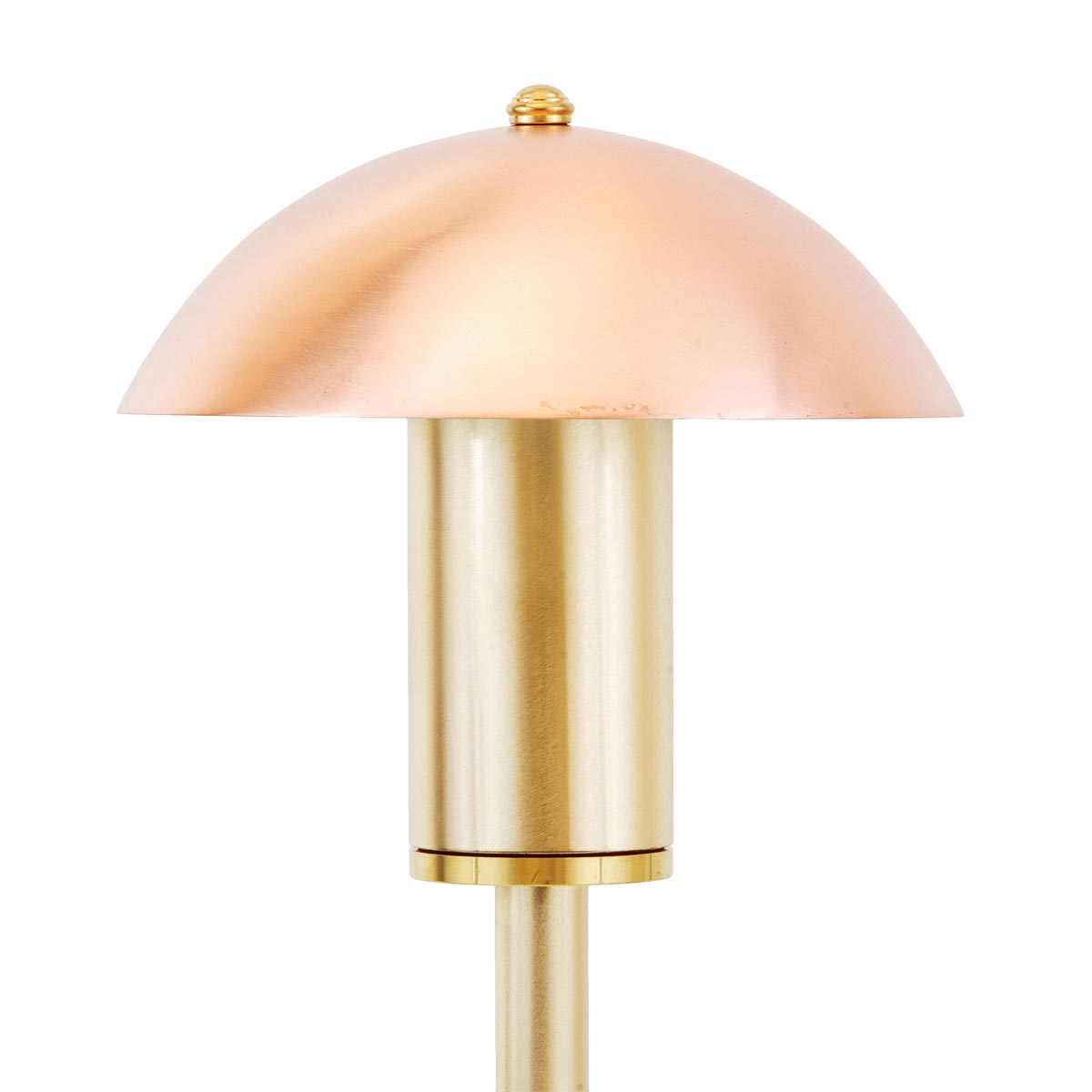

Beachside Lighting’s R-Series LED Pathlights have set the standard for durability in low-voltage walkway and area lighting. The completely sealed fixture allows easy access to the brass lamp compartment for tool-free relamping. Features include an 18-gauge copper shade, a 5 mm-thick frosted glass lens, and a riser made from schedule 40 brass pipe. The lamping is MR16 LED, allowing both 12V and 120V/230V options. The upward-directed lamp hits a reflector in the shade assembly. Most shade heights are positioned so their lower edge is at the bottom of the glass, resulting in low-to-no glare.
All fixtures are CSA Listed to US and Canadian safety standards, file #190030.
- Durable construction: all brass components and copper shades
| Voltage | 12V, 120V, 230V |
| Lamps | LED |
| CCT | 1000K |
| 1500K | |
| 2700K | |
| 3000K |

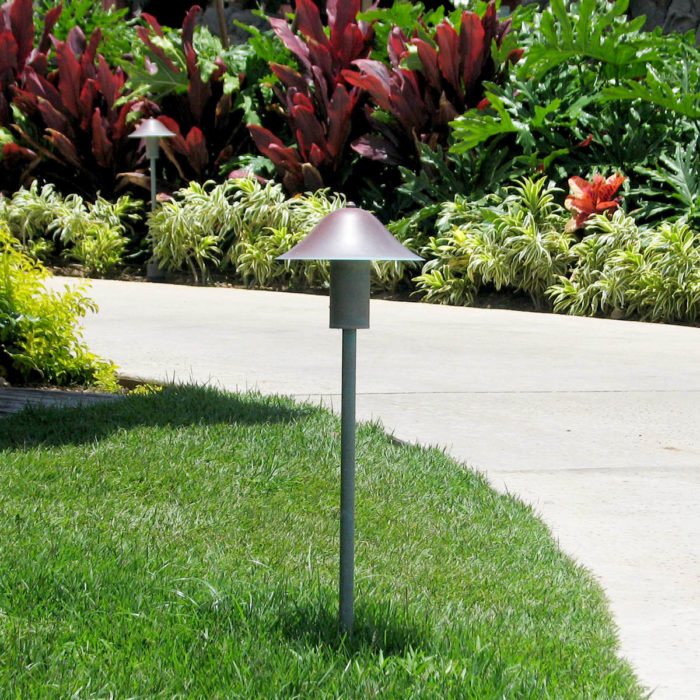

R3 Specifications

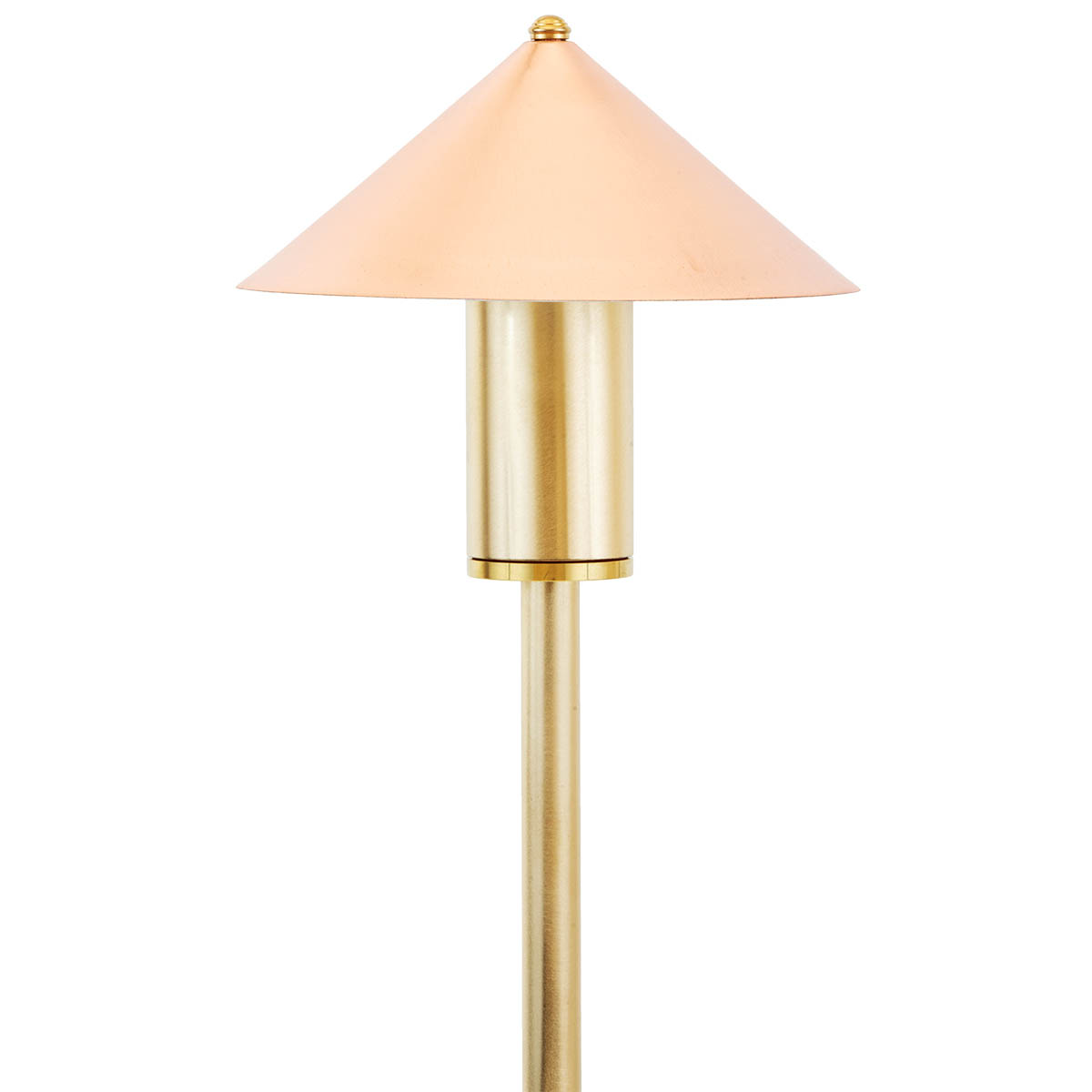

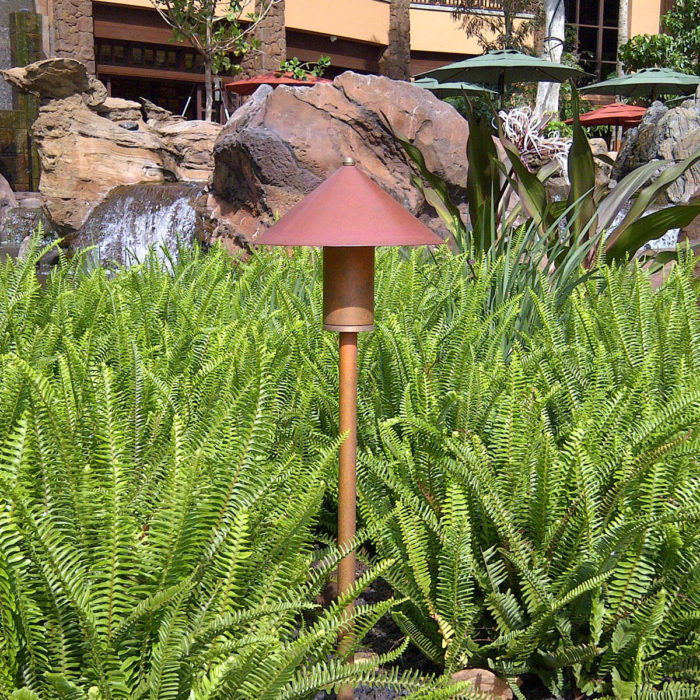

R3A Specifications
R5 Specifications
R5A Specifications
R7 Specifications

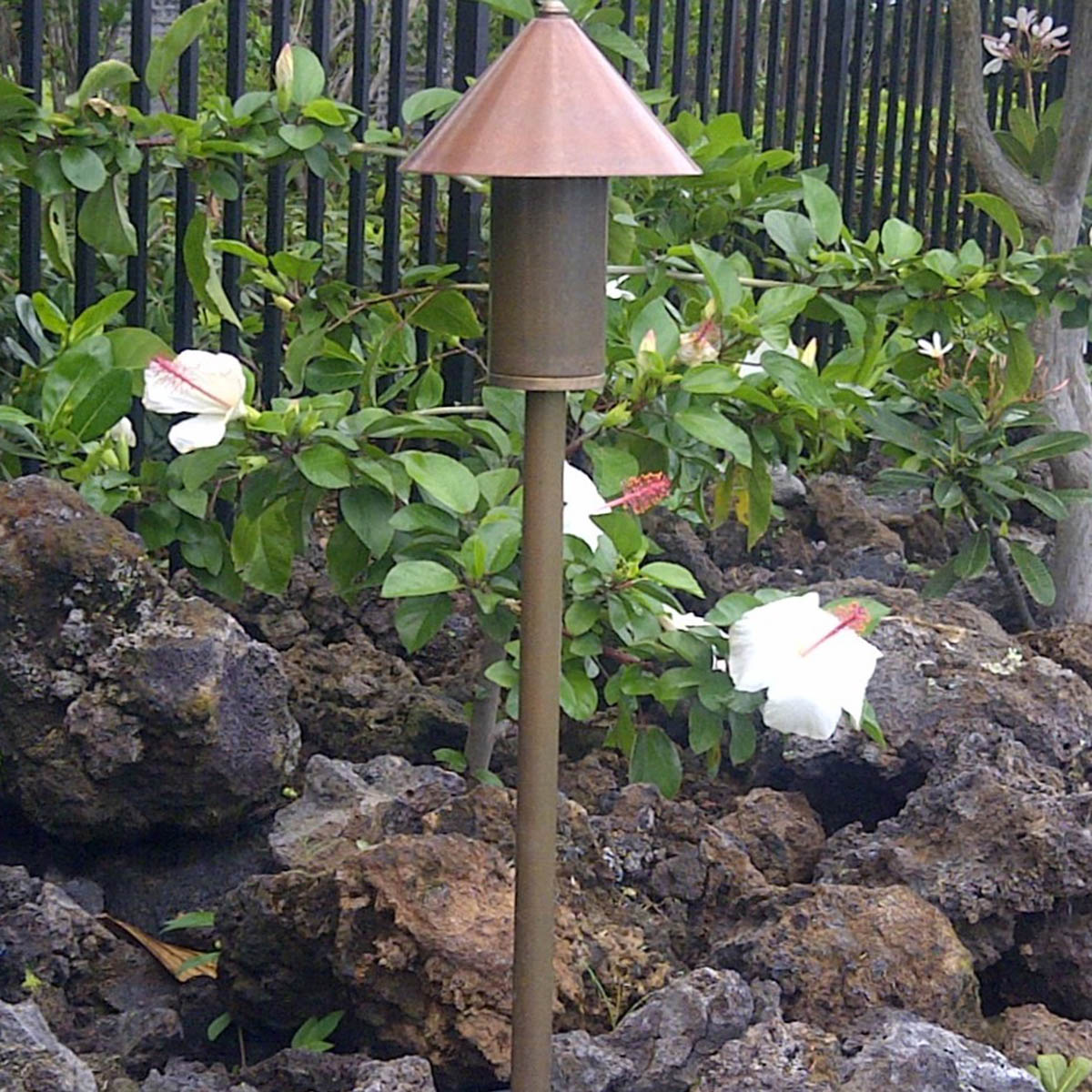

R8 Specifications
R8-SQMOD Specifications

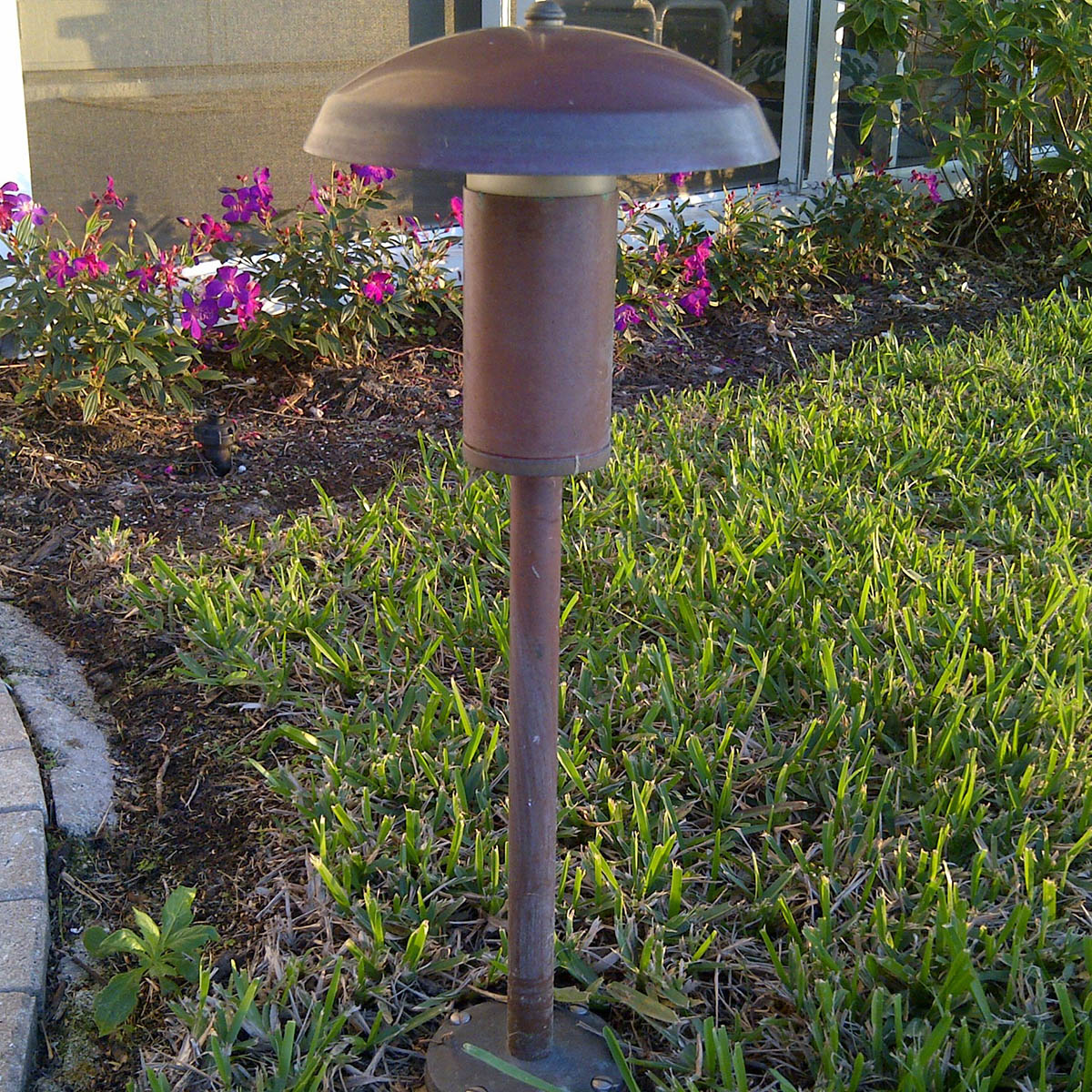

R19 Specifications
12V Instructions
120V Instructions
5W MR16 Specs and Transformer/Dimmer Compatibility
120V 5W MR16 Specs and Transformer/Dimmer Compatibility
8W MR16 High Lumen Specifications
8W MR16 High Lumen Transformer/Dimmer Compatibility – North America
120V 8W MR16 High Lumen Specifications
120V 8W MR16 High Lumen Transformer/Dimmer Compatibility – North America
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt Triple Chip Light Engine
DALI Dimming with Meanwell PWM-120-12DA Power Supply – 12 Volt GU5.3 MR16 LED
| 2″ | |
| 8″ | |
| 12″ | Standard |
| 16″ | |
| 20″ |
| 5W-A-NFL | 5 Watt AMBER (1500K)* TURTLE FRIENDLY |
| 5W-NFL-27 | 5 Watt Warm White (2700K) |
| 5W-NFL-30 | 7 Watt Warm White (3000K) |
| 8W-NFL-27 | 8 Watt Warm White (2700K) |
| 8W-NFL-30 | 8 Watt Warm White (3000K) |
Triple LED module • Remote transformer required
| 7W-A | 7 Watt AMBER (1500K)* TURTLE FRIENDLY |
| 8W-RO | 8 Watt RED-ORANGE (1000K)* TURTLE FRIENDLY |
| 11W-827 | 11 Watt Warm White (2700K) |
| 11W-830 | 11 Watt Warm White (3000K) |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
| 5W-A-NFL-120V | 5 Watt AMBER (1500K)* TURTLE FRIENDLY |
| 5W-NFL-27-120V | 5 Watt Warm White (2700K) |
| 5W-NFL-30-120V | 5 Watt Warm White (3000K) |
| 8W-NFL-27-120V | 8 Watt Warm White (2700K) |
| 8W-NFL-30-120V | 8 Watt Warm White (3000K) |
* Wildlife Lighting / Turtle Friendly as Approved by Florida Fish & Wildlife Conservation Commission
| HSR | Half shield for 180° illumination |
| BSB | Brass Surface Box for concrete or wood surface-mount applications |
| GS2 | Heavy-duty ground spike |
| GS2BC | Heavy-duty ground spike with cast brass cap |
| GS3R | Heavy-duty ground spike with brass cap for telescoping riser |
| GS4 | Standard ground spike with cast brass cap |
| JB | Cast brass junction box |
